alloc.h File Reference

Memory allocation API, zones, heaps, and alignment utilities. More...

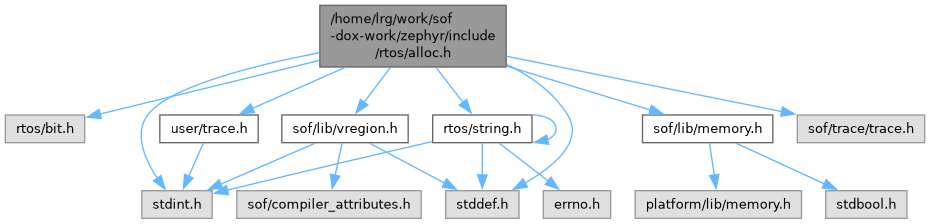

Include dependency graph for alloc.h:

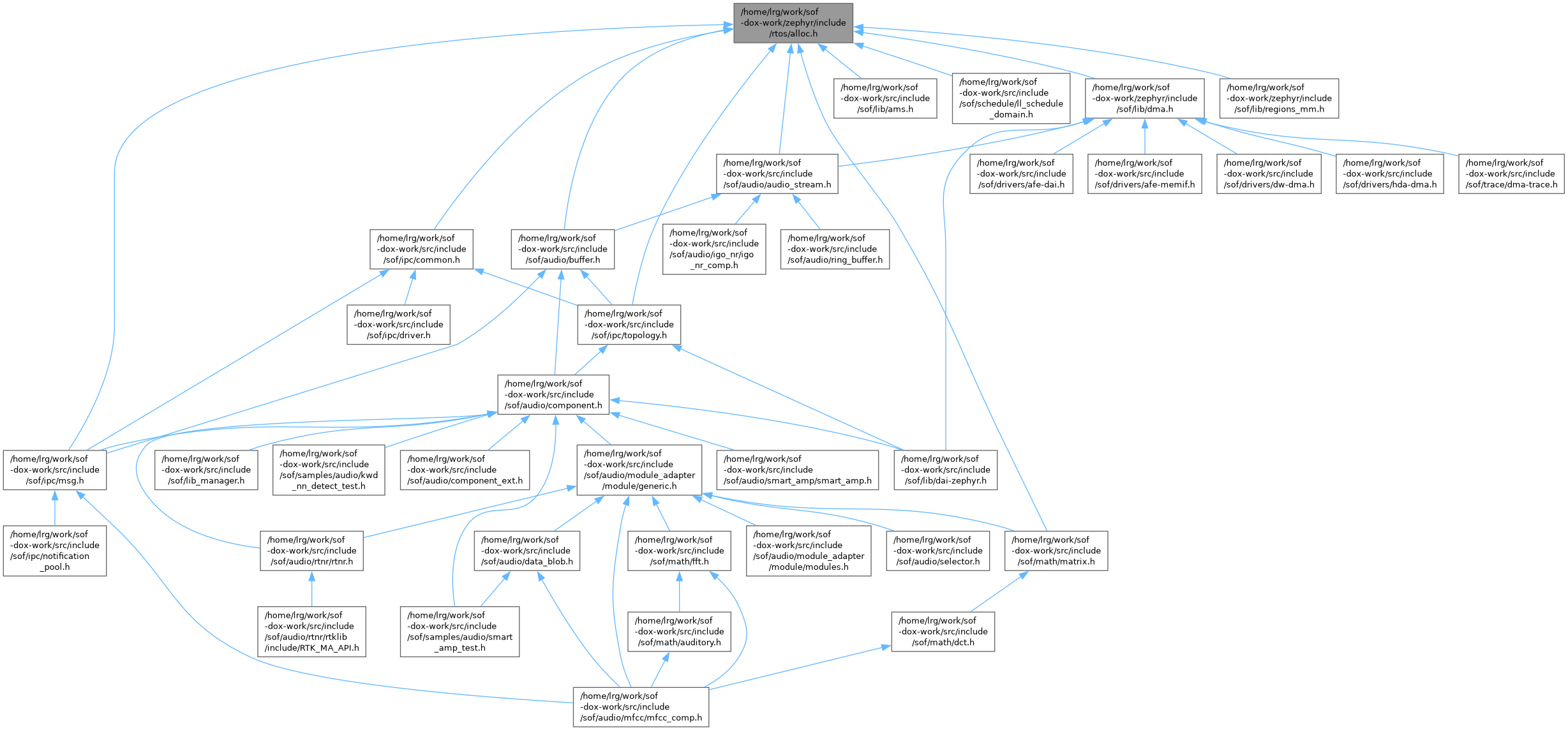

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	mod_alloc_ctx
	Module and pipeline allocation context aggregating a Zephyr heap and optional virtual region. More...

Macros
Allocation flags
#define	SOF_MEM_FLAG_DMA   BIT(2)
	Allocate memory accessible by DMA controllers (e.g.
#define	SOF_MEM_FLAG_NO_COPY   BIT(3)
	realloc() skips copying the original content.
#define	SOF_MEM_FLAG_COHERENT   BIT(4)
	Allocate uncached / coherent memory address.
#define	SOF_MEM_FLAG_L3   BIT(5)
	Allocate from L3 address space (IMR / external DRAM heap).
#define	SOF_MEM_FLAG_LOW_POWER   BIT(6)
	Allocate Low power memory address.
#define	SOF_MEM_FLAG_KERNEL   BIT(7)
	Base allocation flag denoting memory allocated for kernel-space data structures.
#define	SOF_MEM_FLAG_USER   BIT(8)
	Base allocation flag denoting memory allocated for user-space threads and module execution.
#define	SOF_MEM_FLAG_USER_SHARED_BUFFER   BIT(9)
	Allocate from shared user memory heap (shared_buffer_heap) accessible across user/kernel domains.
#define	SOF_MEM_FLAG_LARGE_BUFFER   BIT(10)
	Route allocation to the Virtual Memory Heap (VMH / virtual_buffers_heap) for large stream buffers.

Functions
void *	rmalloc_align (uint32_t flags, size_t bytes, uint32_t alignment)
	Allocate memory block with explicit alignment and heap selection flags.
void *	rmalloc (uint32_t flags, size_t bytes)
	Allocate memory block with default natural alignment.
void *	rzalloc (uint32_t flags, size_t bytes)
	Allocate zero-initialized memory block with default natural alignment.
void *	rballoc_align (uint32_t flags, size_t bytes, uint32_t alignment)
	Allocate runtime stream buffer with explicit alignment.
static void *	rballoc (uint32_t flags, size_t bytes)
	Allocate runtime stream buffer aligned to platform data cache line size.
void	rfree (void *ptr)
	Free memory block allocated by SOF RTOS allocators.
void	l3_heap_save (void)
	Save and flush L3 heap state and metadata across DSP reset or power gating.
void *	sof_heap_alloc (struct k_heap *heap, uint32_t flags, size_t bytes, size_t alignment)
	Allocate memory from a specified Zephyr heap or default system heap.
void	sof_heap_free (struct k_heap *heap, void *addr)
	Free memory allocated via sof_heap_alloc().
struct k_heap *	sof_sys_heap_get (void)
	Get the system kernel heap descriptor.
struct k_heap *	sof_sys_user_heap_get (void)
	Get the heap object to use for audio application allocations.
static void	heap_trace_all (int force)
	Trace and log memory allocation statistics across all active heaps.
uintptr_t	get_shared_buffer_heap_start (void)
	Returns the start address of shared memory heap for buffers.
size_t	get_shared_buffer_heap_size (void)
	Returns the total size of shared memory heap for buffers.
static void *	sof_ctx_alloc (struct mod_alloc_ctx *ctx, uint32_t flags, size_t size, size_t alignment)
	Allocate memory from an allocation context.
static void *	sof_ctx_zalloc (struct mod_alloc_ctx *ctx, uint32_t flags, size_t size, size_t alignment)
	Allocate zero-initialized memory from an allocation context.
static void	sof_ctx_free (struct mod_alloc_ctx *ctx, void *ptr)
	Free memory allocated from an allocation context.

Detailed Description

Memory allocation API, zones, heaps, and alignment utilities.
