audio_buffer.h File Reference

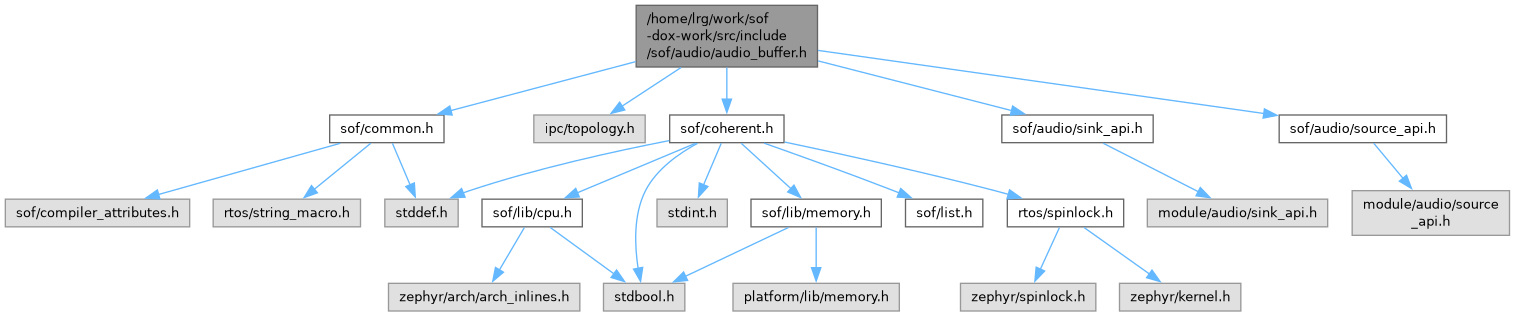

Include dependency graph for audio_buffer.h:

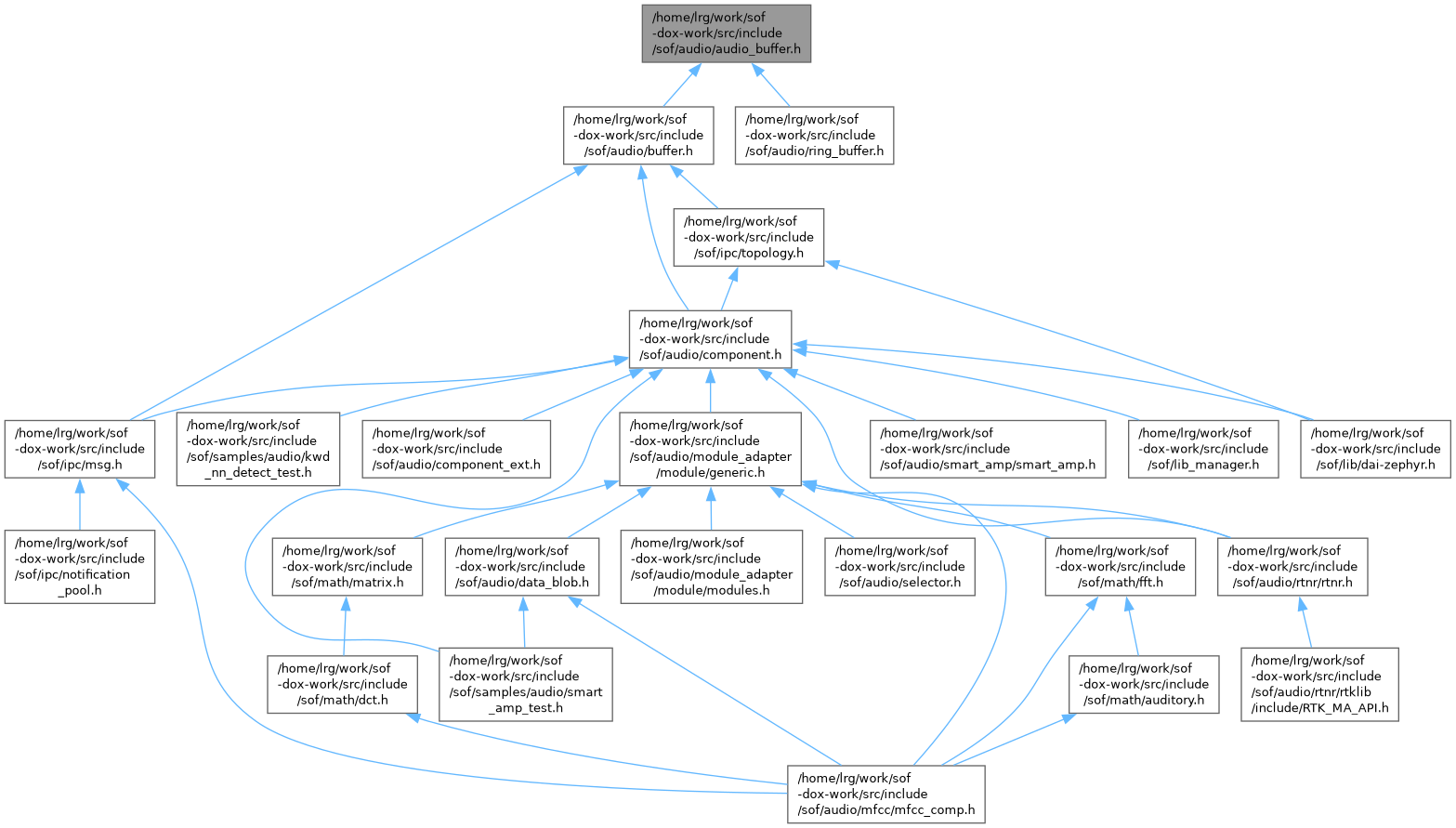

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	audio_buffer_ops
struct	sof_audio_buffer

Macros
#define	BUFFER_TYPE_LEGACY_BUFFER   1
#define	BUFFER_TYPE_RING_BUFFER   2

Functions
static struct sof_sink *	audio_buffer_get_sink (struct sof_audio_buffer *buffer)
	return a handler to sink API of audio_buffer.
static struct sof_source *	audio_buffer_get_source (struct sof_audio_buffer *buffer)
	return a handler to source API of audio_buffer the handler may be used by helper functions defined in source_api.h
static bool	audio_buffer_is_shared (struct sof_audio_buffer *buffer)
static bool	audio_buffer_hw_params_configured (struct sof_audio_buffer *buffer)
static void	audio_buffer_set_hw_params_configured (struct sof_audio_buffer *buffer)
static void	audio_buffer_reset_params (struct sof_audio_buffer *buffer)
static enum sof_audio_buffer_state	audio_buffer_get_state (const struct sof_audio_buffer *buffer)
static void	audio_buffer_set_state (struct sof_audio_buffer *buffer, enum sof_audio_buffer_state state)
static void	audio_buffer_set_eos (struct sof_audio_buffer *buffer)
static uint16_t	audio_buffer_get_chmap (struct sof_audio_buffer *buffer, size_t index)
static void	audio_buffer_set_chmap (struct sof_audio_buffer *buffer, size_t index, uint16_t value)
static struct sof_audio_stream_params *	audio_buffer_get_stream_params (struct sof_audio_buffer *buffer)
	return a handler to stream params structure
static struct sof_audio_buffer *	sof_audio_buffer_from_sink (struct sof_sink *sink)
	return a pointer to struct sof_audio_buffer from sink pointer NOTE!
static struct sof_audio_buffer *	sof_audio_buffer_from_source (struct sof_source *source)
	return a pointer to struct sof_audio_buffer from source pointer NOTE!
void	audio_buffer_init (struct sof_audio_buffer *buffer, uint32_t buffer_type, bool is_shared, const struct source_ops *source_ops, const struct sink_ops *sink_ops, const struct audio_buffer_ops *audio_buffer_ops, struct sof_audio_stream_params *audio_stream_params)
	initialize audio buffer structures
void	audio_buffer_free (struct sof_audio_buffer *buffer)
	free buffer and all allocated resources
static void	audio_buffer_reset (struct sof_audio_buffer *buffer)
	clean all buffer data, set buffer positions to initial, leaving config as is the procedure is to be called only when buffer is not in use
int	audio_buffer_source_set_ipc_params (struct sof_source *source, struct sof_ipc_stream_params *params, bool force_update)
int	audio_buffer_source_on_audio_format_set (struct sof_source *source)
int	audio_buffer_source_set_alignment_constants (struct sof_source *source, const uint32_t byte_align, const uint32_t frame_align_req)
int	audio_buffer_sink_set_ipc_params (struct sof_sink *sink, struct sof_ipc_stream_params *params, bool force_update)
int	audio_buffer_sink_on_audio_format_set (struct sof_sink *sink)
int	audio_buffer_sink_set_alignment_constants (struct sof_sink *sink, const uint32_t byte_align, const uint32_t frame_align_req)
uint32_t	audio_buffer_sink_get_lft (struct sof_sink *sink)

Macro Definition Documentation

BUFFER_TYPE_LEGACY_BUFFER

#define BUFFER_TYPE_LEGACY_BUFFER   1

BUFFER_TYPE_RING_BUFFER

#define BUFFER_TYPE_RING_BUFFER   2

Function Documentation

audio_buffer_free()

void audio_buffer_free

(

struct sof_audio_buffer *

buffer

)

free buffer and all allocated resources

audio_buffer_get_chmap()

uint16_t audio_buffer_get_chmap ( struct sof_audio_buffer * buffer, size_t index )

inlinestatic

audio_buffer_get_sink()

struct sof_sink * audio_buffer_get_sink ( struct sof_audio_buffer * buffer )

inlinestatic

return a handler to sink API of audio_buffer.

the handler may be used by helper functions defined in sink_api.h

audio_buffer_get_source()

struct sof_source * audio_buffer_get_source ( struct sof_audio_buffer * buffer )

inlinestatic

return a handler to source API of audio_buffer the handler may be used by helper functions defined in source_api.h

audio_buffer_get_state()

enum sof_audio_buffer_state audio_buffer_get_state ( const struct sof_audio_buffer * buffer )

inlinestatic

audio_buffer_get_stream_params()

struct sof_audio_stream_params * audio_buffer_get_stream_params ( struct sof_audio_buffer * buffer )

inlinestatic

return a handler to stream params structure

audio_buffer_hw_params_configured()

bool audio_buffer_hw_params_configured ( struct sof_audio_buffer * buffer )

inlinestatic

audio_buffer_init()

void audio_buffer_init	(	struct sof_audio_buffer *	buffer,
		uint32_t	buffer_type,
		bool	is_shared,
		const struct source_ops *	source_ops,
		const struct sink_ops *	sink_ops,
		const struct audio_buffer_ops *	audio_buffer_ops,
		struct sof_audio_stream_params *	audio_stream_params )

initialize audio buffer structures

Parameters

buffer	pointer to the audio_buffer
buffer_type	a type of the buffer, BUFFER_TYPE_*
is_shared	indicates if the buffer will be shared between cores
source_ops	pointer to virtual methods table for source API
sink_ops	pointer to virtual methods table for sink API
audio_buffer_ops	pointer to required buffer virtual methods implementation
audio_stream_params	pointer to audio stream (currently kept in buffer implementation)

in sink_ops and source_ops API if there's no implemented of following methods: on_audio_format_set audio_set_ipc_params set_alignment_constants

default implementation will be used instead, redirecting those calls to proper audio_buffer_ops operations

audio_buffer_is_shared()

bool audio_buffer_is_shared ( struct sof_audio_buffer * buffer )

inlinestatic

audio_buffer_reset()

void audio_buffer_reset ( struct sof_audio_buffer * buffer )

inlinestatic

clean all buffer data, set buffer positions to initial, leaving config as is the procedure is to be called only when buffer is not in use

audio_buffer_reset_params()

void audio_buffer_reset_params ( struct sof_audio_buffer * buffer )

inlinestatic

audio_buffer_set_chmap()

void audio_buffer_set_chmap ( struct sof_audio_buffer * buffer, size_t index, uint16_t value )

inlinestatic

audio_buffer_set_eos()

void audio_buffer_set_eos ( struct sof_audio_buffer * buffer )

inlinestatic

audio_buffer_set_hw_params_configured()

void audio_buffer_set_hw_params_configured ( struct sof_audio_buffer * buffer )

inlinestatic

audio_buffer_set_state()

void audio_buffer_set_state ( struct sof_audio_buffer * buffer, enum sof_audio_buffer_state state )

inlinestatic

audio_buffer_sink_get_lft()

uint32_t audio_buffer_sink_get_lft

(

struct sof_sink *

sink

)

audio_buffer_sink_on_audio_format_set()

int audio_buffer_sink_on_audio_format_set

(

struct sof_sink *

sink

)

audio_buffer_sink_set_alignment_constants()

int audio_buffer_sink_set_alignment_constants	(	struct sof_sink *	sink,
		const uint32_t	byte_align,
		const uint32_t	frame_align_req )

audio_buffer_sink_set_ipc_params()

int audio_buffer_sink_set_ipc_params	(	struct sof_sink *	sink,
		struct sof_ipc_stream_params *	params,
		bool	force_update )

audio_buffer_source_on_audio_format_set()

int audio_buffer_source_on_audio_format_set

(

struct sof_source *

source

)

audio_buffer_source_set_alignment_constants()

int audio_buffer_source_set_alignment_constants	(	struct sof_source *	source,
		const uint32_t	byte_align,
		const uint32_t	frame_align_req )

audio_buffer_source_set_ipc_params()

int audio_buffer_source_set_ipc_params	(	struct sof_source *	source,
		struct sof_ipc_stream_params *	params,
		bool	force_update )

sof_audio_buffer_from_sink()

struct sof_audio_buffer * sof_audio_buffer_from_sink ( struct sof_sink * sink )

inlinestatic

return a pointer to struct sof_audio_buffer from sink pointer NOTE!

ensure that sink is really provided by sof_audio_buffer otherwise a random value will be returned

sof_audio_buffer_from_source()

struct sof_audio_buffer * sof_audio_buffer_from_source ( struct sof_source * source )

inlinestatic

return a pointer to struct sof_audio_buffer from source pointer NOTE!

ensure that source is really provided by sof_audio_buffer otherwise a random value will be returned
