buffer.h File Reference

Component interconnect buffer allocation and stream handling. More...

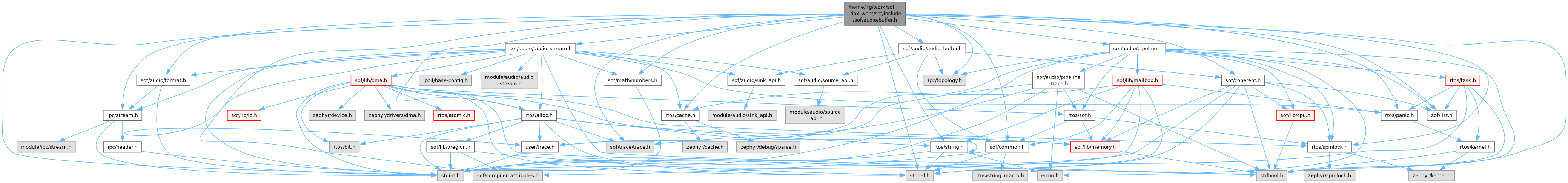

Include dependency graph for buffer.h:

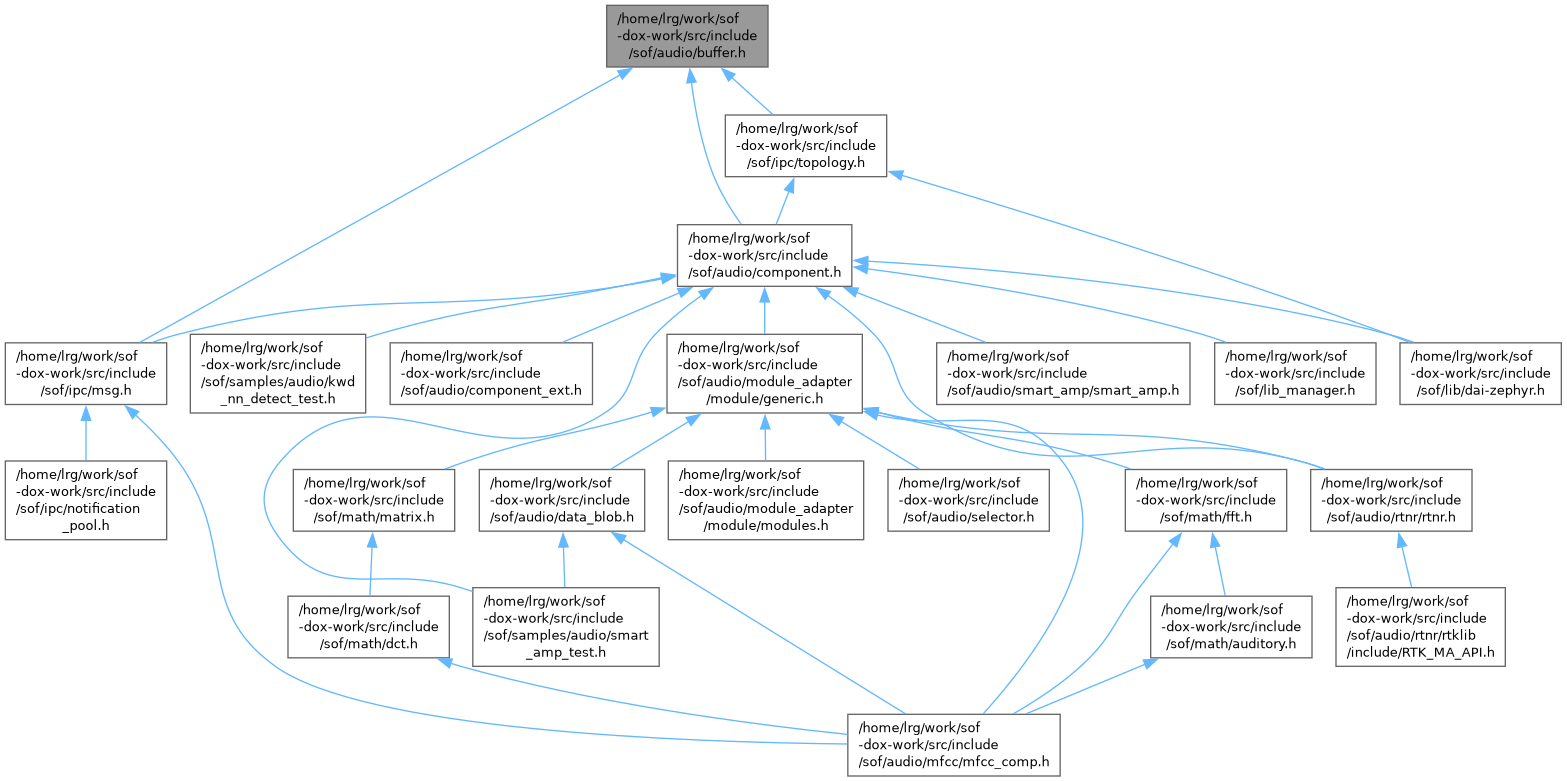

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	comp_buffer
	Audio component interconnect buffer connecting two pipeline components. More...
struct	buffer_cb_transact
	Transaction descriptor passed to buffer probe callbacks. More...

Macros
#define	buffer_from_list(ptr, dir)
	Retrieve enclosing comp_buffer from a list node depending on traversal direction.
#define	buffer_set_cb(buffer, func, data, type)
	Set transaction callback on a component buffer.
Buffer callback types
#define	BUFF_CB_TYPE_PRODUCE   BIT(0)
	Callback triggered on buffer produce.
#define	BUFF_CB_TYPE_CONSUME   BIT(1)
	Callback triggered on buffer consume.
Buffer parameter update modes
#define	BUFFER_UPDATE_IF_UNSET   0
	Update buffer parameters only if currently unset.
#define	BUFFER_UPDATE_FORCE   1
	Force update buffer parameters regardless of current state.
Buffer parameter bitmasks
#define	BUFF_PARAMS_FRAME_FMT   BIT(0)
	Buffer parameter bitmask: frame format.
#define	BUFF_PARAMS_BUFFER_FMT   BIT(1)
	Buffer parameter bitmask: buffer format.
#define	BUFF_PARAMS_RATE   BIT(2)
	Buffer parameter bitmask: sample rate.
#define	BUFF_PARAMS_CHANNELS   BIT(3)
	Buffer parameter bitmask: channels count.
Buffer memory sharing usage
#define	BUFFER_USAGE_SHARED   true
	Buffer used by multiple DSP cores and/or HW blocks.
#define	BUFFER_USAGE_NOT_SHARED   false
	Buffer only used by one HW block.

Functions
static struct comp_dev *	comp_buffer_get_source_component (const struct comp_buffer *buffer)
	Get component providing data to the buffer.
static struct comp_dev *	comp_buffer_get_sink_component (const struct comp_buffer *buffer)
	Get component consuming data from the buffer.
static void	comp_buffer_set_source_component (struct comp_buffer *buffer, struct comp_dev *comp)
	Set component providing data to the buffer.
static void	comp_buffer_set_sink_component (struct comp_buffer *buffer, struct comp_dev *comp)
	Set component consuming data from the buffer.
static void	comp_buffer_reset_source_list (struct comp_buffer *buffer)
	Reset buffer source list node.
static void	comp_buffer_reset_sink_list (struct comp_buffer *buffer)
	Reset buffer sink list node.
struct comp_buffer *	buffer_alloc (struct mod_alloc_ctx *alloc, size_t size, uint32_t flags, uint32_t align, bool is_shared)
	Allocate a pipeline component audio buffer with explicit size and alignment.
struct comp_buffer *	buffer_alloc_range (struct mod_alloc_ctx *alloc, size_t preferred_size, size_t minimum_size, uint32_t flags, uint32_t align, bool is_shared)
	Allocate a pipeline component buffer with an elastic size range.
struct comp_buffer *	buffer_new (struct mod_alloc_ctx *alloc, const struct sof_ipc_buffer *desc, bool is_shared)
	Instantiate a pipeline component buffer from an IPC configuration descriptor.
int	buffer_set_size (struct comp_buffer *buffer, uint32_t size, uint32_t alignment)
	Resize an existing pipeline component buffer.
int	buffer_set_size_range (struct comp_buffer *buffer, size_t preferred_size, size_t minimum_size, uint32_t alignment)
	Resize a pipeline component buffer within a preferred-to-minimum range.
static struct comp_buffer *	comp_buffer_get_from_source (struct sof_source *source)
	Retrieve enclosing comp_buffer from an audio source interface pointer.
static struct comp_buffer *	comp_buffer_get_from_sink (struct sof_sink *sink)
	Retrieve enclosing comp_buffer from an audio sink interface pointer.
static void	buffer_free (struct comp_buffer *buffer)
	Free an interconnect component buffer and its underlying memory.
void	buffer_zero (struct comp_buffer *buffer)
	Zero-fill the entire payload of an interconnect buffer.
void	comp_update_buffer_produce (struct comp_buffer *buffer, uint32_t bytes)
	Notify buffer that audio data has been produced by a component.
void	comp_update_buffer_consume (struct comp_buffer *buffer, uint32_t bytes)
	Notify buffer that audio data has been consumed by a component.
int	buffer_set_params (struct comp_buffer *buffer, struct sof_ipc_stream_params *params, bool force_update)
	Set audio stream parameters on a component buffer.
bool	buffer_params_match (struct comp_buffer *buffer, struct sof_ipc_stream_params *params, uint32_t flag)
	Test if buffer stream parameters match requested parameters.
static void	buffer_stream_invalidate (struct comp_buffer *buffer, uint32_t bytes)
	Invalidate cache for a shared buffer stream if incoherent.
static void	buffer_stream_writeback (struct comp_buffer *buffer, uint32_t bytes)
	Write back cache for a shared buffer stream if incoherent.
int	buffer_attach (struct comp_buffer *buffer, struct list_item *head, int dir)
	Attach a new buffer at the beginning of a component buffer list.
void	buffer_detach (struct comp_buffer *buffer, struct list_item *head, int dir)
	Detach a buffer from anywhere in a component buffer list.
static struct comp_dev *	buffer_get_comp (struct comp_buffer *buffer, int dir)
	Get component connected to buffer in specified traversal direction.
static uint32_t	buffer_pipeline_id (const struct comp_buffer *buffer)
	Retrieve pipeline ID associated with a component buffer.
static void	buffer_init_stream (struct comp_buffer *buffer, size_t size)
	Initialize circular stream buffer descriptor for a component buffer.

Trace macros
#define	buf_get_id(buf_ptr)   ((buf_ptr)->stream.runtime_stream_params.id)
	Retrieves subid (comp id) from the buffer.
#define	trace_buf_get_tr_ctx(buf_ptr)   (&(buf_ptr)->tctx)
	Retrieves trace context from the buffer.
#define	buf_err(buf_ptr, __e, ...)
	Trace error message from buffer.
#define	buf_warn(buf_ptr, __e, ...)
	Trace warning message from buffer.
#define	buf_info(buf_ptr, __e, ...)
	Trace info message from buffer.
#define	buf_dbg(buf_ptr, __e, ...)
	Trace debug message from buffer.
struct tr_ctx	buffer_tr

Detailed Description

Component interconnect buffer allocation and stream handling.
