coherent.h File Reference

Cache-coherent multi-core shared memory access abstractions. More...

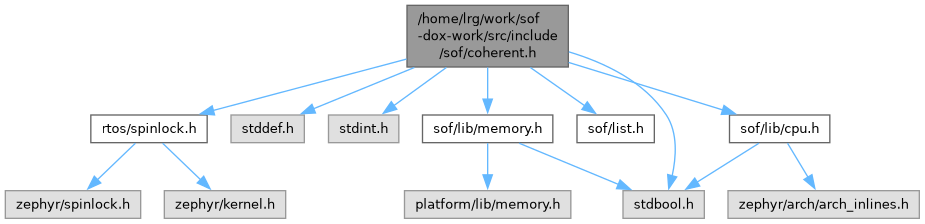

Include dependency graph for coherent.h:

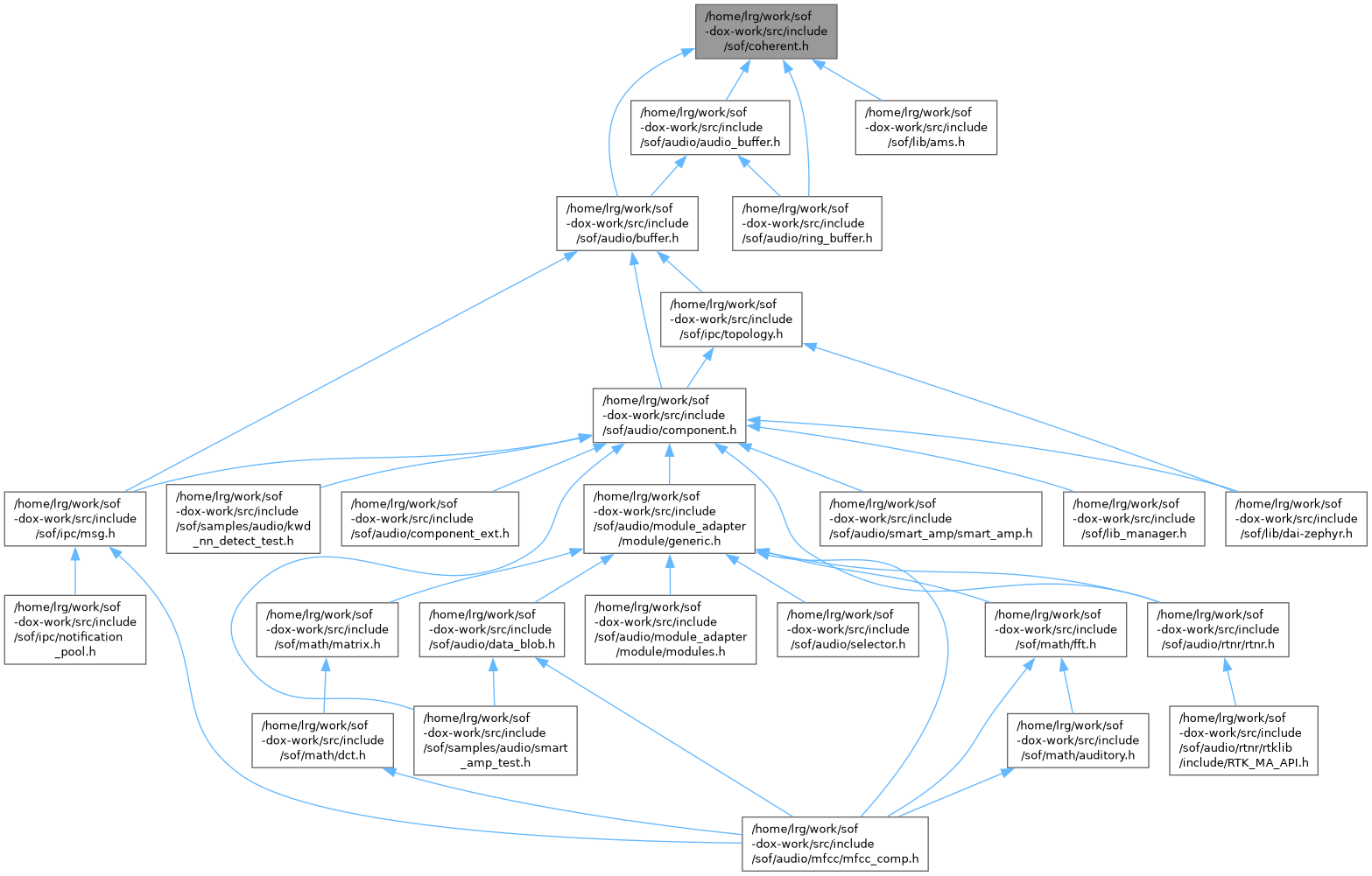

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	coherent
	Header embedded at start of multi-core shared memory objects for cache coherence. More...

Macros
#define	__coherent   __aligned(PLATFORM_DCACHE_ALIGN)
	Cache line alignment specifier for coherent shared memory objects.
#define	ADDR_IS_INCOHERENT(_c)
#define	ADDR_IS_COHERENT(_c)
#define	CORE_CHECK_STRUCT_FIELD
#define	CORE_CHECK_STRUCT_INIT(_c, is_shared)
#define	CORE_CHECK_STRUCT(_c)
#define	CHECK_COHERENT_CORE(_c)
#define	CHECK_ISR()   __ASSERT(!k_is_in_isr(), "Attempt to sleep in ISR!")
#define	CHECK_SLEEP(_c)
#define	CHECK_ATOMIC(_c)
#define	coherent_init(type, member)
	Allocate and initialize a coherent shared object with spinlock protection.
#define	coherent_shared(object, member)
	Mark an allocated coherent object as actively shared across multiple DSP cores.
#define	coherent_init_thread(type, member)
	Allocate and initialize a coherent shared object with mutex protection for thread context.
#define	coherent_shared_thread(object, member)
	Mark a thread-capable coherent object as shared across multiple DSP cores.
#define	coherent_free(object, member)
	Invalidate cache and free a coherent shared memory object.
#define	coherent_free_thread   coherent_free
	Free a thread-capable coherent shared memory object.
#define	is_coherent_shared(object, member)   ((object)->member.shared)
	Query whether a coherent object is configured for multi-core shared mode.

Functions
static struct coherent *	coherent_acquire (struct coherent *c, const size_t size)
	Acquire exclusive access to a cache-coherent shared object in atomic/spinlock context.
static void	coherent_release (struct coherent *c, const size_t size)
	Release exclusive access to a cache-coherent shared object in atomic/spinlock context.
static void *	__coherent_init (size_t offset, const size_t size)
	Internal helper to allocate and initialize a coherent shared object.
static void	__coherent_shared (struct coherent *c, const size_t size)
	Internal helper to mark an allocated coherent object as actively shared.
static struct coherent *	coherent_acquire_thread (struct coherent *c, const size_t size)
	Acquire exclusive access to a cache-coherent shared object in thread/mutex context.
static void	coherent_release_thread (struct coherent *c, const size_t size)
	Release exclusive access to a cache-coherent shared object in thread/mutex context.
static void *	__coherent_init_thread (size_t offset, const size_t size)
	Internal helper to allocate and initialize a thread-capable coherent shared object.
static void	__coherent_shared_thread (struct coherent *c, const size_t size)
	Internal helper to mark a thread-capable coherent object as actively shared.

Detailed Description

Cache-coherent multi-core shared memory access abstractions.
