data_blob.h File Reference

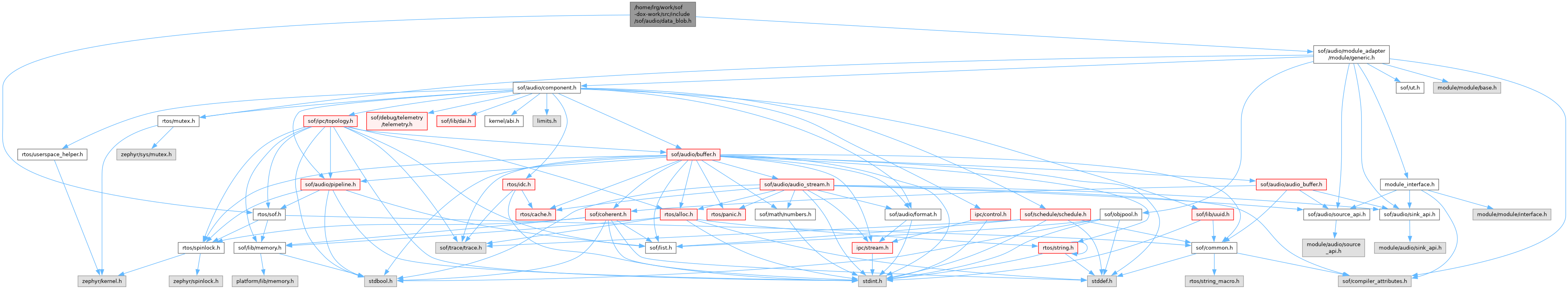

Include dependency graph for data_blob.h:

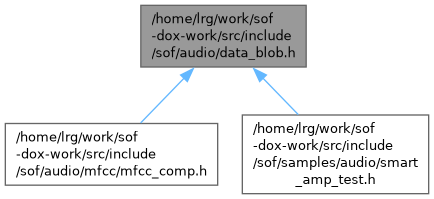

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void *	comp_get_data_blob (struct comp_data_blob_handler *blob_handler, size_t *size, uint32_t *crc)
	Returns data blob.
bool	comp_is_new_data_blob_available (struct comp_data_blob_handler *blob_handler)
	Checks whether new data blob is available.
bool	comp_is_current_data_blob_valid (struct comp_data_blob_handler *blob_handler)
	Checks whether there is a valid data blob is available.
int	comp_init_data_blob (struct comp_data_blob_handler *blob_handler, uint32_t size, const void *init_data)
	Initializes data blob with given value.
int	comp_data_blob_set_cmd (struct comp_data_blob_handler *blob_handler, struct sof_ipc_ctrl_data *cdata)
	Handles IPC set command.
int	comp_data_blob_set (struct comp_data_blob_handler *blob_handler, enum module_cfg_fragment_position pos, uint32_t data_offset_size, const uint8_t *fragment, size_t fragment_size)
	Handles IPC set command.
int	ipc4_comp_data_blob_set (struct comp_data_blob_handler *blob_handler, bool first_block, bool last_block, uint32_t data_offset, const char *data)
	Handles IPC4 set large config.
int	comp_data_blob_get_cmd (struct comp_data_blob_handler *blob_handler, struct sof_ipc_ctrl_data *cdata, int size)
	Handles IPC get command.
struct comp_data_blob_handler *	comp_data_blob_handler_new_ext (struct comp_dev *dev, bool single_blob, void *(*alloc)(size_t size), void(*free)(void *buf))
	Returns new data blob handler.
static struct comp_data_blob_handler *	comp_data_blob_handler_new (struct comp_dev *dev)
	Returns new data blob handler.
void	comp_data_blob_handler_free (struct comp_data_blob_handler *blob_handler)
	Free data blob handler.
void	comp_data_blob_set_validator (struct comp_data_blob_handler *blob_handler, int(*validator)(struct comp_dev *dev, void *new_data, uint32_t new_data_size))
	Add a validator to check that the new data blob is valid for the given component.

Function Documentation

comp_data_blob_get_cmd()

int comp_data_blob_get_cmd	(	struct comp_data_blob_handler *	blob_handler,
		struct sof_ipc_ctrl_data *	cdata,
		int	size )

Handles IPC get command.

Parameters

blob_handler	Data blob handler
cdata	IPC ctrl data
size	Required size

comp_data_blob_handler_free()

void comp_data_blob_handler_free

(

struct comp_data_blob_handler *

blob_handler

)

Free data blob handler.

Parameters

blob_handler

Data blob handler

comp_data_blob_handler_new()

struct comp_data_blob_handler * comp_data_blob_handler_new ( struct comp_dev * dev )

inlinestatic

Returns new data blob handler.

This is a simplified version of comp_data_blob_handler_new_ext() using default memory allocator and double blob mode for on the fly updates.

Parameters

dev	Component device

comp_data_blob_handler_new_ext()

struct comp_data_blob_handler * comp_data_blob_handler_new_ext	(	struct comp_dev *	dev,
		bool	single_blob,
		void *(*	alloc )(size_t size),
		void(*	free )(void *buf) )

Returns new data blob handler.

Data blob handler has two modes of operation, single_blob == false stands for double blob mode that allow seamless configuration updates on the fly. In single_blob == true mode there is at most one blob allocated at one time and configuration update is not allowed if the component is active. The single blob mode should be used with components with very big configuration blobs to save DSP memory.

Parameters

dev	Component device
single_blob	Set true for single configuration blob operation
alloc	Optional blob memory allocator function pointer
free	Optional blob memory free function pointer

comp_data_blob_set()

int comp_data_blob_set	(	struct comp_data_blob_handler *	blob_handler,
		enum module_cfg_fragment_position	pos,
		uint32_t	data_offset_size,
		const uint8_t *	fragment,
		size_t	fragment_size )

Handles IPC set command.

Parameters

blob_handler	Data blob handler
pos	position: of the data fragment
data_offset_size	offset of the fragment in the whole data
fragment	pointer to the fragment data
fragment_size	size of the fragment data

comp_data_blob_set_cmd()

int comp_data_blob_set_cmd	(	struct comp_data_blob_handler *	blob_handler,
		struct sof_ipc_ctrl_data *	cdata )

Handles IPC set command.

Parameters

blob_handler	Data blob handler
cdata	IPC ctrl data

comp_data_blob_set_validator()

void comp_data_blob_set_validator	(	struct comp_data_blob_handler *	blob_handler,
		int(*	validator )(struct comp_dev *dev, void *new_data, uint32_t new_data_size) )

Add a validator to check that the new data blob is valid for the given component.

If the given validator is null (the default value), then any data blob will be considered valid.

Parameters

blob_handler	Data blob handler
validator	Function used to validate the new data blob

comp_get_data_blob()

void * comp_get_data_blob	(	struct comp_data_blob_handler *	blob_handler,
		size_t *	size,
		uint32_t *	crc )

Returns data blob.

In case when new data blob is available it returns new one. Function returns also data blob size in case when size pointer is given.

Parameters

blob_handler	Data blob handler
size	Pointer to data blob size variable
crc	Pointer to data blolb crc value

comp_init_data_blob()

int comp_init_data_blob	(	struct comp_data_blob_handler *	blob_handler,
		uint32_t	size,
		const void *	init_data )

Initializes data blob with given value.

If init_data is not specified, function will zero data blob.

Parameters

blob_handler	Data blob handler
size	Data blob size
init_data	Initial data blob values

comp_is_current_data_blob_valid()

bool comp_is_current_data_blob_valid

(

struct comp_data_blob_handler *

blob_handler

)

Checks whether there is a valid data blob is available.

Parameters

blob_handler

Data blob handler

comp_is_new_data_blob_available()

bool comp_is_new_data_blob_available

(

struct comp_data_blob_handler *

blob_handler

)

Checks whether new data blob is available.

Function allows to check (even during streaming - in copy() function) whether new config is available and if it is, component can perform reconfiguration.

Parameters

blob_handler

Data blob handler

ipc4_comp_data_blob_set()

int ipc4_comp_data_blob_set	(	struct comp_data_blob_handler *	blob_handler,
		bool	first_block,
		bool	last_block,
		uint32_t	data_offset,
		const char *	data )

Handles IPC4 set large config.

Parameters

blob_handler	Data blob handler
first_block	Flag indicates it is a first block of data
last_block	Flag indicates it is a last block of data
data_offset	Size/offset of the data being sent
data	Pointer to the data array
