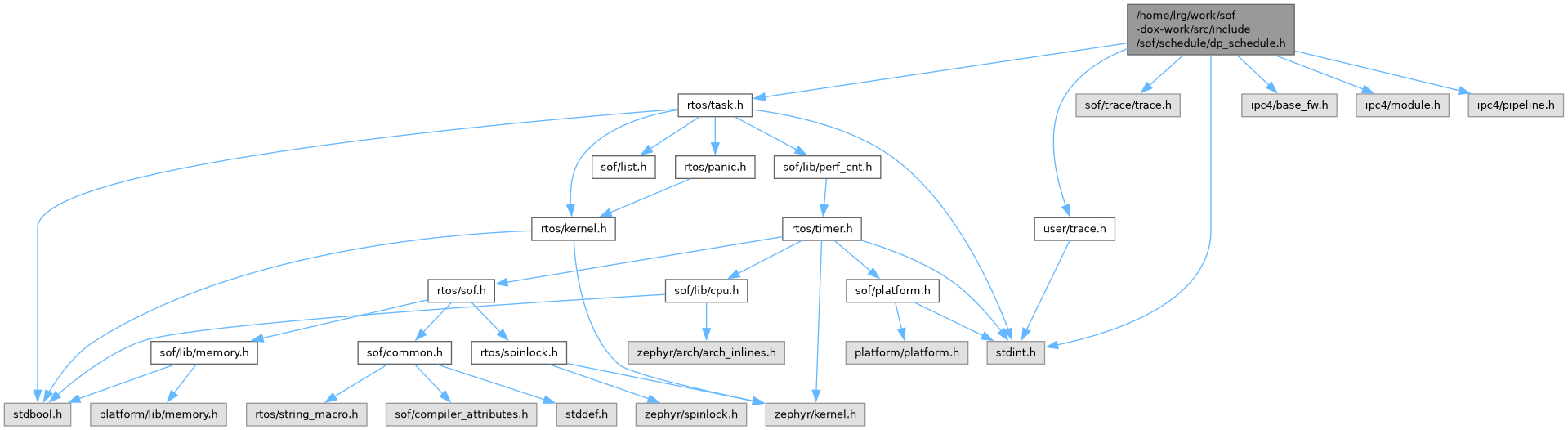

Include dependency graph for dp_schedule.h:

Data Structures
union	scheduler_dp_thread_ipc_param

Enumerations
enum	{ DP_TASK_EVENT_PROCESS = BIT(0) , DP_TASK_EVENT_CANCEL = BIT(1) , DP_TASK_EVENT_IPC = BIT(2) , DP_TASK_EVENT_IPC_DONE = BIT(3) }

Functions
int	scheduler_dp_init (void)
	DP scheduler is a scheduler that creates a separate preemptible Zephyr thread for each SOF task.
int	scheduler_dp_task_init (struct task *task, const struct sof_uuid_entry uid, const struct task_ops ops, struct processing_module mod, uint16_t core, size_t stack_size, uint32_t options)
	initialize a DP task and add it to scheduling It must be called on core the task is declared to run on
void	scheduler_dp_ll_tick (void)
void	scheduler_get_task_info_dp (struct scheduler_props scheduler_props, uint32_t data_off_size)
	Extract information about scheduler's tasks.
static int	scheduler_dp_thread_ipc (struct processing_module pmod, unsigned int cmd, const union scheduler_dp_thread_ipc_param param)

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Enumerator
DP_TASK_EVENT_PROCESS
DP_TASK_EVENT_CANCEL
DP_TASK_EVENT_IPC
DP_TASK_EVENT_IPC_DONE

Function Documentation

◆ scheduler_dp_init()

int scheduler_dp_init ( void )

DP scheduler is a scheduler that creates a separate preemptible Zephyr thread for each SOF task.

The task execution may be delayed and task may be re-scheduled periodically NOTE: delayed start and rescheduling takes place in sync with LL scheduler, meaning the DP scheduler is triggered on each core after all LL task have been completed

Task run() may return: SOF_TASK_STATE_RESCHEDULE - the task will be rescheduled as specified in scheduler period note that task won't ever be rescheduled if LL is not running SOF_TASK_STATE_COMPLETED - the task will be removed from scheduling, calling schedule_task will add the task to processing again task_complete() will be called SOF_TASK_STATE_CANCEL - the task will be removed from scheduling, calling schedule_task will add the task to processing again task_complete() won't be called other statuses - assert will go off

NOTE: task - means a SOF task thread - means a Zephyr preemptible thread

TODO - EDF: Threads run on the same priority, lower than thread running LL tasks. Zephyr EDF mechanism is used for decision which thread/task is to be scheduled next. The DP scheduler calculates the task deadline and set it in Zephyr thread properties, the final scheduling decision is made by Zephyr.

Each time tick the scheduler iterates through the list of all active tasks and calculates a deadline based on

knowledge how the modules are bound
declared time required by a task to complete processing
the deadline of the last module

Init the Data Processing scheduler

◆ scheduler_dp_ll_tick()

void scheduler_dp_ll_tick ( void )

◆ scheduler_dp_task_init()

int scheduler_dp_task_init	(	struct task **	task,
		const struct sof_uuid_entry *	uid,
		const struct task_ops *	ops,
		struct processing_module *	mod,
		uint16_t	core,
		size_t	stack_size,
		uint32_t	options )

initialize a DP task and add it to scheduling It must be called on core the task is declared to run on

Parameters

[out]	task	pointer, pointer to allocated task structure will be return
[in]	uid	pointer to UUID of the task
[in]	ops	pointer to task functions
[in]	mod	pointer to the module to be run
[in]	core	CPU the thread should run on
[in]	stack_size	size of stack for a zephyr task
[in]	options	task options used for creation

◆ scheduler_dp_thread_ipc()

int scheduler_dp_thread_ipc	(	struct processing_module *	pmod,
		unsigned int	cmd,
		const union scheduler_dp_thread_ipc_param *	param )

inlinestatic

◆ scheduler_get_task_info_dp()

void scheduler_get_task_info_dp	(	struct scheduler_props *	scheduler_props,
		uint32_t *	data_off_size )

Extract information about scheduler's tasks.
