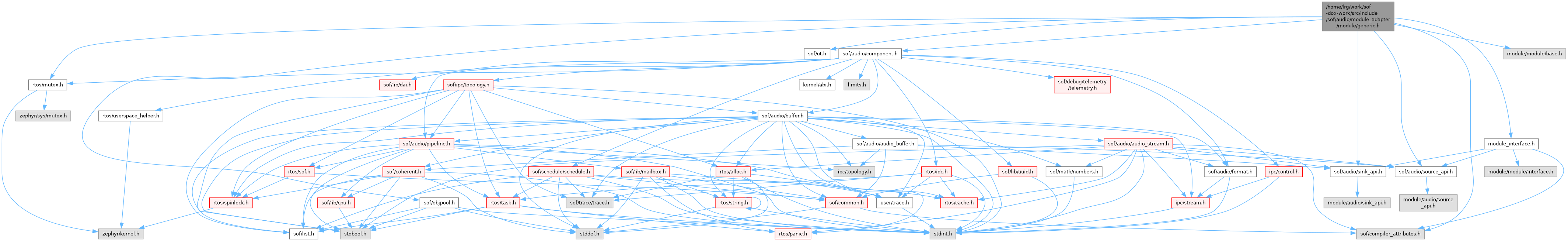

Include dependency graph for generic.h:

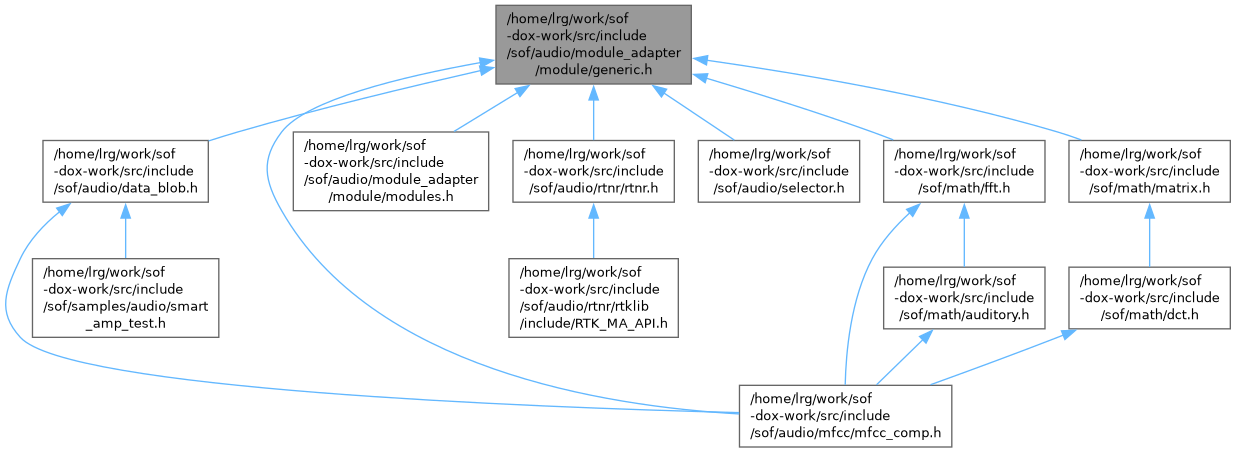

This graph shows which files directly or indirectly include this file:

Data Structures
struct	module_param
	Module TLV parameters container - used for both config types. More...

struct	module_resources
	module resources block - used for module allocation records The allocations are recorded so that they can be automatically freed when the module unloads. More...

struct	module_resource
	module memory container - used for every memory allocated by module More...

struct	module_processing_data
	Processing data shared between particular module & module_adapter. More...

Macros
#define	IS_PROCESSING_MODE_AUDIO_STREAM(mod) ((mod)->proc_type == MODULE_PROCESS_TYPE_STREAM)

#define	IS_PROCESSING_MODE_RAW_DATA(mod) ((mod)->proc_type == MODULE_PROCESS_TYPE_RAW)

#define	IS_PROCESSING_MODE_SINK_SOURCE(mod) ((mod)->proc_type == MODULE_PROCESS_TYPE_SOURCE_SINK)

#define	IPC_MOD_CMD(v)

#define	SET_MODULE_ADAPTER_TCTX(tr) .tctx = &(tr),

#define	DECLARE_MODULE_ADAPTER(adapter, uuid, tr)

#define	SOF_MODULE_API_PRIVATE

Enumerations
enum	module_state { MODULE_DISABLED , MODULE_INITIALIZED , MODULE_IDLE , MODULE_PROCESSING }
	Module-specific states. More...

enum	mod_resource_type { MOD_RES_UNINITIALIZED = 0 , MOD_RES_HEAP , MOD_RES_BLOB_HANDLER , MOD_RES_FAST_GET }

Functions
int	module_load_config (struct comp_dev dev, const void cfg, size_t size)

int	module_init (struct processing_module *mod)

void *	mod_balloc_align (struct processing_module *mod, size_t size, size_t alignment)
	Allocate aligned stream buffer memory for a processing module.

void	mod_resource_init (struct processing_module *mod)
	Initialize module resource management locks and containers.

void	mod_heap_info (struct processing_module mod, size_t size, uintptr_t *start)
	Query module memory heap boundary and size.

void *	mod_alloc_ext (struct processing_module *mod, uint32_t flags, size_t size, size_t alignment)
	Allocate memory for a module with explicit flags and alignment.

int	mod_free (struct processing_module mod, const void ptr)
	Free a memory block previously allocated for a module.

void	mod_free_all (struct processing_module *mod)
	Free all heap resources currently tracked for a module.

static void *	mod_alloc_align (struct processing_module *mod, size_t size, size_t alignment)
	Allocate aligned memory block for module with user privileges.

static void *	mod_balloc (struct processing_module *mod, size_t size)
	Allocate stream buffer memory for module with natural alignment.

static void *	mod_alloc (struct processing_module *mod, size_t size)
	Allocate memory block for module with default natural alignment.

static void *	mod_zalloc (struct processing_module *mod, size_t size)
	Allocate zero-initialized memory block for module.

static struct ipc_msg *	mod_ipc_msg_w_ext_init (struct processing_module *mod, uint32_t header, uint32_t extension, uint32_t size)
	Initialize a new IPC message using the module allocator.

static struct ipc_msg *	mod_ipc_msg_init (struct processing_module *mod, uint32_t header, uint32_t size)

static void	mod_ipc_msg_free (struct processing_module mod, struct ipc_msg msg)
	Free an IPC message allocated with mod_ipc_msg_init() or mod_ipc_msg_w_ext_init().

int	module_prepare (struct processing_module mod, struct sof_source sources, int num_of_sources, struct sof_sink *sinks, int num_of_sinks)

static bool	generic_module_is_ready_to_process (struct processing_module mod, struct sof_source sources, int num_of_sources, struct sof_sink *sinks, int num_of_sinks)

static bool	module_is_ready_to_process (struct processing_module mod, struct sof_source sources, int num_of_sources, struct sof_sink *sinks, int num_of_sinks)

int	module_process_sink_src (struct processing_module mod, struct sof_source sources, int num_of_sources, struct sof_sink *sinks, int num_of_sinks)

int	module_process_legacy (struct processing_module mod, struct input_stream_buffer input_buffers, int num_input_buffers, struct output_stream_buffer *output_buffers, int num_output_buffers)

int	module_reset (struct processing_module *mod)

int	module_free (struct processing_module *mod)

int	module_set_configuration (struct processing_module mod, uint32_t config_id, enum module_cfg_fragment_position pos, size_t data_offset_size, const uint8_t fragment, size_t fragment_size, uint8_t *response, size_t response_size)

int	module_bind (struct processing_module mod, const struct bind_info bind_data)

int	module_unbind (struct processing_module mod, const struct bind_info unbind_data)

struct comp_dev *	module_adapter_new (const struct comp_driver drv, const struct comp_ipc_config config, const void *spec)

struct comp_dev *	module_adapter_new_ext (const struct comp_driver drv, const struct comp_ipc_config config, const void spec, void mod_priv, struct userspace_context user_ctx, const struct module_interface ops)

int	module_adapter_prepare (struct comp_dev *dev)

int	module_adapter_params (struct comp_dev dev, struct sof_ipc_stream_params params)

int	module_adapter_copy (struct comp_dev *dev)

int	module_adapter_cmd (struct comp_dev dev, int cmd, void data, int max_data_size)

int	module_adapter_trigger (struct comp_dev *dev, int cmd)

void	module_adapter_free (struct comp_dev *dev)

int	module_adapter_reset (struct comp_dev *dev)

size_t	module_adapter_heap_usage (struct processing_module mod, size_t hwm)

static int	module_adapter_get_attribute (struct comp_dev dev, uint32_t type, void value)

static int	module_adapter_set_attribute (struct comp_dev dev, uint32_t type, void value)

static int	module_set_large_config (struct comp_dev dev, uint32_t param_id, bool first_block, bool last_block, uint32_t data_offset, const char data)

static int	module_get_large_config (struct comp_dev dev, uint32_t param_id, bool first_block, bool last_block, uint32_t data_offset, char *data)

static int	module_adapter_bind (struct comp_dev dev, const struct bind_info bind_data)

static int	module_adapter_unbind (struct comp_dev dev, const struct bind_info unbind_data)

static uint64_t	module_adapter_get_total_data_processed (struct comp_dev *dev, uint32_t stream_no, bool input)

static int	module_process_endpoint (struct processing_module mod, struct input_stream_buffer input_buffers, int num_input_buffers, struct output_stream_buffer *output_buffers, int num_output_buffers)

int	module_adapter_get_hw_params (struct comp_dev dev, struct sof_ipc_stream_params params, int dir)

int	module_adapter_position (struct comp_dev dev, struct sof_ipc_stream_posn posn)

int	module_adapter_ts_config_op (struct comp_dev *dev)

int	module_adapter_ts_start_op (struct comp_dev *dev)

int	module_adapter_ts_stop_op (struct comp_dev *dev)

int	module_adapter_ts_get_op (struct comp_dev dev, struct timestamp_data tsd)

void	module_update_buffer_position (struct input_stream_buffer input_buffers, struct output_stream_buffer output_buffers, uint32_t frames)

int	module_ext_init_decode (const struct comp_driver drv, struct module_ext_init_data ext_data, struct ipc_config_process *spec)

int	module_adapter_init_data (struct comp_dev dev, struct module_config dst, const struct comp_ipc_config config, const void spec)

void	module_adapter_reset_data (struct module_config *dst)

void	module_adapter_check_data (struct processing_module mod, struct comp_dev dev, struct comp_buffer *sink)

void	module_adapter_set_params (struct processing_module mod, struct sof_ipc_stream_params params)

int	module_adapter_set_state (struct processing_module mod, struct comp_dev dev, int cmd)

int	module_adapter_sink_src_prepare (struct comp_dev *dev)

uint32_t	module_get_deadline (struct processing_module *mod)
	Get a deadline based on current LFT reported by all sinks it returns a value >= UINT32_MAX / 2 in case the deadline cannot be calculated:

static uint32_t	module_get_lpt (struct processing_module *mod)
	Get a Longest Processing Time estimation for the module, in us It is either.

Macro Definition Documentation

◆ DECLARE_MODULE_ADAPTER

#define DECLARE_MODULE_ADAPTER	(	adapter,
		uuid,
		tr
	)

◆ IPC_MOD_CMD

#define IPC_MOD_CMD ( v )

◆ IS_PROCESSING_MODE_AUDIO_STREAM

#define IS_PROCESSING_MODE_AUDIO_STREAM ( mod ) ((mod)->proc_type == MODULE_PROCESS_TYPE_STREAM)

◆ IS_PROCESSING_MODE_RAW_DATA

#define IS_PROCESSING_MODE_RAW_DATA ( mod ) ((mod)->proc_type == MODULE_PROCESS_TYPE_RAW)

◆ IS_PROCESSING_MODE_SINK_SOURCE

#define IS_PROCESSING_MODE_SINK_SOURCE ( mod ) ((mod)->proc_type == MODULE_PROCESS_TYPE_SOURCE_SINK)

◆ SET_MODULE_ADAPTER_TCTX

#define SET_MODULE_ADAPTER_TCTX ( tr ) .tctx = &(tr),

◆ SOF_MODULE_API_PRIVATE

#define SOF_MODULE_API_PRIVATE

Enumeration Type Documentation

◆ mod_resource_type

enum mod_resource_type

Enumerator
MOD_RES_UNINITIALIZED
MOD_RES_HEAP
MOD_RES_BLOB_HANDLER
MOD_RES_FAST_GET

◆ module_state

enum module_state

Module-specific states.

Enumerator
MODULE_DISABLED	Module isn't initialized yet or has been freed.
MODULE_INITIALIZED	Module initialized or reset.
MODULE_IDLE	Module is idle now.
MODULE_PROCESSING	Module is processing samples now.

Function Documentation

◆ generic_module_is_ready_to_process()

static bool generic_module_is_ready_to_process	(	struct processing_module *	mod,
		struct sof_source **	sources,
		int	num_of_sources,
		struct sof_sink **	sinks,
		int	num_of_sinks
	)

inlinestatic

◆ mod_alloc()

static void * mod_alloc	(	struct processing_module *	mod,
		size_t	size
	)

inlinestatic

Allocate memory block for module with default natural alignment.

Parameters

mod	Pointer to processing module.
size	Size in bytes.

Returns: Pointer to allocated memory, or NULL on failure.

◆ mod_alloc_align()

static void * mod_alloc_align	(	struct processing_module *	mod,
		size_t	size,
		size_t	alignment
	)

inlinestatic

Allocate aligned memory block for module with user privileges.

Parameters

mod	Pointer to processing module.
size	Size in bytes.
alignment	Alignment in bytes.

Returns: Pointer to allocated memory, or NULL on failure.

The allocated memory is automatically freed when the module is unloaded.

◆ mod_alloc_ext()

void * mod_alloc_ext	(	struct processing_module *	mod,
		uint32_t	flags,
		size_t	size,
		size_t	alignment
	)

Allocate memory for a module with explicit flags and alignment.

Allocates memory from the module's allocation context (mod_alloc_ctx). Automatically registered in module resources and released on module removal.

Parameters

mod	Pointer to processing module.
flags	Memory allocation flags (SOF_MEM_FLAG_...).
size	Size in bytes to allocate.
alignment	Required alignment in bytes.

Returns: Pointer to allocated memory, or NULL on failure.

◆ mod_balloc()

static void * mod_balloc	(	struct processing_module *	mod,
		size_t	size
	)

inlinestatic

Allocate stream buffer memory for module with natural alignment.

Parameters

mod	Pointer to processing module.
size	Size in bytes.

Returns: Pointer to allocated buffer, or NULL on failure.

◆ mod_balloc_align()

void * mod_balloc_align	(	struct processing_module *	mod,
		size_t	size,
		size_t	alignment
	)

Allocate aligned stream buffer memory for a processing module.

Allocates buffer memory via the module's allocation context using SOF_MEM_FLAG_USER and SOF_MEM_FLAG_LARGE_BUFFER. Tracked in module resources and automatically freed on module teardown.

Parameters

mod	Pointer to processing module.
size	Buffer size in bytes.
alignment	Required alignment in bytes.

Returns: Pointer to allocated buffer, or NULL on failure.

◆ mod_free()

int mod_free	(	struct processing_module *	mod,
		const void *	ptr
	)

Free a memory block previously allocated for a module.

Parameters

mod	Pointer to processing module.
ptr	Pointer to memory to free.

Returns: 0 on success, negative error code on failure.

◆ mod_free_all()

void mod_free_all ( struct processing_module * mod )

Free all heap resources currently tracked for a module.

Parameters

mod	Pointer to processing module.

◆ mod_heap_info()

void mod_heap_info	(	struct processing_module *	mod,
		size_t *	size,
		uintptr_t *	start
	)

Query module memory heap boundary and size.

Parameters

mod	Pointer to processing module.
size	Pointer to receive heap size in bytes.
start	Pointer to receive heap start address.

◆ mod_ipc_msg_free()

static void mod_ipc_msg_free	(	struct processing_module *	mod,
		struct ipc_msg *	msg
	)

inlinestatic

Free an IPC message allocated with mod_ipc_msg_init() or mod_ipc_msg_w_ext_init().

Parameters

mod	Module that owns the message.
msg	Message to free (may be NULL).

◆ mod_ipc_msg_init()

static struct ipc_msg * mod_ipc_msg_init	(	struct processing_module *	mod,
		uint32_t	header,
		uint32_t	size
	)

inlinestatic

◆ mod_ipc_msg_w_ext_init()

static struct ipc_msg * mod_ipc_msg_w_ext_init	(	struct processing_module *	mod,
		uint32_t	header,
		uint32_t	extension,
		uint32_t	size
	)

inlinestatic

Initialize a new IPC message using the module allocator.

Parameters

mod	Module to allocate from
header	Message header metadata
extension	Message header extension metadata
size	Message data size in bytes.

Returns: New IPC message.

◆ mod_resource_init()

void mod_resource_init ( struct processing_module * mod )

Initialize module resource management locks and containers.

Parameters

mod	Pointer to processing module.

◆ mod_zalloc()

static void * mod_zalloc	(	struct processing_module *	mod,
		size_t	size
	)

inlinestatic

Allocate zero-initialized memory block for module.

Parameters

mod	Pointer to processing module.
size	Size in bytes.

Returns: Pointer to zero-initialized allocated memory, or NULL on failure.

◆ module_adapter_bind()

static int module_adapter_bind	(	struct comp_dev *	dev,
		const struct bind_info *	bind_data
	)

inlinestatic

◆ module_adapter_check_data()

void module_adapter_check_data	(	struct processing_module *	mod,
		struct comp_dev *	dev,
		struct comp_buffer *	sink
	)

◆ module_adapter_cmd()

int module_adapter_cmd	(	struct comp_dev *	dev,
		int	cmd,
		void *	data,
		int	max_data_size
	)

◆ module_adapter_copy()

int module_adapter_copy ( struct comp_dev * dev )

◆ module_adapter_free()

void module_adapter_free ( struct comp_dev * dev )

◆ module_adapter_get_attribute()

static int module_adapter_get_attribute	(	struct comp_dev *	dev,
		uint32_t	type,
		void *	value
	)

inlinestatic

◆ module_adapter_get_hw_params()

int module_adapter_get_hw_params	(	struct comp_dev *	dev,
		struct sof_ipc_stream_params *	params,
		int	dir
	)

◆ module_adapter_get_total_data_processed()

static uint64_t module_adapter_get_total_data_processed	(	struct comp_dev *	dev,
		uint32_t	stream_no,
		bool	input
	)

inlinestatic

◆ module_adapter_heap_usage()

size_t module_adapter_heap_usage	(	struct processing_module *	mod,
		size_t *	hwm
	)

◆ module_adapter_init_data()

int module_adapter_init_data	(	struct comp_dev *	dev,
		struct module_config *	dst,
		const struct comp_ipc_config *	config,
		const void *	spec
	)

◆ module_adapter_new()

struct comp_dev * module_adapter_new	(	const struct comp_driver *	drv,
		const struct comp_ipc_config *	config,
		const void *	spec
	)

◆ module_adapter_new_ext()

struct comp_dev * module_adapter_new_ext	(	const struct comp_driver *	drv,
		const struct comp_ipc_config *	config,
		const void *	spec,
		void *	mod_priv,
		struct userspace_context *	user_ctx,
		const struct module_interface *	ops
	)

◆ module_adapter_params()

int module_adapter_params	(	struct comp_dev *	dev,
		struct sof_ipc_stream_params *	params
	)

◆ module_adapter_position()

int module_adapter_position	(	struct comp_dev *	dev,
		struct sof_ipc_stream_posn *	posn
	)

◆ module_adapter_prepare()

int module_adapter_prepare ( struct comp_dev * dev )

◆ module_adapter_reset()

int module_adapter_reset ( struct comp_dev * dev )

◆ module_adapter_reset_data()

void module_adapter_reset_data ( struct module_config * dst )

◆ module_adapter_set_attribute()

static int module_adapter_set_attribute	(	struct comp_dev *	dev,
		uint32_t	type,
		void *	value
	)

inlinestatic

◆ module_adapter_set_params()

void module_adapter_set_params	(	struct processing_module *	mod,
		struct sof_ipc_stream_params *	params
	)

◆ module_adapter_set_state()

int module_adapter_set_state	(	struct processing_module *	mod,
		struct comp_dev *	dev,
		int	cmd
	)

◆ module_adapter_sink_src_prepare()

int module_adapter_sink_src_prepare ( struct comp_dev * dev )

◆ module_adapter_trigger()

int module_adapter_trigger	(	struct comp_dev *	dev,
		int	cmd
	)

◆ module_adapter_ts_config_op()

int module_adapter_ts_config_op ( struct comp_dev * dev )

◆ module_adapter_ts_get_op()

int module_adapter_ts_get_op	(	struct comp_dev *	dev,
		struct timestamp_data *	tsd
	)

◆ module_adapter_ts_start_op()

int module_adapter_ts_start_op ( struct comp_dev * dev )

◆ module_adapter_ts_stop_op()

int module_adapter_ts_stop_op ( struct comp_dev * dev )

◆ module_adapter_unbind()

static int module_adapter_unbind	(	struct comp_dev *	dev,
		const struct bind_info *	unbind_data
	)

inlinestatic

◆ module_bind()

int module_bind	(	struct processing_module *	mod,
		const struct bind_info *	bind_data
	)

◆ module_ext_init_decode()

int module_ext_init_decode	(	const struct comp_driver *	drv,
		struct module_ext_init_data *	ext_data,
		struct ipc_config_process *	spec
	)

◆ module_free()

int module_free ( struct processing_module * mod )

◆ module_get_deadline()

uint32_t module_get_deadline ( struct processing_module * mod )

Get a deadline based on current LFT reported by all sinks it returns a value >= UINT32_MAX / 2 in case the deadline cannot be calculated:

if a module is in a dealayed start
if there's no sink - i.e. DP module is a pure data consumer (like key phrare detector)

Returns: a deadline the module must finish processing since NOW [in us]

◆ module_get_large_config()

static int module_get_large_config	(	struct comp_dev *	dev,
		uint32_t	param_id,
		bool	first_block,
		bool	last_block,
		uint32_t *	data_offset,
		char *	data
	)

inlinestatic

◆ module_get_lpt()

static uint32_t module_get_lpt ( struct processing_module * mod )

inlinestatic

Get a Longest Processing Time estimation for the module, in us It is either.

a value taken from the manifest or estimated from module period (TODO)
or a value taken from IPC call (TODO)
a worst case - module period note that module period may be calculated reasonably late, i.e. in prepare() method

◆ module_init()

int module_init ( struct processing_module * mod )

◆ module_is_ready_to_process()

static bool module_is_ready_to_process	(	struct processing_module *	mod,
		struct sof_source **	sources,
		int	num_of_sources,
		struct sof_sink **	sinks,
		int	num_of_sinks
	)

inlinestatic

◆ module_load_config()

int module_load_config	(	struct comp_dev *	dev,
		const void *	cfg,
		size_t	size
	)

◆ module_prepare()

int module_prepare	(	struct processing_module *	mod,
		struct sof_source **	sources,
		int	num_of_sources,
		struct sof_sink **	sinks,
		int	num_of_sinks
	)

◆ module_process_endpoint()

static int module_process_endpoint	(	struct processing_module *	mod,
		struct input_stream_buffer *	input_buffers,
		int	num_input_buffers,
		struct output_stream_buffer *	output_buffers,
		int	num_output_buffers
	)

inlinestatic

◆ module_process_legacy()

int module_process_legacy	(	struct processing_module *	mod,
		struct input_stream_buffer *	input_buffers,
		int	num_input_buffers,
		struct output_stream_buffer *	output_buffers,
		int	num_output_buffers
	)

◆ module_process_sink_src()

int module_process_sink_src	(	struct processing_module *	mod,
		struct sof_source **	sources,
		int	num_of_sources,
		struct sof_sink **	sinks,
		int	num_of_sinks
	)

◆ module_reset()

int module_reset ( struct processing_module * mod )

◆ module_set_configuration()

int module_set_configuration	(	struct processing_module *	mod,
		uint32_t	config_id,
		enum module_cfg_fragment_position	pos,
		size_t	data_offset_size,
		const uint8_t *	fragment,
		size_t	fragment_size,
		uint8_t *	response,
		size_t	response_size
	)

◆ module_set_large_config()

static int module_set_large_config	(	struct comp_dev *	dev,
		uint32_t	param_id,
		bool	first_block,
		bool	last_block,
		uint32_t	data_offset,
		const char *	data
	)

inlinestatic

◆ module_unbind()

int module_unbind	(	struct processing_module *	mod,
		const struct bind_info *	unbind_data
	)

◆ module_update_buffer_position()

void module_update_buffer_position	(	struct input_stream_buffer *	input_buffers,
		struct output_stream_buffer *	output_buffers,
		uint32_t	frames
	)

Data Structures

Macros

Enumerations

Functions

Macro Definition Documentation

◆ DECLARE_MODULE_ADAPTER

◆ IPC_MOD_CMD

◆ IS_PROCESSING_MODE_AUDIO_STREAM

◆ IS_PROCESSING_MODE_RAW_DATA

◆ IS_PROCESSING_MODE_SINK_SOURCE

◆ SET_MODULE_ADAPTER_TCTX

◆ SOF_MODULE_API_PRIVATE

Enumeration Type Documentation

◆ mod_resource_type

◆ module_state

Function Documentation

◆ generic_module_is_ready_to_process()

◆ mod_alloc()

◆ mod_alloc_align()

◆ mod_alloc_ext()

◆ mod_balloc()

◆ mod_balloc_align()

◆ mod_free()

◆ mod_free_all()

◆ mod_heap_info()

◆ mod_ipc_msg_free()

◆ mod_ipc_msg_init()

◆ mod_ipc_msg_w_ext_init()

◆ mod_resource_init()

◆ mod_zalloc()

◆ module_adapter_bind()

◆ module_adapter_check_data()

◆ module_adapter_cmd()

◆ module_adapter_copy()

◆ module_adapter_free()

◆ module_adapter_get_attribute()

◆ module_adapter_get_hw_params()

◆ module_adapter_get_total_data_processed()

◆ module_adapter_heap_usage()

◆ module_adapter_init_data()

◆ module_adapter_new()

◆ module_adapter_new_ext()

◆ module_adapter_params()

◆ module_adapter_position()

◆ module_adapter_prepare()

◆ module_adapter_reset()

◆ module_adapter_reset_data()

◆ module_adapter_set_attribute()

◆ module_adapter_set_params()

◆ module_adapter_set_state()

◆ module_adapter_sink_src_prepare()

◆ module_adapter_trigger()

◆ module_adapter_ts_config_op()

◆ module_adapter_ts_get_op()

◆ module_adapter_ts_start_op()

◆ module_adapter_ts_stop_op()

◆ module_adapter_unbind()

◆ module_bind()

◆ module_ext_init_decode()

◆ module_free()

◆ module_get_deadline()

◆ module_get_large_config()

◆ module_get_lpt()

◆ module_init()

◆ module_is_ready_to_process()

◆ module_load_config()

◆ module_prepare()

◆ module_process_endpoint()

◆ module_process_legacy()

◆ module_process_sink_src()

◆ module_reset()

◆ module_set_configuration()

◆ module_set_large_config()

◆ module_unbind()

◆ module_update_buffer_position()
