icomplex32.h File Reference

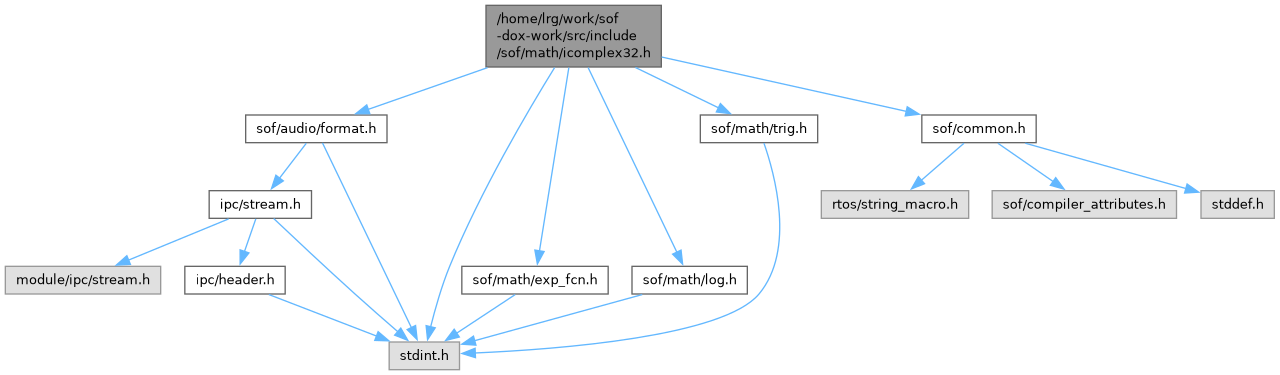

Include dependency graph for icomplex32.h:

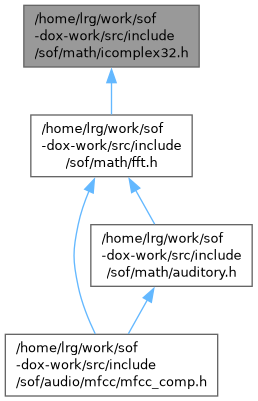

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	icomplex32
	struct icomplex32 - Storage for a normal complex number. More...
struct	ipolar32
	struct ipolar32 - Storage for complex number in polar format. More...

Functions
static void	icomplex32_add (const struct icomplex32 *in1, const struct icomplex32 *in2, struct icomplex32 *out)
static void	icomplex32_adds (const struct icomplex32 *in1, const struct icomplex32 *in2, struct icomplex32 *out)
static void	icomplex32_sub (const struct icomplex32 *in1, const struct icomplex32 *in2, struct icomplex32 *out)
static void	icomplex32_mul (const struct icomplex32 *in1, const struct icomplex32 *in2, struct icomplex32 *out)
static void	icomplex32_conj (struct icomplex32 *comp)
static void	icomplex32_shift (const struct icomplex32 *input, int32_t n, struct icomplex32 *output)
void	sofm_icomplex32_to_polar (struct icomplex32 *complex, struct ipolar32 *polar)
	sofm_icomplex32_to_polar() - Convert (re, im) complex number to polar.
void	sofm_ipolar32_to_complex (struct ipolar32 *polar, struct icomplex32 *complex)
	sofm_ipolar32_to_complex() - Convert complex number from polar to normal (re, im) format.

Function Documentation

icomplex32_add()

void icomplex32_add ( const struct icomplex32 * in1, const struct icomplex32 * in2, struct icomplex32 * out )

inlinestatic

icomplex32_adds()

void icomplex32_adds ( const struct icomplex32 * in1, const struct icomplex32 * in2, struct icomplex32 * out )

inlinestatic

icomplex32_conj()

void icomplex32_conj ( struct icomplex32 * comp )

inlinestatic

icomplex32_mul()

void icomplex32_mul ( const struct icomplex32 * in1, const struct icomplex32 * in2, struct icomplex32 * out )

inlinestatic

icomplex32_shift()

void icomplex32_shift ( const struct icomplex32 * input, int32_t n, struct icomplex32 * output )

inlinestatic

icomplex32_sub()

void icomplex32_sub ( const struct icomplex32 * in1, const struct icomplex32 * in2, struct icomplex32 * out )

inlinestatic

sofm_icomplex32_to_polar()

void sofm_icomplex32_to_polar	(	struct icomplex32 *	complex,
		struct ipolar32 *	polar )

sofm_icomplex32_to_polar() - Convert (re, im) complex number to polar.

Parameters

complex	Pointer to input complex number in Q1.31 format.
polar	Pointer to output complex number in Q2.30 format for magnitude and Q3.29 for phase angle.

The function can be used to convert data in-place with same address for input and output. It can be useful to save scratch memory.

sofm_ipolar32_to_complex()

void sofm_ipolar32_to_complex	(	struct ipolar32 *	polar,
		struct icomplex32 *	complex )

sofm_ipolar32_to_complex() - Convert complex number from polar to normal (re, im) format.

Parameters

polar	Pointer to input complex number in polar format.
complex	Pointer to output complex number in normal format in Q1.31.

This function can be used to convert data in-place with same address for input and output. It can be useful to save scratch memory.
