idc.h File Reference

IDC header file. More...

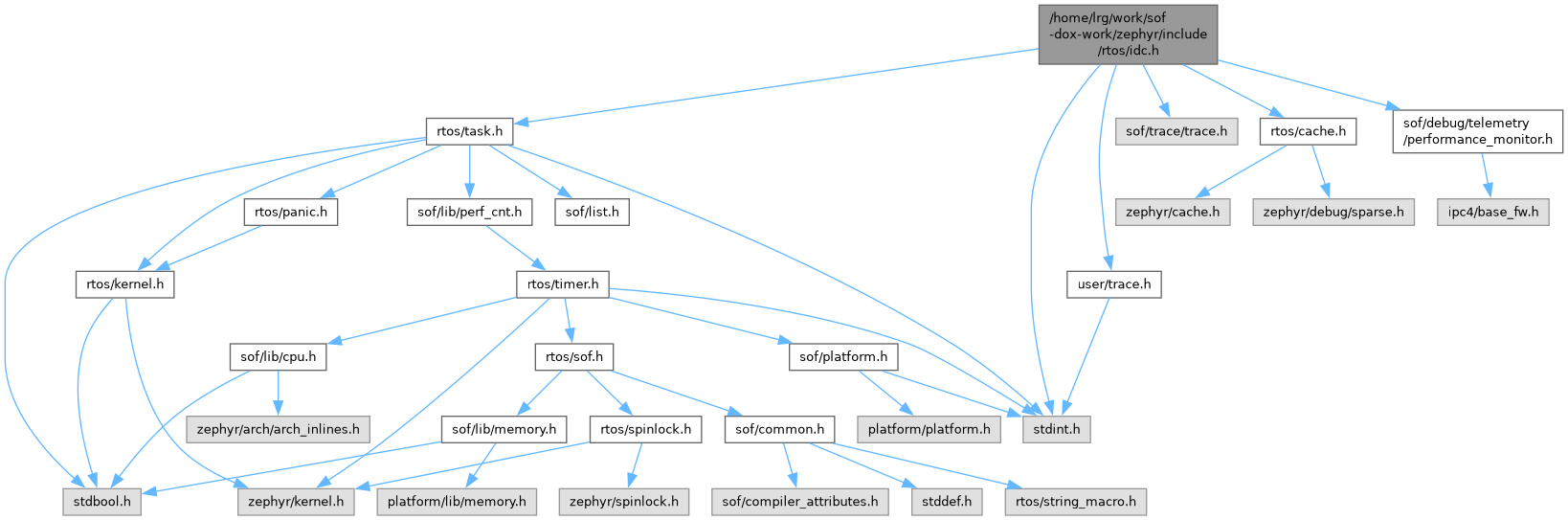

Include dependency graph for idc.h:

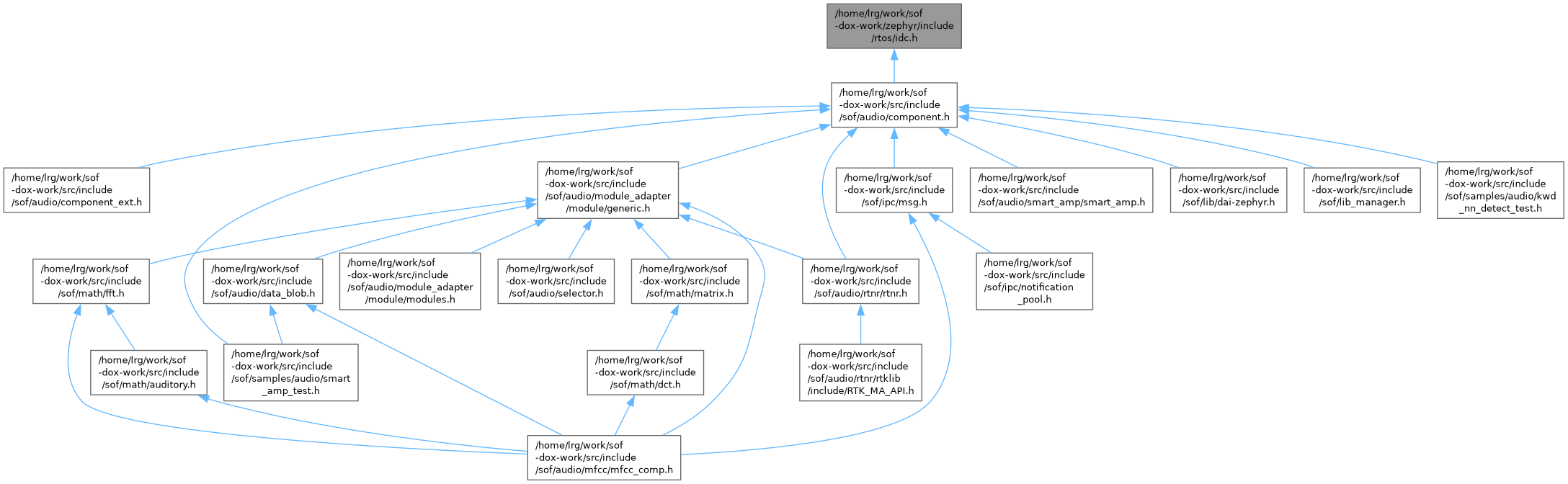

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	idc_payload
	IDC message payload. More...
struct	idc_msg
	IDC message. More...
struct	idc
	IDC data. More...

Macros
#define	IDC_BLOCKING   0
	IDC send blocking flag.
#define	IDC_NON_BLOCKING   1
	IDC send non-blocking flag.
#define	IDC_POWER_UP   2
	IDC send core power up flag.
#define	IDC_POWER_DOWN   3
	IDC send core power down flag.
#define	IDC_DEADLINE   100
	IDC task deadline.
#define	IDC_ROM_WAKE_VERSION   0x2
	ROM wake version parsed by ROM during core wake up.
#define	IDC_TYPE_SHIFT   24
	IDC message type.
#define	IDC_TYPE_MASK   0x7f
#define	IDC_TYPE(x)
#define	IDC_HEADER_MASK   0xffffff
	IDC message header.
#define	IDC_HEADER(x)
#define	IDC_EXTENSION_MASK   0x3fffffff
	IDC message extension.
#define	IDC_EXTENSION(x)
#define	IDC_MSG_POWER_UP
	IDC power up message.
#define	IDC_MSG_POWER_UP_EXT   IDC_EXTENSION(SOF_TEXT_START >> 2)
#define	IDC_MSG_POWER_DOWN   IDC_TYPE(0x2)
	IDC power down message.
#define	IDC_MSG_POWER_DOWN_EXT   IDC_EXTENSION(0x0)
#define	IDC_MSG_NOTIFY   IDC_TYPE(0x3)
	IDC notify message.
#define	IDC_MSG_NOTIFY_EXT   IDC_EXTENSION(0x0)
#define	IDC_MSG_IPC   IDC_TYPE(0x4)
	IDC IPC processing message.
#define	IDC_MSG_IPC_EXT   IDC_EXTENSION(0x0)
#define	IDC_MSG_PARAMS   IDC_TYPE(0x5)
	IDC component params message.
#define	IDC_MSG_PARAMS_EXT(x)
#define	IDC_MSG_PREPARE   IDC_TYPE(0x6)
	IDC component prepare message.
#define	IDC_MSG_PREPARE_EXT(x)
#define	IDC_MSG_TRIGGER   IDC_TYPE(0x7)
	IDC component trigger message.
#define	IDC_MSG_TRIGGER_EXT(x)
#define	IDC_MSG_RESET   IDC_TYPE(0x8)
	IDC component reset message.
#define	IDC_MSG_RESET_EXT(x)
#define	IDC_MSG_PREPARE_D0ix   IDC_TYPE(0x9)
	IDC prepare D0ix message.
#define	IDC_MSG_PREPARE_D0ix_EXT   IDC_EXTENSION(0x0)
#define	IDC_MSG_SECONDARY_CORE_CRASHED   IDC_TYPE(0xA)
	IDC secondary core crashed notify message.
#define	IDC_MSG_SECONDARY_CORE_CRASHED_EXT(x)
#define	IDC_MSG_AMS   IDC_TYPE(0xB)
	IDC process async msg.
#define	IDC_MSG_AMS_EXT   IDC_EXTENSION(0x0)
#define	IDC_HEADER_TO_AMS_SLOT_MASK(x)
#define	IDC_MSG_BIND   IDC_TYPE(0xD)
#define	IDC_MSG_UNBIND   IDC_TYPE(0xE)
#define	IDC_MSG_GET_ATTRIBUTE   IDC_TYPE(0xF)
#define	IDC_MSG_FREE   IDC_TYPE(0x10)
	IDC component delete message.
#define	IDC_MSG_FREE_EXT(x)
#define	IDC_MSG_PPL_STATE   IDC_TYPE(0xC)
	IDC pipeline set state message.
#define	IDC_PPL_STATE_PPL_ID_SHIFT   0
#define	IDC_PPL_STATE_PPL_ID_MASK   MASK(23, 0)
#define	IDC_PPL_STATE_PHASE_SHIFT   24
#define	IDC_PPL_STATE_PHASE_MASK   MASK(27, 24)
#define	IDC_PPL_STATE_PHASE_SET(x)
#define	IDC_PPL_STATE_PHASE_GET(x)
#define	IDC_PPL_STATE_PHASE_PREPARE   BIT(0)
#define	IDC_PPL_STATE_PHASE_TRIGGER   BIT(1)
#define	IDC_PPL_STATE_PHASE_ONESHOT
#define	IDC_MSG_PPL_STATE_EXT(_ppl_id, _action)
#define	IDC_SCC_CORE_SHIFT   0
	IDC_MSG_SECONDARY_CORE_CRASHED header fields.
#define	IDC_SCC_CORE_MASK   0xff
#define	IDC_SCC_CORE(x)
#define	IDC_SCC_REASON_SHIFT   8
#define	IDC_SCC_REASON_MASK   0xff
#define	IDC_SCC_REASON(x)
#define	IDC_SCC_REASON_WATCHDOG   0x00
	Secondary core crash reasons.
#define	IDC_SCC_REASON_EXCEPTION   0x01
#define	iTS(x)
	Decodes IDC message type.
#define	IDC_MAX_PAYLOAD_SIZE   (DCACHE_LINE_SIZE * 2)
	Max IDC message payload size in bytes.
#define	IDC_FREE_IRQ_ONLY   BIT(0)
	IDC free function flags.

Functions
static struct idc_payload *	idc_payload_get (struct idc *idc, uint32_t core)
void	idc_enable_interrupts (int target_core, int source_core)
void	idc_free (uint32_t flags)
int	platform_idc_init (void)
int	platform_idc_restore (void)
enum task_state	idc_do_cmd (void *data)
void	idc_cmd (struct idc_msg *msg)
int	idc_msg_status_get (uint32_t core)
int	idc_init (void)
void	idc_init_thread (void)
int	idc_send_msg (struct idc_msg *msg, uint32_t mode)
struct idc **	idc_get (void)

Variables
struct tr_ctx	idc_tr

Detailed Description

IDC header file.

Authors

Tomasz Lauda tomas.nosp@m.z.la.nosp@m.uda@l.nosp@m.inux.nosp@m..inte.nosp@m.l.co.nosp@m.m

Macro Definition Documentation

IDC_BLOCKING

#define IDC_BLOCKING   0

IDC send blocking flag.

IDC_DEADLINE

#define IDC_DEADLINE   100

IDC task deadline.

IDC_EXTENSION

#define IDC_EXTENSION

(

x

)

Value:

((x) & IDC_EXTENSION_MASK)

IDC_EXTENSION_MASK

#define IDC_EXTENSION_MASK   0x3fffffff

IDC message extension.

IDC_FREE_IRQ_ONLY

#define IDC_FREE_IRQ_ONLY   BIT(0)

IDC free function flags.

disable only irqs

IDC_HEADER

#define IDC_HEADER

(

x

)

Value:

((x) & IDC_HEADER_MASK)

IDC_HEADER_MASK

#define IDC_HEADER_MASK   0xffffff

IDC message header.

IDC_HEADER_TO_AMS_SLOT_MASK

#define IDC_HEADER_TO_AMS_SLOT_MASK

(

x

)

Value:

(x & 0xFFFF)

IDC_MAX_PAYLOAD_SIZE

#define IDC_MAX_PAYLOAD_SIZE   (DCACHE_LINE_SIZE * 2)

Max IDC message payload size in bytes.

IDC_MSG_AMS

#define IDC_MSG_AMS   IDC_TYPE(0xB)

IDC process async msg.

IDC_MSG_AMS_EXT

#define IDC_MSG_AMS_EXT   IDC_EXTENSION(0x0)

IDC_MSG_BIND

#define IDC_MSG_BIND   IDC_TYPE(0xD)

IDC_MSG_FREE

#define IDC_MSG_FREE   IDC_TYPE(0x10)

IDC component delete message.

IDC_MSG_FREE_EXT

#define IDC_MSG_FREE_EXT

(

x

)

Value:

IDC_EXTENSION(x)

IDC_MSG_GET_ATTRIBUTE

#define IDC_MSG_GET_ATTRIBUTE   IDC_TYPE(0xF)

IDC_MSG_IPC

#define IDC_MSG_IPC   IDC_TYPE(0x4)

IDC IPC processing message.

IDC_MSG_IPC_EXT

#define IDC_MSG_IPC_EXT   IDC_EXTENSION(0x0)

IDC_MSG_NOTIFY

#define IDC_MSG_NOTIFY   IDC_TYPE(0x3)

IDC notify message.

IDC_MSG_NOTIFY_EXT

#define IDC_MSG_NOTIFY_EXT   IDC_EXTENSION(0x0)

IDC_MSG_PARAMS

#define IDC_MSG_PARAMS   IDC_TYPE(0x5)

IDC component params message.

IDC_MSG_PARAMS_EXT

#define IDC_MSG_PARAMS_EXT

(

x

)

Value:

IDC_EXTENSION(x)

IDC_MSG_POWER_DOWN

#define IDC_MSG_POWER_DOWN   IDC_TYPE(0x2)

IDC power down message.

IDC_MSG_POWER_DOWN_EXT

#define IDC_MSG_POWER_DOWN_EXT   IDC_EXTENSION(0x0)

IDC_MSG_POWER_UP

#define IDC_MSG_POWER_UP

Value:

                    (IDC_TYPE(0x1) | \
                    IDC_HEADER(IDC_ROM_WAKE_VERSION))

IDC power up message.

IDC_MSG_POWER_UP_EXT

#define IDC_MSG_POWER_UP_EXT   IDC_EXTENSION(SOF_TEXT_START >> 2)

IDC_MSG_PPL_STATE

#define IDC_MSG_PPL_STATE   IDC_TYPE(0xC)

IDC pipeline set state message.

IDC_MSG_PPL_STATE_EXT

#define IDC_MSG_PPL_STATE_EXT	(		_ppl_id,
			_action )

Value:

                    IDC_EXTENSION(((_ppl_id) & IDC_PPL_STATE_PPL_ID_MASK) | \
                    IDC_PPL_STATE_PHASE_SET(_action))

IDC_MSG_PREPARE

#define IDC_MSG_PREPARE   IDC_TYPE(0x6)

IDC component prepare message.

IDC_MSG_PREPARE_D0ix

#define IDC_MSG_PREPARE_D0ix   IDC_TYPE(0x9)

IDC prepare D0ix message.

IDC_MSG_PREPARE_D0ix_EXT

#define IDC_MSG_PREPARE_D0ix_EXT   IDC_EXTENSION(0x0)

IDC_MSG_PREPARE_EXT

#define IDC_MSG_PREPARE_EXT

(

x

)

Value:

IDC_EXTENSION(x)

IDC_MSG_RESET

#define IDC_MSG_RESET   IDC_TYPE(0x8)

IDC component reset message.

IDC_MSG_RESET_EXT

#define IDC_MSG_RESET_EXT

(

x

)

Value:

IDC_EXTENSION(x)

IDC_MSG_SECONDARY_CORE_CRASHED

#define IDC_MSG_SECONDARY_CORE_CRASHED   IDC_TYPE(0xA)

IDC secondary core crashed notify message.

IDC_MSG_SECONDARY_CORE_CRASHED_EXT

#define IDC_MSG_SECONDARY_CORE_CRASHED_EXT

(

x

)

Value:

IDC_EXTENSION(x)

IDC_MSG_TRIGGER

#define IDC_MSG_TRIGGER   IDC_TYPE(0x7)

IDC component trigger message.

IDC_MSG_TRIGGER_EXT

#define IDC_MSG_TRIGGER_EXT

(

x

)

Value:

IDC_EXTENSION(x)

IDC_MSG_UNBIND

#define IDC_MSG_UNBIND   IDC_TYPE(0xE)

IDC_NON_BLOCKING

#define IDC_NON_BLOCKING   1

IDC send non-blocking flag.

IDC_POWER_DOWN

#define IDC_POWER_DOWN   3

IDC send core power down flag.

IDC_POWER_UP

#define IDC_POWER_UP   2

IDC send core power up flag.

IDC_PPL_STATE_PHASE_GET

#define IDC_PPL_STATE_PHASE_GET

(

x

)

Value:

                     (((x) & IDC_PPL_STATE_PHASE_MASK) >>   \
                     IDC_PPL_STATE_PHASE_SHIFT)

IDC_PPL_STATE_PHASE_MASK

#define IDC_PPL_STATE_PHASE_MASK   MASK(27, 24)

IDC_PPL_STATE_PHASE_ONESHOT

#define IDC_PPL_STATE_PHASE_ONESHOT

Value:

                     (IDC_PPL_STATE_PHASE_PREPARE |     \
                     IDC_PPL_STATE_PHASE_TRIGGER)

IDC_PPL_STATE_PHASE_PREPARE

#define IDC_PPL_STATE_PHASE_PREPARE   BIT(0)

IDC_PPL_STATE_PHASE_SET

#define IDC_PPL_STATE_PHASE_SET

(

x

)

Value:

                     (((x) << IDC_PPL_STATE_PHASE_SHIFT) &  \
                     IDC_PPL_STATE_PHASE_MASK)

IDC_PPL_STATE_PHASE_SHIFT

#define IDC_PPL_STATE_PHASE_SHIFT   24

IDC_PPL_STATE_PHASE_TRIGGER

#define IDC_PPL_STATE_PHASE_TRIGGER   BIT(1)

IDC_PPL_STATE_PPL_ID_MASK

#define IDC_PPL_STATE_PPL_ID_MASK   MASK(23, 0)

IDC_PPL_STATE_PPL_ID_SHIFT

#define IDC_PPL_STATE_PPL_ID_SHIFT   0

IDC_ROM_WAKE_VERSION

#define IDC_ROM_WAKE_VERSION   0x2

ROM wake version parsed by ROM during core wake up.

IDC_SCC_CORE

#define IDC_SCC_CORE

(

x

)

Value:

(((x) & IDC_SCC_CORE_MASK) << IDC_SCC_CORE_SHIFT)

IDC_SCC_CORE_MASK

#define IDC_SCC_CORE_MASK   0xff

IDC_SCC_CORE_SHIFT

#define IDC_SCC_CORE_SHIFT   0

IDC_MSG_SECONDARY_CORE_CRASHED header fields.

IDC_SCC_REASON

#define IDC_SCC_REASON

(

x

)

Value:

(((x) & IDC_SCC_REASON_MASK) << IDC_SCC_REASON_SHIFT)

IDC_SCC_REASON_EXCEPTION

#define IDC_SCC_REASON_EXCEPTION   0x01

IDC_SCC_REASON_MASK

#define IDC_SCC_REASON_MASK   0xff

IDC_SCC_REASON_SHIFT

#define IDC_SCC_REASON_SHIFT   8

IDC_SCC_REASON_WATCHDOG

#define IDC_SCC_REASON_WATCHDOG   0x00

Secondary core crash reasons.

IDC_TYPE

#define IDC_TYPE

(

x

)

Value:

(((x) & IDC_TYPE_MASK) << IDC_TYPE_SHIFT)

IDC_TYPE_MASK

#define IDC_TYPE_MASK   0x7f

IDC_TYPE_SHIFT

#define IDC_TYPE_SHIFT   24

IDC message type.

iTS

#define iTS

(

x

)

Value:

(((x) >> IDC_TYPE_SHIFT) & IDC_TYPE_MASK)

Decodes IDC message type.

Function Documentation

idc_cmd()

void idc_cmd

(

struct idc_msg *

msg

)

idc_do_cmd()

enum task_state idc_do_cmd

(

void *

data

)

idc_enable_interrupts()

void idc_enable_interrupts	(	int	target_core,
		int	source_core )

idc_free()

void idc_free

(

uint32_t

flags

)

idc_get()

struct idc ** idc_get

(

void

)

idc_init()

int idc_init

(

void

)

idc_init_thread()

void idc_init_thread

(

void

)

idc_msg_status_get()

int idc_msg_status_get

(

uint32_t

core

)

idc_payload_get()

struct idc_payload * idc_payload_get ( struct idc * idc, uint32_t core )

inlinestatic

idc_send_msg()

int idc_send_msg	(	struct idc_msg *	msg,
		uint32_t	mode )

platform_idc_init()

int platform_idc_init

(

void

)

platform_idc_restore()

int platform_idc_restore

(

void

)

Variable Documentation

idc_tr

struct tr_ctx idc_tr
