IPC command header. More...

Include dependency graph for header.h:

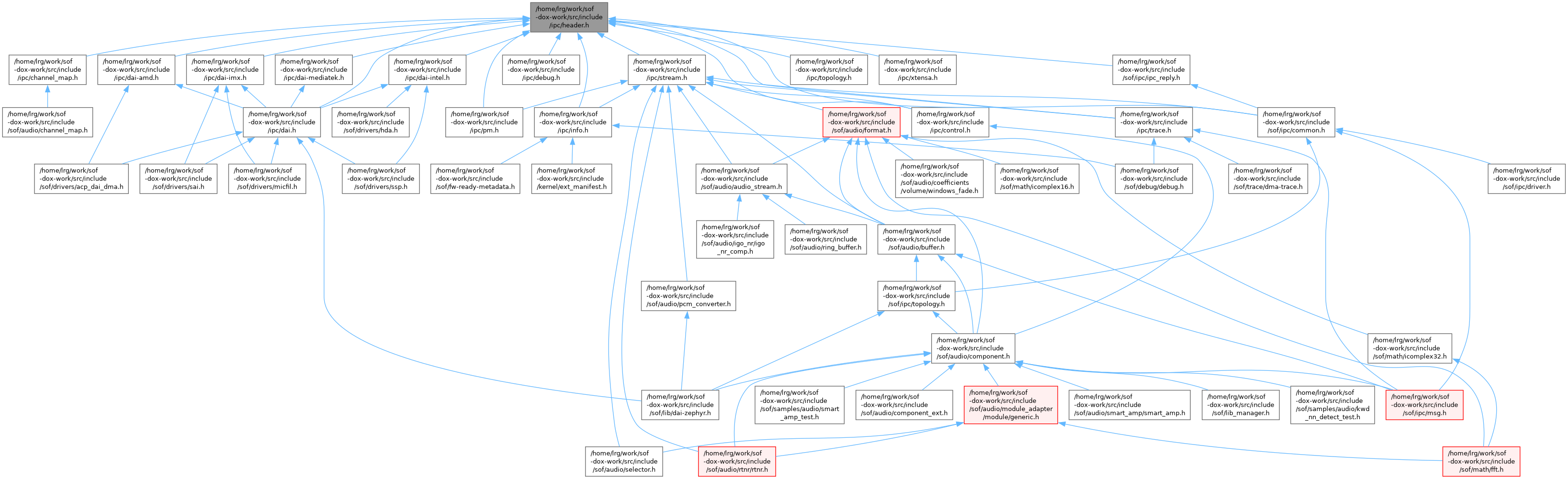

This graph shows which files directly or indirectly include this file:

Data Structures
struct	sof_ipc_hdr
	Structure Header - Header for all IPC structures except command structs. More...
struct	sof_ipc_cmd_hdr
	Command Header - Header for all IPC commands. More...
struct	sof_ipc_reply
	Generic reply message. More...
struct	sof_ipc_compound_hdr
	Compound commands - SOF_IPC_GLB_COMPOUND. More...
struct	sof_ipc_dsp_oops_arch_hdr
	OOPS header architecture specific data. More...
struct	sof_ipc_dsp_oops_plat_hdr
	OOPS header platform specific data. More...

Macros
#define	ipc_to_hdr(x)
Global Message - Generic
#define	SOF_GLB_TYPE_SHIFT 28
	Shift-left bits to extract the global cmd type.
#define	SOF_GLB_TYPE_MASK (0xfUL << SOF_GLB_TYPE_SHIFT)
#define	SOF_GLB_TYPE(x)
Command Message - Generic
#define	SOF_CMD_TYPE_SHIFT 16
	Shift-left bits to extract the command type.
#define	SOF_CMD_TYPE_MASK (0xfffL << SOF_CMD_TYPE_SHIFT)
#define	SOF_CMD_TYPE(x)
Global Message Types
#define	SOF_IPC_GLB_REPLY SOF_GLB_TYPE(0x1U)
#define	SOF_IPC_GLB_COMPOUND SOF_GLB_TYPE(0x2U)
#define	SOF_IPC_GLB_TPLG_MSG SOF_GLB_TYPE(0x3U)
#define	SOF_IPC_GLB_PM_MSG SOF_GLB_TYPE(0x4U)
#define	SOF_IPC_GLB_COMP_MSG SOF_GLB_TYPE(0x5U)
#define	SOF_IPC_GLB_STREAM_MSG SOF_GLB_TYPE(0x6U)
#define	SOF_IPC_FW_READY SOF_GLB_TYPE(0x7U)
#define	SOF_IPC_GLB_DAI_MSG SOF_GLB_TYPE(0x8U)
#define	SOF_IPC_GLB_TRACE_MSG SOF_GLB_TYPE(0x9U)
#define	SOF_IPC_GLB_GDB_DEBUG SOF_GLB_TYPE(0xAU)
#define	SOF_IPC_GLB_TEST SOF_GLB_TYPE(0xBU)
#define	SOF_IPC_GLB_PROBE SOF_GLB_TYPE(0xCU)
#define	SOF_IPC_GLB_DEBUG SOF_GLB_TYPE(0xDU)
DSP Command: Topology

#define	SOF_IPC_TPLG_COMP_NEW SOF_CMD_TYPE(0x001)
#define	SOF_IPC_TPLG_COMP_FREE SOF_CMD_TYPE(0x002)
#define	SOF_IPC_TPLG_COMP_CONNECT SOF_CMD_TYPE(0x003)
#define	SOF_IPC_TPLG_PIPE_NEW SOF_CMD_TYPE(0x010)
#define	SOF_IPC_TPLG_PIPE_FREE SOF_CMD_TYPE(0x011)
#define	SOF_IPC_TPLG_PIPE_CONNECT SOF_CMD_TYPE(0x012)
#define	SOF_IPC_TPLG_PIPE_COMPLETE SOF_CMD_TYPE(0x013)
#define	SOF_IPC_TPLG_BUFFER_NEW SOF_CMD_TYPE(0x020)
#define	SOF_IPC_TPLG_BUFFER_FREE SOF_CMD_TYPE(0x021)
DSP Command: PM
#define	SOF_IPC_PM_CTX_SAVE SOF_CMD_TYPE(0x001)
#define	SOF_IPC_PM_CTX_RESTORE SOF_CMD_TYPE(0x002)
#define	SOF_IPC_PM_CTX_SIZE SOF_CMD_TYPE(0x003)
#define	SOF_IPC_PM_CLK_SET SOF_CMD_TYPE(0x004)
#define	SOF_IPC_PM_CLK_GET SOF_CMD_TYPE(0x005)
#define	SOF_IPC_PM_CLK_REQ SOF_CMD_TYPE(0x006)
#define	SOF_IPC_PM_CORE_ENABLE SOF_CMD_TYPE(0x007)
#define	SOF_IPC_PM_GATE SOF_CMD_TYPE(0x008)
DSP Command: Component runtime config - multiple different types
#define	SOF_IPC_COMP_SET_VALUE SOF_CMD_TYPE(0x001)
#define	SOF_IPC_COMP_GET_VALUE SOF_CMD_TYPE(0x002)
#define	SOF_IPC_COMP_SET_DATA SOF_CMD_TYPE(0x003)
#define	SOF_IPC_COMP_GET_DATA SOF_CMD_TYPE(0x004)
#define	SOF_IPC_COMP_NOTIFICATION SOF_CMD_TYPE(0x005)
DSP Command: DAI messages
#define	SOF_IPC_DAI_CONFIG SOF_CMD_TYPE(0x001)
#define	SOF_IPC_DAI_LOOPBACK SOF_CMD_TYPE(0x002)
DSP Command: Stream
#define	SOF_IPC_STREAM_PCM_PARAMS SOF_CMD_TYPE(0x001)
#define	SOF_IPC_STREAM_PCM_PARAMS_REPLY SOF_CMD_TYPE(0x002)
#define	SOF_IPC_STREAM_PCM_FREE SOF_CMD_TYPE(0x003)
#define	SOF_IPC_STREAM_TRIG_START SOF_CMD_TYPE(0x004)
#define	SOF_IPC_STREAM_TRIG_STOP SOF_CMD_TYPE(0x005)
#define	SOF_IPC_STREAM_TRIG_PAUSE SOF_CMD_TYPE(0x006)
#define	SOF_IPC_STREAM_TRIG_RELEASE SOF_CMD_TYPE(0x007)
#define	SOF_IPC_STREAM_TRIG_DRAIN SOF_CMD_TYPE(0x008)
#define	SOF_IPC_STREAM_TRIG_XRUN SOF_CMD_TYPE(0x009)
#define	SOF_IPC_STREAM_POSITION SOF_CMD_TYPE(0x00a)
#define	SOF_IPC_STREAM_VORBIS_PARAMS SOF_CMD_TYPE(0x010)
#define	SOF_IPC_STREAM_VORBIS_FREE SOF_CMD_TYPE(0x011)
DSP Command: Trace and debug
#define	SOF_IPC_TRACE_DMA_PARAMS SOF_CMD_TYPE(0x001)
#define	SOF_IPC_TRACE_DMA_POSITION SOF_CMD_TYPE(0x002)
#define	SOF_IPC_TRACE_DMA_PARAMS_EXT SOF_CMD_TYPE(0x003)
#define	SOF_IPC_TRACE_FILTER_UPDATE SOF_CMD_TYPE(0x004)
	ABI3.17.
#define	SOF_IPC_TRACE_DMA_FREE SOF_CMD_TYPE(0x005)
	ABI3.20.
DSP Command: Probes
#define	SOF_IPC_PROBE_INIT SOF_CMD_TYPE(0x001)
#define	SOF_IPC_PROBE_DEINIT SOF_CMD_TYPE(0x002)
#define	SOF_IPC_PROBE_DMA_ADD SOF_CMD_TYPE(0x003)
#define	SOF_IPC_PROBE_DMA_INFO SOF_CMD_TYPE(0x004)
#define	SOF_IPC_PROBE_DMA_REMOVE SOF_CMD_TYPE(0x005)
#define	SOF_IPC_PROBE_POINT_ADD SOF_CMD_TYPE(0x006)
#define	SOF_IPC_PROBE_POINT_INFO SOF_CMD_TYPE(0x007)
#define	SOF_IPC_PROBE_POINT_REMOVE SOF_CMD_TYPE(0x008)
DSP Command: Debug - additional services
#define	SOF_IPC_DEBUG_MEM_USAGE SOF_CMD_TYPE(0x001)
DSP Command: Test - Debug build only
#define	SOF_IPC_TEST_IPC_FLOOD SOF_CMD_TYPE(0x001)
IPC Message Definitions
#define	SOF_IPC_MESSAGE_ID(x)
	Get message component id.
#define	SOF_IPC_MSG_MAX_SIZE 384
	Maximum message size for mailbox Tx/Rx.

Detailed Description

IPC command header.

Author: Liam Girdwood liam..nosp@m.r.gi.nosp@m.rdwoo.nosp@m.d@li.nosp@m.nux.i.nosp@m.ntel.nosp@m..com; Keyon Jie yang..nosp@m.jie@.nosp@m.linux.nosp@m..int.nosp@m.el.co.nosp@m.m

Macro Definition Documentation

◆ ipc_to_hdr

#define ipc_to_hdr ( x )

Value:

((struct ipc_cmd_hdr *)x)
