stream.h File Reference
IPC definitions for streams. More...

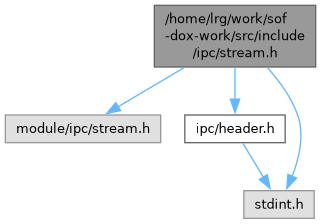

Include dependency graph for stream.h:

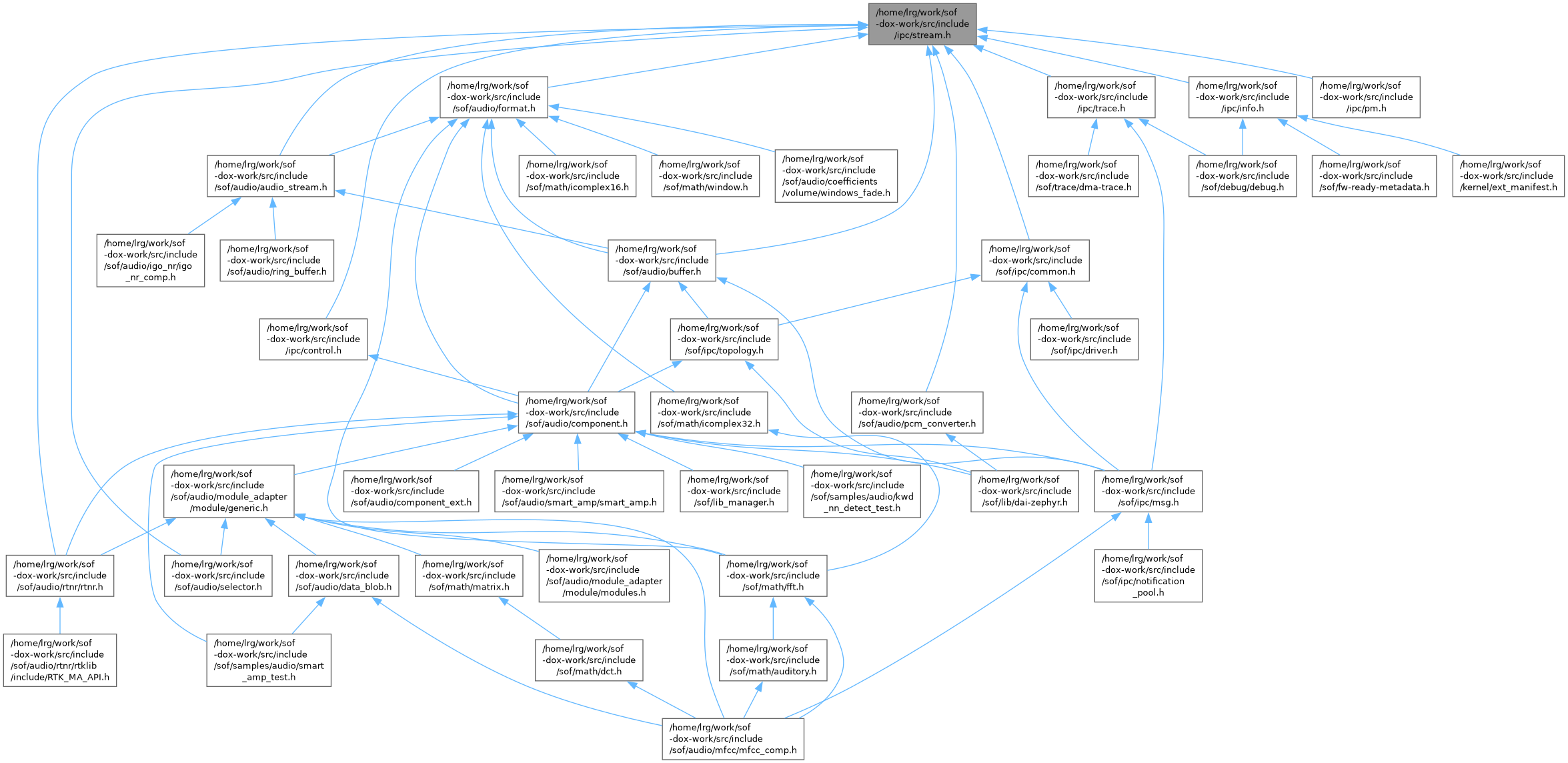

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | sof_ipc_host_buffer |
| struct | sof_ipc_stream_params |
| struct | sof_ipc_pcm_params |
| struct | sof_ipc_pcm_params_reply |
| struct | sof_ipc_stream |
| struct | sof_ipc_stream_posn |
Macros | |
| #define | SOF_RATE_8000 (1 << 0) |
| 8000Hz | |
| #define | SOF_RATE_11025 (1 << 1) |
| 11025Hz | |
| #define | SOF_RATE_12000 (1 << 2) |
| 12000Hz | |
| #define | SOF_RATE_16000 (1 << 3) |
| 16000Hz | |
| #define | SOF_RATE_22050 (1 << 4) |
| 22050Hz | |
| #define | SOF_RATE_24000 (1 << 5) |
| 24000Hz | |
| #define | SOF_RATE_32000 (1 << 6) |
| 32000Hz | |
| #define | SOF_RATE_44100 (1 << 7) |
| 44100Hz | |
| #define | SOF_RATE_48000 (1 << 8) |
| 48000Hz | |
| #define | SOF_RATE_64000 (1 << 9) |
| 64000Hz | |
| #define | SOF_RATE_88200 (1 << 10) |
| 88200Hz | |
| #define | SOF_RATE_96000 (1 << 11) |
| 96000Hz | |
| #define | SOF_RATE_176400 (1 << 12) |
| 176400Hz | |
| #define | SOF_RATE_192000 (1 << 13) |
| 192000Hz | |
| #define | SOF_RATE_CONTINUOUS (1 << 30) |
| range | |
| #define | SOF_RATE_KNOT (1 << 31) |
| non-continuous | |
| #define | SOF_PCM_FLAG_XRUN_STOP (1 << 0) |
| Stop on any XRUN. | |
| #define | SOF_TIME_HOST_SYNC (1 << 0) |
| #define | SOF_TIME_DAI_SYNC (1 << 1) |
| #define | SOF_TIME_WALL_SYNC (1 << 2) |
| #define | SOF_TIME_STAMP_SYNC (1 << 3) |
| #define | SOF_TIME_HOST_VALID (1 << 8) |
| #define | SOF_TIME_DAI_VALID (1 << 9) |
| #define | SOF_TIME_WALL_VALID (1 << 10) |
| #define | SOF_TIME_STAMP_VALID (1 << 11) |
| #define | SOF_TIME_HOST_64 (1 << 16) |
| #define | SOF_TIME_DAI_64 (1 << 17) |
| #define | SOF_TIME_WALL_64 (1 << 18) |
| #define | SOF_TIME_STAMP_64 (1 << 19) |
Enumerations | |
| enum | sof_ipc_buffer_format { SOF_IPC_BUFFER_INTERLEAVED , SOF_IPC_BUFFER_NONINTERLEAVED } |
| enum | sof_ipc_stream_direction { SOF_IPC_STREAM_PLAYBACK = 0 , SOF_IPC_STREAM_CAPTURE } |
Detailed Description
IPC definitions for streams.
Macro Definition Documentation
◆ SOF_PCM_FLAG_XRUN_STOP
| #define SOF_PCM_FLAG_XRUN_STOP (1 << 0) |
Stop on any XRUN.
◆ SOF_RATE_11025
| #define SOF_RATE_11025 (1 << 1) |
11025Hz
◆ SOF_RATE_12000
| #define SOF_RATE_12000 (1 << 2) |
12000Hz
◆ SOF_RATE_16000
| #define SOF_RATE_16000 (1 << 3) |
16000Hz
◆ SOF_RATE_176400
| #define SOF_RATE_176400 (1 << 12) |
176400Hz
◆ SOF_RATE_192000
| #define SOF_RATE_192000 (1 << 13) |
192000Hz
◆ SOF_RATE_22050
| #define SOF_RATE_22050 (1 << 4) |
22050Hz
◆ SOF_RATE_24000
| #define SOF_RATE_24000 (1 << 5) |
24000Hz
◆ SOF_RATE_32000
| #define SOF_RATE_32000 (1 << 6) |
32000Hz
◆ SOF_RATE_44100
| #define SOF_RATE_44100 (1 << 7) |
44100Hz
◆ SOF_RATE_48000
| #define SOF_RATE_48000 (1 << 8) |
48000Hz
◆ SOF_RATE_64000
| #define SOF_RATE_64000 (1 << 9) |
64000Hz
◆ SOF_RATE_8000
| #define SOF_RATE_8000 (1 << 0) |
8000Hz
◆ SOF_RATE_88200
| #define SOF_RATE_88200 (1 << 10) |
88200Hz
◆ SOF_RATE_96000
| #define SOF_RATE_96000 (1 << 11) |
96000Hz
◆ SOF_RATE_CONTINUOUS
| #define SOF_RATE_CONTINUOUS (1 << 30) |
range
◆ SOF_RATE_KNOT
| #define SOF_RATE_KNOT (1 << 31) |
non-continuous
◆ SOF_TIME_DAI_64
| #define SOF_TIME_DAI_64 (1 << 17) |
◆ SOF_TIME_DAI_SYNC
| #define SOF_TIME_DAI_SYNC (1 << 1) |
◆ SOF_TIME_DAI_VALID
| #define SOF_TIME_DAI_VALID (1 << 9) |
◆ SOF_TIME_HOST_64
| #define SOF_TIME_HOST_64 (1 << 16) |
◆ SOF_TIME_HOST_SYNC
| #define SOF_TIME_HOST_SYNC (1 << 0) |
◆ SOF_TIME_HOST_VALID
| #define SOF_TIME_HOST_VALID (1 << 8) |
◆ SOF_TIME_STAMP_64
| #define SOF_TIME_STAMP_64 (1 << 19) |
◆ SOF_TIME_STAMP_SYNC
| #define SOF_TIME_STAMP_SYNC (1 << 3) |
◆ SOF_TIME_STAMP_VALID
| #define SOF_TIME_STAMP_VALID (1 << 11) |
◆ SOF_TIME_WALL_64
| #define SOF_TIME_WALL_64 (1 << 18) |
◆ SOF_TIME_WALL_SYNC
| #define SOF_TIME_WALL_SYNC (1 << 2) |
◆ SOF_TIME_WALL_VALID
| #define SOF_TIME_WALL_VALID (1 << 10) |
