msg.h File Reference

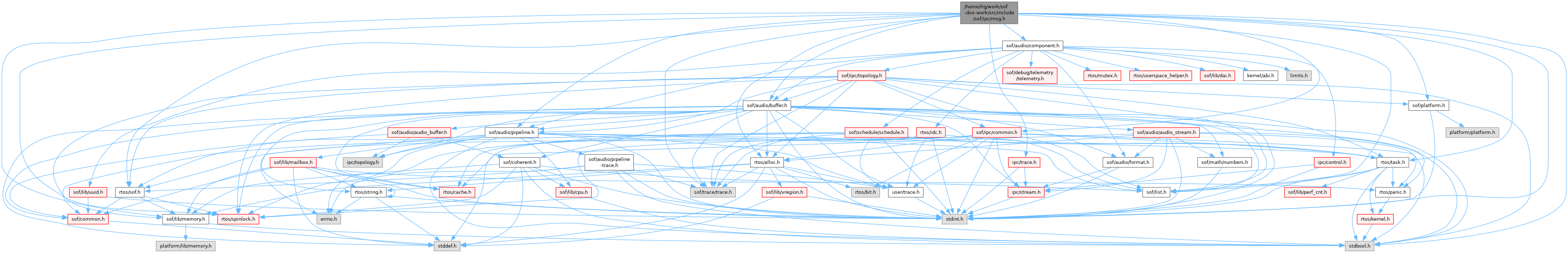

Include dependency graph for msg.h:

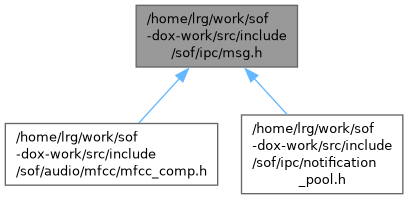

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ipc_msg

Functions
struct ipc_msg *	ipc_msg_w_ext_init (struct k_heap *heap, uint32_t header, uint32_t extension, uint32_t size)
	Initialize a new IPC message using a specific heap.
static struct ipc_msg *	ipc_msg_init (struct k_heap *heap, uint32_t header, uint32_t size)
	Initialize a new IPC message using a specific heap.
void	ipc_msg_list_remove (struct ipc_msg *msg)
	Remove an IPC message from the send queue.
static void	ipc_msg_free (struct ipc_msg *msg)
	Frees IPC message header and data.
void	ipc_send_queued_msg (void)
	Sends the next message in the IPC message queue.
void	ipc_msg_send (struct ipc_msg *msg, void *data, bool high_priority)
	Queues an IPC message for transmission.
void	ipc_msg_send_direct (struct ipc_msg *msg, void *data)
	Send an IPC message directly for emergency.
void	ipc_build_stream_posn (struct sof_ipc_stream_posn *posn, uint32_t type, uint32_t id)
	Build stream position IPC message.
void	ipc_build_comp_event (struct sof_ipc_comp_event *event, uint32_t type, uint32_t id)
	Build component event IPC message.
bool	ipc_trigger_trace_xfer (uint32_t avail)
	Check if trace buffer is ready for transmission.
void	ipc_build_trace_posn (struct sof_ipc_dma_trace_posn *posn)
	Build trace position IPC message.

Function Documentation

ipc_build_comp_event()

void ipc_build_comp_event	(	struct sof_ipc_comp_event *	event,
		uint32_t	type,
		uint32_t	id
	)

Build component event IPC message.

Parameters

[in,out]	event	Component event message
[in]	type	Component event type
[in]	id	Component ID.

ipc_build_stream_posn()

void ipc_build_stream_posn	(	struct sof_ipc_stream_posn *	posn,
		uint32_t	type,
		uint32_t	id
	)

Build stream position IPC message.

Parameters

[in,out]	posn	Stream position message
[in]	type	Stream message type
[in]	id	Stream ID.

ipc_build_trace_posn()

void ipc_build_trace_posn

(

struct sof_ipc_dma_trace_posn *

posn

)

Build trace position IPC message.

Parameters

[in,out]

posn

Trace position message

ipc_msg_free()

static void ipc_msg_free ( struct ipc_msg *  msg )

inlinestatic

Frees IPC message header and data.

Parameters

msg	The IPC message to be freed.

ipc_msg_init()

static struct ipc_msg * ipc_msg_init ( struct k_heap *  heap, uint32_t  header, uint32_t  size  )

inlinestatic

Initialize a new IPC message using a specific heap.

Parameters

heap	Heap to allocate from (NULL = default kernel heap)
header	Message header metadata
size	Message data size in bytes.

Returns

New IPC message.

ipc_msg_list_remove()

void ipc_msg_list_remove

(

struct ipc_msg *

msg

)

Remove an IPC message from the send queue.

Acquires the IPC lock and removes the message from its list. Safe to call from userspace.

Parameters

msg	The IPC message to remove from the queue.

ipc_msg_send()

void ipc_msg_send	(	struct ipc_msg *	msg,
		void *	data,
		bool	high_priority
	)

Queues an IPC message for transmission.

Parameters

msg	The IPC message.
data	The message data.
high_priority	True if a high priority message.

ipc_msg_send_direct()

void ipc_msg_send_direct	(	struct ipc_msg *	msg,
		void *	data
	)

Send an IPC message directly for emergency.

Parameters

msg	The IPC message to be freed.
data	The message data.

ipc_msg_w_ext_init()

struct ipc_msg * ipc_msg_w_ext_init	(	struct k_heap *	heap,
		uint32_t	header,
		uint32_t	extension,
		uint32_t	size
	)

Initialize a new IPC message using a specific heap.

Parameters

heap	Heap to allocate from (NULL = default kernel heap)
header	Message header metadata
extension	Message header extension metadata
size	Message data size in bytes.

Returns

New IPC message.

ipc_send_queued_msg()

void ipc_send_queued_msg

(

void

)

Sends the next message in the IPC message queue.

ipc_trigger_trace_xfer()

bool ipc_trigger_trace_xfer

(

uint32_t

avail

)

Check if trace buffer is ready for transmission.

Parameters

[in,out]

avail

Data available in trace buffer
