pcm_converter.h File Reference

PCM converter header file. More...

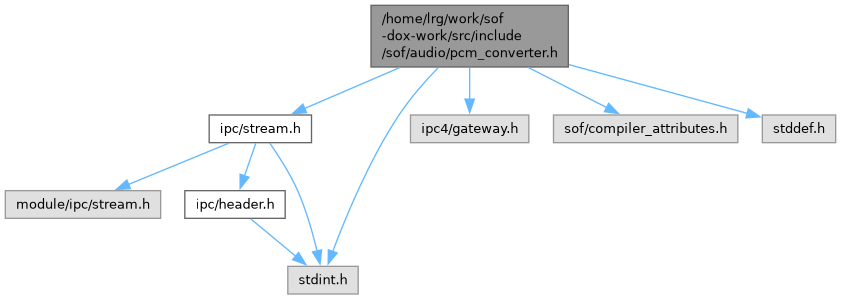

Include dependency graph for pcm_converter.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	pcm_func_map
	PCM conversion functions map. More...
struct	pcm_func_vc_map
	PCM conversion functions mapfor different size of valid bit and container. More...

Macros
#define	PCM_CONVERTER_GENERIC
#define	DUMMY_CHMAP   0x76543210

Typedefs
typedef int(*	pcm_converter_func) (const struct cir_buf_source *source, uint32_t src_channels, struct cir_buf_sink *sink, uint32_t sink_channels, size_t source_samples, uint32_t chmap)
	PCM conversion function interface for data in circular buffer.
typedef void(*	pcm_converter_lin_func) (const void *psrc, void *pdst, size_t samples)
	PCM conversion function interface for data in linear buffer.

Functions
static pcm_converter_func	pcm_get_conversion_function (enum sof_ipc_frame in, enum sof_ipc_frame out)
	Retrieves PCM conversion function.
static pcm_converter_func	pcm_get_conversion_vc_function (enum sof_ipc_frame in_bits, enum sof_ipc_frame valid_in_bits, enum sof_ipc_frame out_bits, enum sof_ipc_frame valid_out_bits, enum ipc4_gateway_type type, enum ipc4_direction_type dir)
	Retrieves PCM conversion function for different container size.
int	pcm_convert_as_linear (const struct cir_buf_source *source, size_t s_size_in, struct cir_buf_sink *sink, size_t s_size_out, size_t samples, pcm_converter_lin_func converter)
	Convert data from circular buffer using converter working on linear memory space.
int	just_copy_1b (const struct cir_buf_source *source, uint32_t src_channels, struct cir_buf_sink *sink, uint32_t sink_channels, size_t samples, uint32_t chmap)
int	just_copy_2b (const struct cir_buf_source *source, uint32_t src_channels, struct cir_buf_sink *sink, uint32_t sink_channels, size_t samples, uint32_t chmap)
int	just_copy_3b (const struct cir_buf_source *source, uint32_t src_channels, struct cir_buf_sink *sink, uint32_t sink_channels, size_t samples, uint32_t chmap)
int	just_copy_4b (const struct cir_buf_source *source, uint32_t src_channels, struct cir_buf_sink *sink, uint32_t sink_channels, size_t samples, uint32_t chmap)

Variables
const struct pcm_func_map	pcm_func_map []
	Map of formats with dedicated conversion functions.
const size_t	pcm_func_count
	Number of conversion functions.
const struct pcm_func_vc_map	pcm_func_vc_map []
	Map of formats with dedicated conversion functions.
const size_t	pcm_func_vc_count
	Number of conversion functions.

Detailed Description

PCM converter header file.

Authors

Tomasz Lauda tomas.nosp@m.z.la.nosp@m.uda@l.nosp@m.inux.nosp@m..inte.nosp@m.l.co.nosp@m.m

Macro Definition Documentation

DUMMY_CHMAP

#define DUMMY_CHMAP   0x76543210

PCM_CONVERTER_GENERIC

#define PCM_CONVERTER_GENERIC

Typedef Documentation

pcm_converter_func

typedef int(* pcm_converter_func) (const struct cir_buf_source *source, uint32_t src_channels, struct cir_buf_sink *sink, uint32_t sink_channels, size_t source_samples, uint32_t chmap)

PCM conversion function interface for data in circular buffer.

Parameters

source	circular-buffer source descriptor, read pointer is not modified
src_channels	number of channels in the source stream
sink	circular-buffer sink descriptor, write pointer is not modified
sink_channels	number of channels in the sink stream
source_samples	number of samples to convert, for remapping – number of source samples
chmap	channel map for remapping, ignored by non-remapping conversion func

Returns

error code or number of processed samples (source samples in case of remapping).

pcm_converter_lin_func

typedef void(* pcm_converter_lin_func) (const void *psrc, void *pdst, size_t samples)

PCM conversion function interface for data in linear buffer.

Parameters

psrc	linear memory region with samples to process
pdst	linear memory region for output
samples	number of samples to convert

Function Documentation

just_copy_1b()

int just_copy_1b	(	const struct cir_buf_source *	source,
		uint32_t	src_channels,
		struct cir_buf_sink *	sink,
		uint32_t	sink_channels,
		size_t	samples,
		uint32_t	chmap )

just_copy_2b()

int just_copy_2b	(	const struct cir_buf_source *	source,
		uint32_t	src_channels,
		struct cir_buf_sink *	sink,
		uint32_t	sink_channels,
		size_t	samples,
		uint32_t	chmap )

just_copy_3b()

int just_copy_3b	(	const struct cir_buf_source *	source,
		uint32_t	src_channels,
		struct cir_buf_sink *	sink,
		uint32_t	sink_channels,
		size_t	samples,
		uint32_t	chmap )

just_copy_4b()

int just_copy_4b	(	const struct cir_buf_source *	source,
		uint32_t	src_channels,
		struct cir_buf_sink *	sink,
		uint32_t	sink_channels,
		size_t	samples,
		uint32_t	chmap )

pcm_convert_as_linear()

int pcm_convert_as_linear	(	const struct cir_buf_source *	source,
		size_t	s_size_in,
		struct cir_buf_sink *	sink,
		size_t	s_size_out,
		size_t	samples,
		pcm_converter_lin_func	converter )

Convert data from circular buffer using converter working on linear memory space.

Parameters

source	circular-buffer source descriptor, read pointer is not modified
s_size_in	source sample size in bytes
sink	circular-buffer sink descriptor, write pointer is not modified
s_size_out	sink sample size in bytes
samples	number of samples to convert
converter	core conversion function working on linear memory regions

Returns

error code or number of processed samples

pcm_get_conversion_function()

pcm_converter_func pcm_get_conversion_function ( enum sof_ipc_frame in, enum sof_ipc_frame out )

inlinestatic

Retrieves PCM conversion function.

Parameters

[in]	in	Source frame format.
[in]	out	Sink frame format.

pcm_get_conversion_vc_function()

pcm_converter_func pcm_get_conversion_vc_function ( enum sof_ipc_frame in_bits, enum sof_ipc_frame valid_in_bits, enum sof_ipc_frame out_bits, enum sof_ipc_frame valid_out_bits, enum ipc4_gateway_type type, enum ipc4_direction_type dir )

inlinestatic

Retrieves PCM conversion function for different container size.

Parameters

in_bits	is source container format.
valid_in_bits	is source valid sample format.
out_bits	is sink container format.
valid_out_bits	is sink valid sample format.
type	is gateway type
dir	is playback or capture

Variable Documentation

pcm_func_count

const size_t pcm_func_count

extern

Number of conversion functions.

pcm_func_map

const struct pcm_func_map pcm_func_map[]

extern

Map of formats with dedicated conversion functions.

pcm_func_vc_count

const size_t pcm_func_vc_count

extern

Number of conversion functions.

pcm_func_vc_map

const struct pcm_func_vc_map pcm_func_vc_map[]

extern

Map of formats with dedicated conversion functions.
