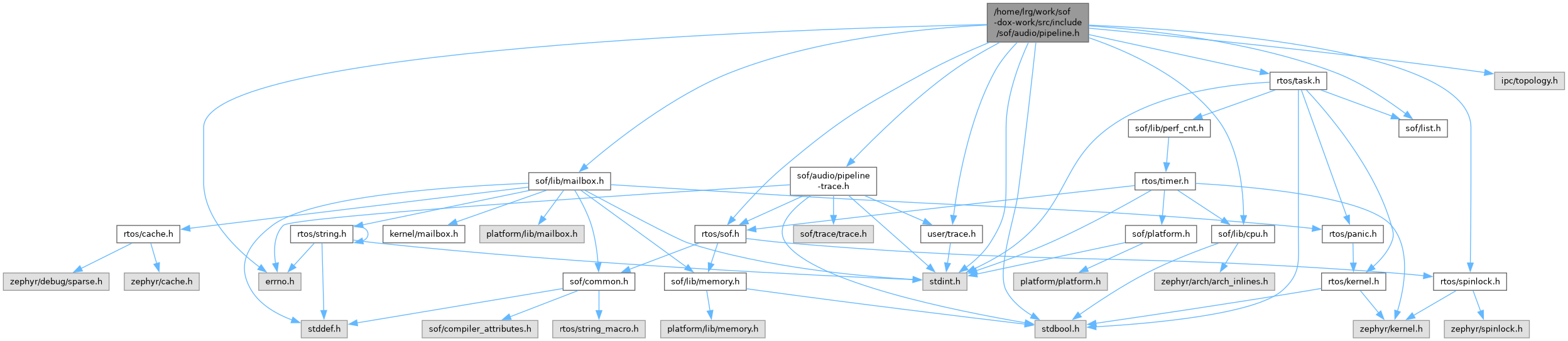

Include dependency graph for pipeline.h:

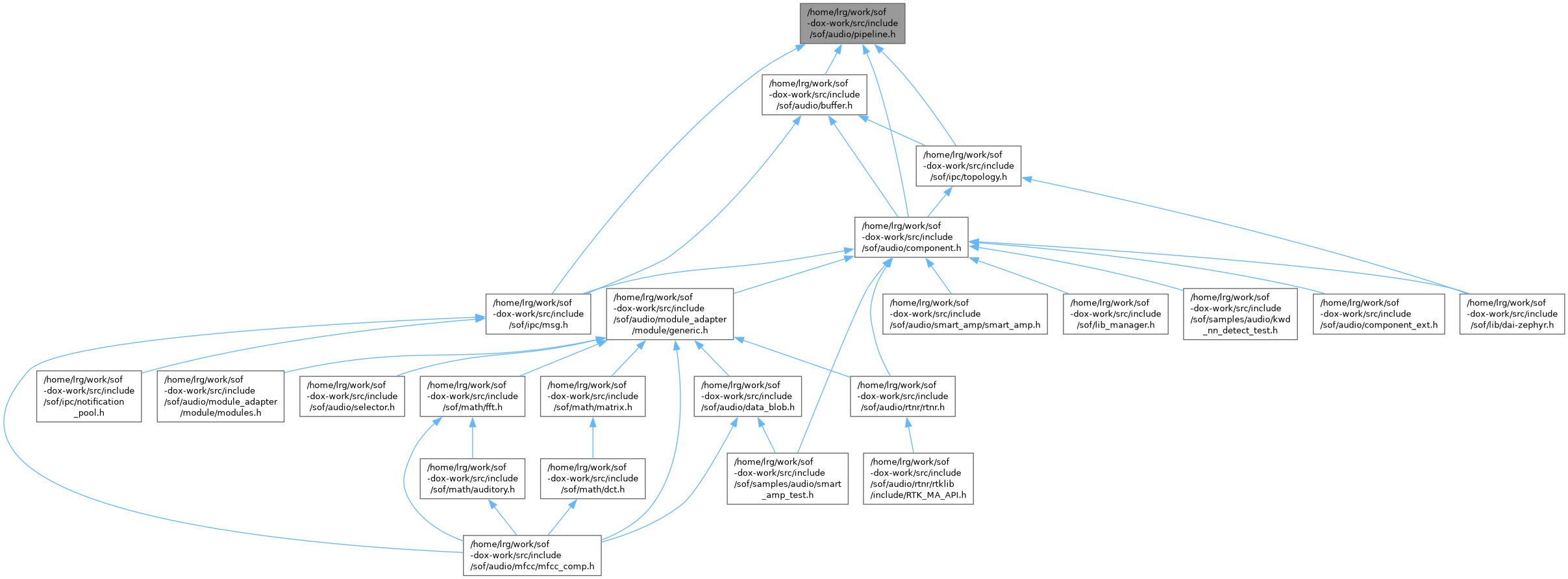

This graph shows which files directly or indirectly include this file:

Data Structures
struct	pipeline
struct	pipeline_walk_context
struct	pipeline_data
struct	pipeline_task
	Task type registered by pipelines. More...
struct	create_pipeline_params
	For storing IPC payload data. More...

Macros
#define	PPL_STATUS_PATH_STOP 1
#define	PPL_STATUS_PATH_TERMINATE 2
#define	PPL_STATUS_SCHEDULED 2
#define	PPL_CONN_DIR_COMP_TO_BUFFER 0
#define	PPL_CONN_DIR_BUFFER_TO_COMP 1
#define	PPL_DIR_DOWNSTREAM 0
#define	PPL_DIR_UPSTREAM 1
#define	pipeline_task_get(t)

Functions
struct pipeline *	pipeline_new (struct k_heap heap, uint32_t pipeline_id, uint32_t priority, uint32_t comp_id, struct create_pipeline_params pparams)
	Creates a new pipeline.
int	pipeline_free (struct pipeline *p)
	Free's a pipeline.
int	pipeline_connect (struct comp_dev comp, struct comp_buffer buffer, int dir)
	Connect components in a pipeline.
void	pipeline_disconnect (struct comp_dev comp, struct comp_buffer buffer, int dir)
	Creates a new pipeline.
int	pipeline_complete (struct pipeline p, struct comp_dev source, struct comp_dev *sink)
	Completes a pipeline.
void	pipeline_posn_init (struct sof *sof)
	Initializes pipeline position structure.
int	pipeline_reset (struct pipeline p, struct comp_dev host_cd)
	Resets the pipeline and free runtime resources.
int	pipeline_for_each_comp (struct comp_dev current, struct pipeline_walk_context ctx, int dir)
	Walks the pipeline graph for each component.
struct comp_dev *	pipeline_get_dai_comp (uint32_t pipeline_id, int dir)
	Walks pipeline graph to find dai component.
static uint32_t	pipeline_id (struct pipeline *p)
	Retrieves pipeline id from pipeline.
int	pipeline_params (struct pipeline p, struct comp_dev cd, struct sof_ipc_pcm_params *params)
	Creates a new pipeline.
int	pipeline_prepare (struct pipeline p, struct comp_dev cd)
	Prepares pipeline for processing.
int	pipeline_trigger (struct pipeline p, struct comp_dev host, int cmd)
	Trigger pipeline - IPC context.
int	pipeline_trigger_run (struct pipeline p, struct comp_dev host, int cmd)
	Trigger pipeline - either IPC or pipeline task context.
int	pipeline_copy (struct pipeline *p)
	Copy data along a pipeline.
void	pipeline_get_timestamp (struct pipeline p, struct comp_dev host_dev, struct sof_ipc_stream_posn *posn)
	Get time pipeline timestamps from host to dai.
static bool	pipeline_is_same_sched_comp (struct pipeline current, struct pipeline previous)
	Checks if two pipelines have the same scheduling component.
static bool	pipeline_is_timer_driven (struct pipeline *p)
	Is pipeline is scheduled with timer.
static bool	pipeline_is_this_cpu (struct pipeline *p)
	Is pipeline is scheduled on this core.
int	pipeline_comp_ll_task_init (struct pipeline *p)
	Init an LL task for a pipeline.
void	pipeline_comp_ll_task_free (struct pipeline *p)
	Free the LL tasks owned by a pipeline.
int	pipeline_comp_dp_task_init (struct comp_dev *comp)
	Init a DP task for a component.
void	pipeline_schedule_copy (struct pipeline *p, uint64_t start)
	Schedule a pipeline copy to run after a delay.
void	pipeline_comp_trigger_sched_comp (struct pipeline p, struct comp_dev comp, struct pipeline_walk_context *ctx)
	Trigger pipeline's scheduling component.
void	pipeline_schedule_triggered (struct pipeline_walk_context *ctx, int cmd)
	Schedule all triggered pipelines.
void	pipeline_schedule_config (struct pipeline *p, uint32_t sched_id, uint32_t core, uint32_t period, uint32_t period_mips, uint32_t frames_per_sched, uint32_t time_domain)
	Configure pipeline scheduling.
int	pipeline_xrun_recover (struct pipeline *p)
	Recover the pipeline from a XRUN condition.
int	pipeline_xrun_handle_trigger (struct pipeline *p, int cmd)
	Perform xrun recovery.
void	pipeline_xrun (struct pipeline p, struct comp_dev dev, int32_t bytes)
	notify host that we have XRUN.
int	pipeline_xrun_set_limit (struct pipeline *p, uint32_t xrun_limit_usecs)
	Set tolerance for pipeline xrun handling.
void	pipeline_comp_copy_error_notify (const struct comp_dev *component, int error_code)
	Sends an ipc notification that an error occurred in the module's processing function.

Macro Definition Documentation

◆ pipeline_task_get

#define pipeline_task_get ( t )

Value:

container_of(t, struct pipeline_task, task)

container_of

#define container_of(ptr, type, member)

Definition common.h:119

pipeline_task

Task type registered by pipelines.

Definition pipeline.h:136

task

Task used by schedulers.

Definition task.h:56

◆ PPL_CONN_DIR_BUFFER_TO_COMP

#define PPL_CONN_DIR_BUFFER_TO_COMP 1

◆ PPL_CONN_DIR_COMP_TO_BUFFER

#define PPL_CONN_DIR_COMP_TO_BUFFER 0

◆ PPL_DIR_DOWNSTREAM

#define PPL_DIR_DOWNSTREAM 0

◆ PPL_DIR_UPSTREAM

#define PPL_DIR_UPSTREAM 1

◆ PPL_STATUS_PATH_STOP

#define PPL_STATUS_PATH_STOP 1

◆ PPL_STATUS_PATH_TERMINATE

#define PPL_STATUS_PATH_TERMINATE 2

◆ PPL_STATUS_SCHEDULED

#define PPL_STATUS_SCHEDULED 2

Function Documentation

◆ pipeline_comp_copy_error_notify()

void pipeline_comp_copy_error_notify	(	const struct comp_dev *	component,
		int	error_code )

Sends an ipc notification that an error occurred in the module's processing function.

Parameters

[in]	component	The component in which the error occurred.
[in]	error_code	Error code.

◆ pipeline_comp_dp_task_init()

int pipeline_comp_dp_task_init ( struct comp_dev * comp )

Init a DP task for a component.

Parameters

[in] comp a component the task is created for

Returns: 0 on success.

◆ pipeline_comp_ll_task_free()

void pipeline_comp_ll_task_free ( struct pipeline * p )

Free the LL tasks owned by a pipeline.

Parameters

[in] p pipeline.

◆ pipeline_comp_ll_task_init()

int pipeline_comp_ll_task_init ( struct pipeline * p )

Init an LL task for a pipeline.

Parameters

[in] p pipeline.

Returns: 0 on success.

◆ pipeline_comp_trigger_sched_comp()

void pipeline_comp_trigger_sched_comp	(	struct pipeline *	p,
		struct comp_dev *	comp,
		struct pipeline_walk_context *	ctx )

Trigger pipeline's scheduling component.

Parameters

[in]	p	pipeline.
[in,out]	comp	Pipeline component device.
[in]	ctx	Pipeline graph walk context.

◆ pipeline_complete()

int pipeline_complete	(	struct pipeline *	p,
		struct comp_dev *	source,
		struct comp_dev *	sink )

Completes a pipeline.

Parameters

[in]	p	pipeline.
[in]	source	Pipeline component device.
[in]	sink	Pipeline component device.

Returns: 0 on success.

◆ pipeline_connect()

int pipeline_connect	(	struct comp_dev *	comp,
		struct comp_buffer *	buffer,
		int	dir )

Connect components in a pipeline.

Parameters

[in]	comp	connecting component.
[in]	buffer	connecting buffer.
[in]	dir	Connection direction.

Returns: 0 on success.

◆ pipeline_copy()

int pipeline_copy ( struct pipeline * p )

Copy data along a pipeline.

Parameters

[in] p pipeline.

Returns: 0 on success.

◆ pipeline_disconnect()

void pipeline_disconnect	(	struct comp_dev *	comp,
		struct comp_buffer *	buffer,
		int	dir )

Creates a new pipeline.

Parameters

[in]	comp	connecting component.
[in]	buffer	connecting buffer.
[in]	dir	Connection direction.

◆ pipeline_for_each_comp()

int pipeline_for_each_comp	(	struct comp_dev *	current,
		struct pipeline_walk_context *	ctx,
		int	dir )

Walks the pipeline graph for each component.

Parameters

[in]	current	Current pipeline component.
[in]	ctx	Pipeline graph walk context.
[in]	dir	Walk direction.

Returns: 0 on success.

◆ pipeline_free()

int pipeline_free ( struct pipeline * p )

Free's a pipeline.

Parameters

[in] p pipeline.

Returns: 0 on success.

◆ pipeline_get_dai_comp()

struct comp_dev * pipeline_get_dai_comp	(	uint32_t	pipeline_id,
		int	dir )

Walks pipeline graph to find dai component.

Parameters

[in]	pipeline_id	is the start pipeline id.
[in]	dir	is the direction of the traversal.

Returns: dai component.

◆ pipeline_get_timestamp()

void pipeline_get_timestamp	(	struct pipeline *	p,
		struct comp_dev *	host_dev,
		struct sof_ipc_stream_posn *	posn )

Get time pipeline timestamps from host to dai.

Parameters

[in]	p	pipeline.
[in]	host_dev	Host DMA component.
[in,out]	posn	Pipeline stream position.

◆ pipeline_id()

uint32_t pipeline_id ( struct pipeline * p )

inlinestatic

Retrieves pipeline id from pipeline.

Parameters

p pipeline.

Returns: pipeline id.

◆ pipeline_is_same_sched_comp()

bool pipeline_is_same_sched_comp	(	struct pipeline *	current,
		struct pipeline *	previous )

inlinestatic

Checks if two pipelines have the same scheduling component.

Parameters

[in]	current	This pipeline.
[in]	previous	Other pipeline.

Returns: true if both pipelines are scheduled together.

◆ pipeline_is_this_cpu()

bool pipeline_is_this_cpu ( struct pipeline * p )

inlinestatic

Is pipeline is scheduled on this core.

Parameters

[in] p pipeline.

Returns: true if pipeline core ID == current core ID.

◆ pipeline_is_timer_driven()

bool pipeline_is_timer_driven ( struct pipeline * p )

inlinestatic

Is pipeline is scheduled with timer.

Parameters

[in] p pipeline.

Returns: true if pipeline uses timer based scheduling.

◆ pipeline_new()

struct pipeline * pipeline_new	(	struct k_heap *	heap,
		uint32_t	pipeline_id,
		uint32_t	priority,
		uint32_t	comp_id,
		struct create_pipeline_params *	pparams )

Creates a new pipeline.

Parameters

[in]	heap	Heap to allocate the pipeline on, or NULL for default.
[in]	pipeline_id	Pipeline ID number.
[in]	priority	Pipeline scheduling priority.
[in]	comp_id	Pipeline component ID number.
[in]	pparams	Pipeline parameters from IPC payload, maybe NULL.

Returns: New pipeline pointer or NULL.

◆ pipeline_params()

int pipeline_params	(	struct pipeline *	p,
		struct comp_dev *	cd,
		struct sof_ipc_pcm_params *	params )

Creates a new pipeline.

Parameters

[in]	p	pipeline.
[in]	cd	Pipeline component device.
[in]	params	Pipeline parameters.

Returns: 0 on success.

◆ pipeline_posn_init()

void pipeline_posn_init ( struct sof * sof )

Initializes pipeline position structure.

Parameters

[in,out] sof Pointer to sof structure.

◆ pipeline_prepare()

int pipeline_prepare	(	struct pipeline *	p,
		struct comp_dev *	cd )

Prepares pipeline for processing.

Parameters

[in]	p	pipeline.
[in,out]	cd	Pipeline component device.

Returns: 0 on success.

◆ pipeline_reset()

int pipeline_reset	(	struct pipeline *	p,
		struct comp_dev *	host_cd )

Resets the pipeline and free runtime resources.

Parameters

[in]	p	pipeline.
[in]	host_cd	Host DMA component device.

Returns: 0 on success.

◆ pipeline_schedule_config()

void pipeline_schedule_config	(	struct pipeline *	p,
		uint32_t	sched_id,
		uint32_t	core,
		uint32_t	period,
		uint32_t	period_mips,
		uint32_t	frames_per_sched,
		uint32_t	time_domain )

Configure pipeline scheduling.

Parameters

[in]	p	pipeline.
[in]	sched_id	Scheduling component ID.
[in]	core	DSP core pipeline runs on.
[in]	period	Pipeline scheduling period in us.
[in]	period_mips	Pipeline worst case MCPS per period.
[in]	frames_per_sched	Pipeline frames processed per schedule.
[in]	time_domain	Pipeline scheduling time domain.

◆ pipeline_schedule_copy()

void pipeline_schedule_copy	(	struct pipeline *	p,
		uint64_t	start )

Schedule a pipeline copy to run after a delay.

Parameters

[in]	p	pipeline.
[in]	start	Pipeline start time in microseconds.

◆ pipeline_schedule_triggered()

void pipeline_schedule_triggered	(	struct pipeline_walk_context *	ctx,
		int	cmd )

Schedule all triggered pipelines.

Parameters

[in]	ctx	Pipeline graph walk context.
[in]	cmd	Trigger command.

◆ pipeline_trigger()

int pipeline_trigger	(	struct pipeline *	p,
		struct comp_dev *	host,
		int	cmd )

Trigger pipeline - IPC context.

Parameters

[in]	p	pipeline.
[in]	host	Host DMA component.
[in]	cmd	Pipeline trigger command.

Returns: 0 on success.

◆ pipeline_trigger_run()

int pipeline_trigger_run	(	struct pipeline *	p,
		struct comp_dev *	host,
		int	cmd )

Trigger pipeline - either IPC or pipeline task context.

Parameters

[in]	p	pipeline.
[in]	host	Host DMA component.
[in]	cmd	Pipeline trigger command.

Returns: 0 on success.

◆ pipeline_xrun()

void pipeline_xrun	(	struct pipeline *	p,
		struct comp_dev *	dev,
		int32_t	bytes )

notify host that we have XRUN.

Parameters

[in]	p	pipeline.
[in]	dev	Pipeline component device.
[in]	bytes	Number of bytes we have over or under run.

◆ pipeline_xrun_handle_trigger()

int pipeline_xrun_handle_trigger	(	struct pipeline *	p,
		int	cmd )

Perform xrun recovery.

Parameters

[in]	p	pipeline.
[in]	cmd	Trigger command.

Returns: 0 on success.

◆ pipeline_xrun_recover()

int pipeline_xrun_recover ( struct pipeline * p )

Recover the pipeline from a XRUN condition.

Parameters

[in] p pipeline.

Returns: 0 on success.

◆ pipeline_xrun_set_limit()

int pipeline_xrun_set_limit	(	struct pipeline *	p,
		uint32_t	xrun_limit_usecs )

Set tolerance for pipeline xrun handling.

Parameters

[in]	p	pipeline.
[in]	xrun_limit_usecs	Limit in micro secs that pipeline will tolerate.

Data Structures

Macros

Functions

Macro Definition Documentation

◆ pipeline_task_get

◆ PPL_CONN_DIR_BUFFER_TO_COMP

◆ PPL_CONN_DIR_COMP_TO_BUFFER

◆ PPL_DIR_DOWNSTREAM

◆ PPL_DIR_UPSTREAM

◆ PPL_STATUS_PATH_STOP

◆ PPL_STATUS_PATH_TERMINATE

◆ PPL_STATUS_SCHEDULED

Function Documentation

◆ pipeline_comp_copy_error_notify()

◆ pipeline_comp_dp_task_init()

◆ pipeline_comp_ll_task_free()

◆ pipeline_comp_ll_task_init()

◆ pipeline_comp_trigger_sched_comp()

◆ pipeline_complete()

◆ pipeline_connect()

◆ pipeline_copy()

◆ pipeline_disconnect()

◆ pipeline_for_each_comp()

◆ pipeline_free()

◆ pipeline_get_dai_comp()

◆ pipeline_get_timestamp()

◆ pipeline_id()

◆ pipeline_is_same_sched_comp()

◆ pipeline_is_this_cpu()

◆ pipeline_is_timer_driven()

◆ pipeline_new()

◆ pipeline_params()

◆ pipeline_posn_init()

◆ pipeline_prepare()

◆ pipeline_reset()

◆ pipeline_schedule_config()

◆ pipeline_schedule_copy()

◆ pipeline_schedule_triggered()

◆ pipeline_trigger()

◆ pipeline_trigger_run()

◆ pipeline_xrun()

◆ pipeline_xrun_handle_trigger()

◆ pipeline_xrun_recover()

◆ pipeline_xrun_set_limit()
