regions_mm.h File Reference

Virtual Memory Heap (VMH) and multi-block region allocator API. More...

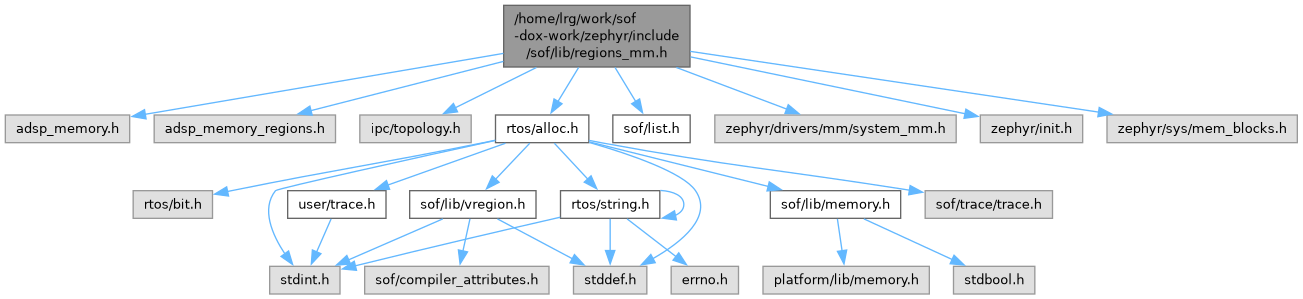

Include dependency graph for regions_mm.h:

Go to the source code of this file.

Data Structures
struct	vmh_block_bundle_descriptor
	Descriptor for a power-of-2 block size bundle in a virtual memory heap. More...
struct	vmh_heap_config
	This is a struct that aggregates vmh_block_bundle_descriptor to create one cfg that can be passed to heap initiation. More...

Macros
#define	VIRTUAL_REGION_SHARED_HEAP_ATTR   1U
	Region attribute for shared virtual memory heap.
#define	VIRTUAL_REGION_LLEXT_LIBRARIES_ATTR   2U
	Region attribute for loadable LLEXT libraries.
#define	VIRTUAL_REGION_VPAGES_ATTR   3U
	Region attribute for virtual page allocator.
#define	MAX_MEMORY_ALLOCATORS_COUNT   10
	Maximum amount of memory block allocators in one heap.
#define	DEFAULT_CONFIG_ALOCATORS_COUNT   5
	Default number of power-of-2 block allocators partitioned across a region.

Functions
struct vmh_heap *	vmh_init_heap (const struct vmh_heap_config *cfg, bool allocating_continuously)
	Initialize a virtual memory heap with the given bundle configuration.
void *	vmh_alloc (struct vmh_heap *heap, uint32_t alloc_size)
	Allocate a memory block from the virtual memory heap.
int	vmh_free_heap (struct vmh_heap *heap)
	Destroy a virtual memory heap and unmap all backing pages.
int	vmh_free (struct vmh_heap *heap, void *ptr)
	Free a memory block previously allocated from a virtual memory heap.
void	vmh_get_default_heap_config (const struct sys_mm_drv_region *region, struct vmh_heap_config *cfg)
	Generate a default heap partition configuration for a memory driver region.
static bool	vmh_is_ptr_in_memory_range (uintptr_t ptr, uintptr_t range_start, size_t range_size)
	Checks if ptr is in range of given memory range.

Detailed Description

Virtual Memory Heap (VMH) and multi-block region allocator API.
