smart_amp.h File Reference

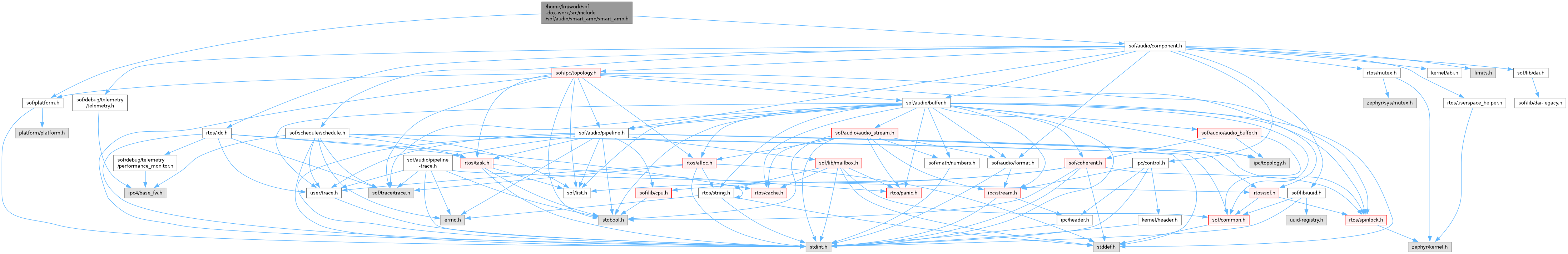

Include dependency graph for smart_amp.h:

Go to the source code of this file.

Data Structures
struct	smart_amp_mod_data_base
struct	smart_amp_buf
struct	smart_amp_mod_stream
struct	smart_amp_func_map
struct	inner_model_ops

Macros
#define	SMART_AMP_FF_MAX_CH_NUM   2
#define	SMART_AMP_FF_OUT_MAX_CH_NUM   4
#define	SMART_AMP_FB_MAX_CH_NUM   4
#define	SMART_AMP_FRM_SZ   48 /* frames per 1ms */
#define	SMART_AMP_FF_BUF_SZ   (SMART_AMP_FRM_SZ * SMART_AMP_FF_MAX_CH_NUM)
#define	SMART_AMP_FB_BUF_SZ   (SMART_AMP_FRM_SZ * SMART_AMP_FB_MAX_CH_NUM)
#define	SMART_AMP_FF_BUF_DB_SZ    (SMART_AMP_FF_BUF_SZ * SMART_AMP_FF_MAX_CH_NUM)
#define	SMART_AMP_FB_BUF_DB_SZ    (SMART_AMP_FB_BUF_SZ * SMART_AMP_FB_MAX_CH_NUM)

Typedefs
typedef void(*	smart_amp_src_func) (struct smart_amp_mod_stream *src_mod, uint32_t frames, const struct audio_stream *src, const int8_t *chan_map)
typedef void(*	smart_amp_sink_func) (const struct smart_amp_mod_stream *sink_mod, uint32_t frames, const struct audio_stream *sink)

Enumerations
enum	smart_amp_mod_memblk { MOD_MEMBLK_PRIVATE = 0 , MOD_MEMBLK_FRAME , MOD_MEMBLK_PARAM , MOD_MEMBLK_MAX }

Functions
smart_amp_src_func	smart_amp_get_src_func (uint16_t comp_fmt, uint16_t mod_fmt)
	Retrieve source processing callback matching component and module PCM formats.
smart_amp_sink_func	smart_amp_get_sink_func (uint16_t comp_fmt, uint16_t mod_fmt)
	Retrieve sink processing callback matching component and module PCM formats.
struct smart_amp_mod_data_base *	mod_data_create (const struct comp_dev *dev)
	Creates the self-declared model data struct.

Variables
const struct smart_amp_func_map	src_sink_func_map []

Macro Definition Documentation

SMART_AMP_FB_BUF_DB_SZ

#define SMART_AMP_FB_BUF_DB_SZ    (SMART_AMP_FB_BUF_SZ * SMART_AMP_FB_MAX_CH_NUM)

SMART_AMP_FB_BUF_SZ

#define SMART_AMP_FB_BUF_SZ   (SMART_AMP_FRM_SZ * SMART_AMP_FB_MAX_CH_NUM)

SMART_AMP_FB_MAX_CH_NUM

#define SMART_AMP_FB_MAX_CH_NUM   4

SMART_AMP_FF_BUF_DB_SZ

#define SMART_AMP_FF_BUF_DB_SZ    (SMART_AMP_FF_BUF_SZ * SMART_AMP_FF_MAX_CH_NUM)

SMART_AMP_FF_BUF_SZ

#define SMART_AMP_FF_BUF_SZ   (SMART_AMP_FRM_SZ * SMART_AMP_FF_MAX_CH_NUM)

SMART_AMP_FF_MAX_CH_NUM

#define SMART_AMP_FF_MAX_CH_NUM   2

SMART_AMP_FF_OUT_MAX_CH_NUM

#define SMART_AMP_FF_OUT_MAX_CH_NUM   4

SMART_AMP_FRM_SZ

#define SMART_AMP_FRM_SZ   48 /* frames per 1ms */

Typedef Documentation

smart_amp_sink_func

typedef void(* smart_amp_sink_func) (const struct smart_amp_mod_stream *sink_mod, uint32_t frames, const struct audio_stream *sink)

smart_amp_src_func

typedef void(* smart_amp_src_func) (struct smart_amp_mod_stream *src_mod, uint32_t frames, const struct audio_stream *src, const int8_t *chan_map)

Enumeration Type Documentation

smart_amp_mod_memblk

enum smart_amp_mod_memblk

Enumerator
MOD_MEMBLK_PRIVATE
MOD_MEMBLK_FRAME
MOD_MEMBLK_PARAM
MOD_MEMBLK_MAX

Function Documentation

mod_data_create()

struct smart_amp_mod_data_base * mod_data_create

(

const struct comp_dev *

dev

)

Creates the self-declared model data struct.

Refer to "struct smart_amp_mod_data_base" for details of declaration. Args: dev - the comp_dev object for logger tracing use only. Returns: The pointer of "smart_amp_mod_data_base" which is the leading member in the created model data struct.

smart_amp_get_sink_func()

smart_amp_sink_func smart_amp_get_sink_func	(	uint16_t	comp_fmt,
		uint16_t	mod_fmt
	)

Retrieve sink processing callback matching component and module PCM formats.

Parameters

comp_fmt	Component stream frame format.
mod_fmt	Processing module internal frame format.

Returns

Sink processing function pointer, or NULL if no match found.

smart_amp_get_src_func()

smart_amp_src_func smart_amp_get_src_func	(	uint16_t	comp_fmt,
		uint16_t	mod_fmt
	)

Retrieve source processing callback matching component and module PCM formats.

Parameters

comp_fmt	Component stream frame format.
mod_fmt	Processing module internal frame format.

Returns

Source processing function pointer, or NULL if no match found.

Variable Documentation

src_sink_func_map

const struct smart_amp_func_map src_sink_func_map[]

extern
