Host-DSP IPC trace DMA configuration, filtering, and panic descriptors. More...

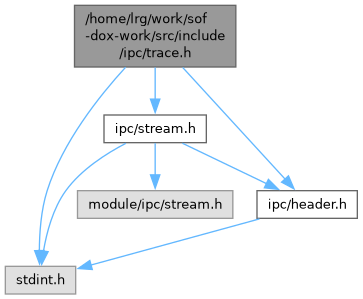

Include dependency graph for trace.h:

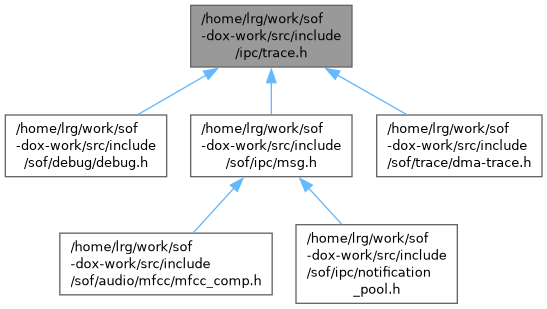

This graph shows which files directly or indirectly include this file:

Data Structures
struct	sof_ipc_dma_trace_params
	Legacy host DMA trace parameters payload (SOF_IPC_TRACE_DMA_PARAMS). More...

struct	sof_ipc_dma_trace_params_ext
	Extended host DMA trace parameters payload (SOF_IPC_TRACE_DMA_PARAMS_EXT). More...

struct	sof_ipc_dma_trace_posn
	DMA trace circular buffer position report sent to host (SOF_IPC_TRACE_DMA_POSITION). More...

struct	sof_ipc_trace_filter_elem
	part of sof_ipc_trace_filter, ABI3.17 More...

struct	sof_ipc_trace_filter
	Runtime tracing filtration data - SOF_IPC_TRACE_FILTER_UPDATE, ABI3.17. More...

struct	sof_ipc_panic_info
	DSP panic crash dump descriptor reported to host. More...

Macros
#define	SOF_TRACE_FILENAME_SIZE 32
	Maximum filename string length embedded in panic reports.

#define	SOF_IPC_TRACE_FILTER_ELEM_SET_LEVEL 0x01
	trace level for selected components

#define	SOF_IPC_TRACE_FILTER_ELEM_BY_UUID 0x02
	filter by uuid key

#define	SOF_IPC_TRACE_FILTER_ELEM_BY_COMP 0x03
	filter by component id

#define	SOF_IPC_TRACE_FILTER_ELEM_BY_PIPE 0x04
	filter by pipeline

#define	SOF_IPC_TRACE_FILTER_ELEM_TYPE_MASK 0x7F
	filter element type mask

#define	SOF_IPC_TRACE_FILTER_ELEM_FIN 0x80
	mark last filter in set

SOF Panic Codes
Firmware panic identifiers written to mailboxes or reported upon crash.
#define	SOF_IPC_PANIC_MAGIC 0x0dead000
	Magic pattern identifying valid panic packet.

#define	SOF_IPC_PANIC_MAGIC_MASK 0x0ffff000
	Mask isolating panic magic pattern.

#define	SOF_IPC_PANIC_CODE_MASK 0x00000fff
	Mask isolating specific panic category.

#define	SOF_IPC_PANIC_MEM (SOF_IPC_PANIC_MAGIC \| 0x0)
	Memory allocation exhaustion panic.

#define	SOF_IPC_PANIC_WORK (SOF_IPC_PANIC_MAGIC \| 0x1)
	Scheduling task failure panic.

#define	SOF_IPC_PANIC_IPC (SOF_IPC_PANIC_MAGIC \| 0x2)
	Host IPC transport failure panic.

#define	SOF_IPC_PANIC_ARCH (SOF_IPC_PANIC_MAGIC \| 0x3)
	Architecture exception panic.

#define	SOF_IPC_PANIC_PLATFORM (SOF_IPC_PANIC_MAGIC \| 0x4)
	Platform device driver panic.

#define	SOF_IPC_PANIC_TASK (SOF_IPC_PANIC_MAGIC \| 0x5)
	Real-time task deadline panic.

#define	SOF_IPC_PANIC_EXCEPTION (SOF_IPC_PANIC_MAGIC \| 0x6)
	Unhandled CPU exception panic.

#define	SOF_IPC_PANIC_DEADLOCK (SOF_IPC_PANIC_MAGIC \| 0x7)
	Multicore spinlock deadlock panic.

#define	SOF_IPC_PANIC_STACK (SOF_IPC_PANIC_MAGIC \| 0x8)
	Stack guard overflow panic.

#define	SOF_IPC_PANIC_IDLE (SOF_IPC_PANIC_MAGIC \| 0x9)
	Idle power state transition panic.

#define	SOF_IPC_PANIC_WFI (SOF_IPC_PANIC_MAGIC \| 0xa)
	Wait-For-Interrupt lockup panic.

#define	SOF_IPC_PANIC_ASSERT (SOF_IPC_PANIC_MAGIC \| 0xb)
	Assertion failure panic.

Detailed Description

Host-DSP IPC trace DMA configuration, filtering, and panic descriptors.

Macro Definition Documentation

◆ SOF_IPC_PANIC_ARCH

#define SOF_IPC_PANIC_ARCH (SOF_IPC_PANIC_MAGIC | 0x3)

Architecture exception panic.

◆ SOF_IPC_PANIC_ASSERT

#define SOF_IPC_PANIC_ASSERT (SOF_IPC_PANIC_MAGIC | 0xb)

Assertion failure panic.

◆ SOF_IPC_PANIC_CODE_MASK

#define SOF_IPC_PANIC_CODE_MASK 0x00000fff

Mask isolating specific panic category.

◆ SOF_IPC_PANIC_DEADLOCK

#define SOF_IPC_PANIC_DEADLOCK (SOF_IPC_PANIC_MAGIC | 0x7)

Multicore spinlock deadlock panic.

◆ SOF_IPC_PANIC_EXCEPTION

#define SOF_IPC_PANIC_EXCEPTION (SOF_IPC_PANIC_MAGIC | 0x6)

Unhandled CPU exception panic.

◆ SOF_IPC_PANIC_IDLE

#define SOF_IPC_PANIC_IDLE (SOF_IPC_PANIC_MAGIC | 0x9)

Idle power state transition panic.

◆ SOF_IPC_PANIC_IPC

#define SOF_IPC_PANIC_IPC (SOF_IPC_PANIC_MAGIC | 0x2)

Host IPC transport failure panic.

◆ SOF_IPC_PANIC_MAGIC

#define SOF_IPC_PANIC_MAGIC 0x0dead000

Magic pattern identifying valid panic packet.

◆ SOF_IPC_PANIC_MAGIC_MASK

#define SOF_IPC_PANIC_MAGIC_MASK 0x0ffff000

Mask isolating panic magic pattern.

◆ SOF_IPC_PANIC_MEM

#define SOF_IPC_PANIC_MEM (SOF_IPC_PANIC_MAGIC | 0x0)

Memory allocation exhaustion panic.

◆ SOF_IPC_PANIC_PLATFORM

#define SOF_IPC_PANIC_PLATFORM (SOF_IPC_PANIC_MAGIC | 0x4)

Platform device driver panic.

◆ SOF_IPC_PANIC_STACK

#define SOF_IPC_PANIC_STACK (SOF_IPC_PANIC_MAGIC | 0x8)

Stack guard overflow panic.

◆ SOF_IPC_PANIC_TASK

#define SOF_IPC_PANIC_TASK (SOF_IPC_PANIC_MAGIC | 0x5)

Real-time task deadline panic.

◆ SOF_IPC_PANIC_WFI

#define SOF_IPC_PANIC_WFI (SOF_IPC_PANIC_MAGIC | 0xa)

Wait-For-Interrupt lockup panic.

◆ SOF_IPC_PANIC_WORK

#define SOF_IPC_PANIC_WORK (SOF_IPC_PANIC_MAGIC | 0x1)

Scheduling task failure panic.

◆ SOF_IPC_TRACE_FILTER_ELEM_BY_COMP

#define SOF_IPC_TRACE_FILTER_ELEM_BY_COMP 0x03

filter by component id

◆ SOF_IPC_TRACE_FILTER_ELEM_BY_PIPE

#define SOF_IPC_TRACE_FILTER_ELEM_BY_PIPE 0x04

filter by pipeline

◆ SOF_IPC_TRACE_FILTER_ELEM_BY_UUID

#define SOF_IPC_TRACE_FILTER_ELEM_BY_UUID 0x02

filter by uuid key

◆ SOF_IPC_TRACE_FILTER_ELEM_FIN

#define SOF_IPC_TRACE_FILTER_ELEM_FIN 0x80

mark last filter in set

◆ SOF_IPC_TRACE_FILTER_ELEM_SET_LEVEL

#define SOF_IPC_TRACE_FILTER_ELEM_SET_LEVEL 0x01

trace level for selected components

◆ SOF_IPC_TRACE_FILTER_ELEM_TYPE_MASK

#define SOF_IPC_TRACE_FILTER_ELEM_TYPE_MASK 0x7F

filter element type mask

◆ SOF_TRACE_FILENAME_SIZE

#define SOF_TRACE_FILENAME_SIZE 32

Maximum filename string length embedded in panic reports.
