Selector component private data. More...

#include <src/include/sof/audio/igo_nr/igo_nr_comp.h>

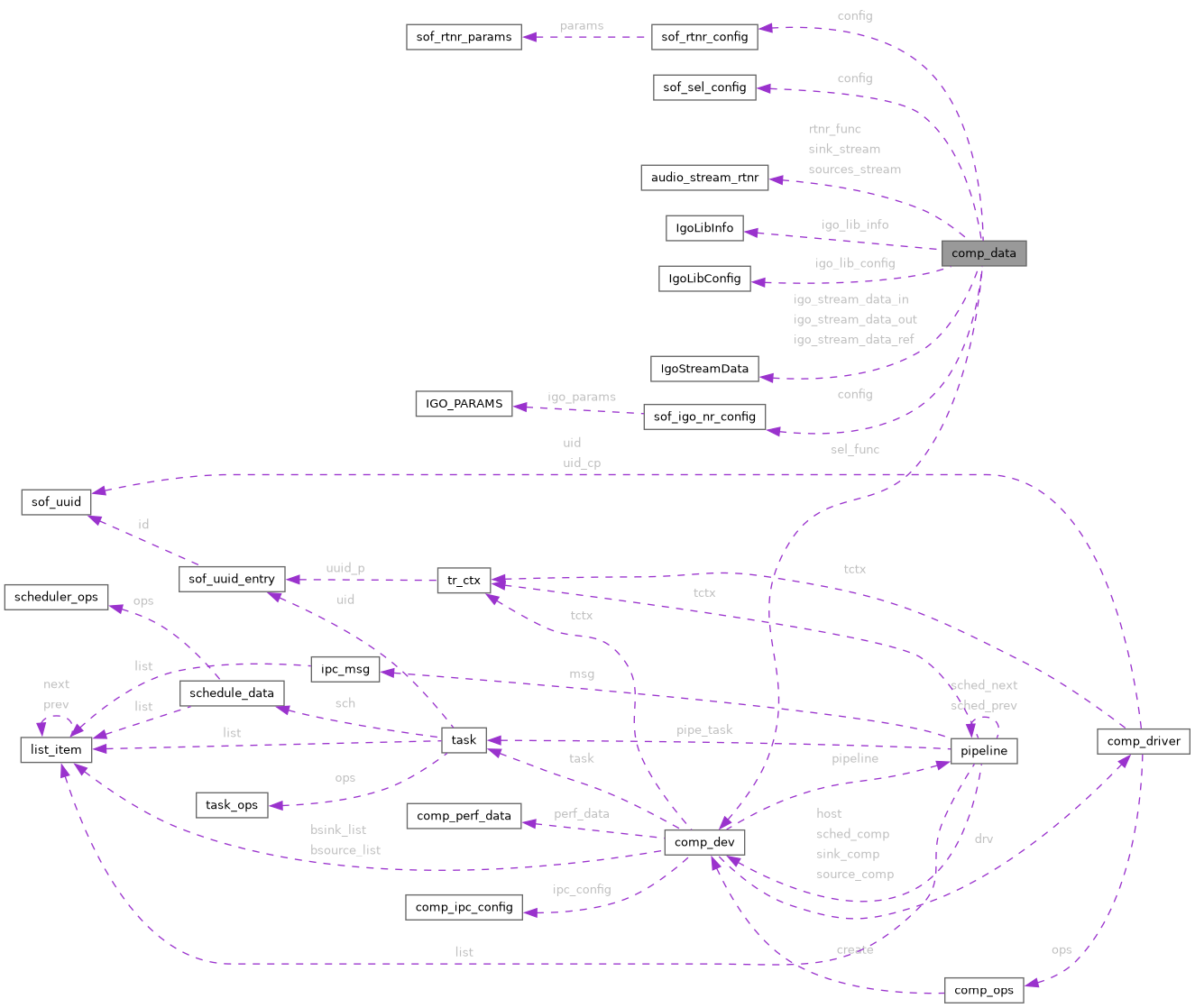

Collaboration diagram for comp_data:

[legend]

Data Fields
void *	p_handle

struct IgoLibInfo	igo_lib_info

struct IgoLibConfig	igo_lib_config

struct IgoStreamData	igo_stream_data_in

struct IgoStreamData	igo_stream_data_ref

struct IgoStreamData	igo_stream_data_out

struct comp_data_blob_handler *	model_handler

int16_t	in [IGO_NR_IN_BUF_LENGTH]
	input samples buffer

int16_t	out [IGO_NR_IN_BUF_LENGTH]
	output samples mix buffer

bool	process_enable [SOF_IPC_MAX_CHANNELS]
	set if channel process is enabled

bool	invalid_param
	sample rate != 16000

uint32_t	sink_rate

uint32_t	source_rate

uint32_t	sink_format
	sink frame format

uint32_t	source_format
	source frame format

int(*	igo_nr_func )(struct comp_data cd, struct sof_source source, struct sof_sink *sink, int32_t frames)

struct sof_igo_nr_config	config
	blob data buffer

struct sof_rtnr_config	config
	config

enum sof_ipc_frame	source_format
	source frame format

enum sof_ipc_frame	sink_format
	sink frame format

enum sof_ipc_frame	ref_format

int	source_channel

int	reference_channel

uint32_t	process_sample_rate

int	ref_shift

bool	ref_32bits

bool	ref_active

rtnr_func	rtnr_func

void *	rtk_agl
	Processing function.

struct audio_stream_rtnr	sources_stream [RTNR_MAX_SOURCES]

struct audio_stream_rtnr	sink_stream

bool	reconfigure

struct sof_selector_ipc4_config	sel_ipc4_cfg

struct ipc4_selector_coeffs_config	coeffs_config

struct ipc4_selector_coeffs_config *	multi_coeffs_config

size_t	multi_coeffs_config_size

uint32_t	source_period_bytes
	source number of period bytes

uint32_t	sink_period_bytes
	sink number of period bytes

struct sof_sel_config	config
	component configuration data

sel_func	sel_func
	channel selector processing function

int	num_configs
	Number of coefficients sets in configuration blob.

bool	passthrough
	Use a passthrough copy function when no up/down mix.

bool	new_config
	True if new configuration has been received.

Detailed Description

Selector component private data.

Field Documentation

◆ coeffs_config

struct ipc4_selector_coeffs_config comp_data::coeffs_config

◆ config [1/3]

struct sof_igo_nr_config comp_data::config

blob data buffer

◆ config [2/3]

struct sof_rtnr_config comp_data::config

config

◆ config [3/3]

struct sof_sel_config comp_data::config

component configuration data

◆ igo_lib_config

struct IgoLibConfig comp_data::igo_lib_config

◆ igo_lib_info

struct IgoLibInfo comp_data::igo_lib_info

◆ igo_nr_func

int(* comp_data::igo_nr_func) (struct comp_data *cd, struct sof_source *source, struct sof_sink *sink, int32_t frames)

◆ igo_stream_data_in

struct IgoStreamData comp_data::igo_stream_data_in

◆ igo_stream_data_out

struct IgoStreamData comp_data::igo_stream_data_out

◆ igo_stream_data_ref

struct IgoStreamData comp_data::igo_stream_data_ref

◆ in

int16_t comp_data::in[IGO_NR_IN_BUF_LENGTH]

input samples buffer

◆ invalid_param

bool comp_data::invalid_param

sample rate != 16000

◆ model_handler

struct comp_data_blob_handler * comp_data::model_handler

◆ multi_coeffs_config

struct ipc4_selector_coeffs_config* comp_data::multi_coeffs_config

◆ multi_coeffs_config_size

size_t comp_data::multi_coeffs_config_size

◆ new_config

bool comp_data::new_config

True if new configuration has been received.

◆ num_configs

int comp_data::num_configs

Number of coefficients sets in configuration blob.

◆ out

int16_t comp_data::out[IGO_NR_IN_BUF_LENGTH]

output samples mix buffer

◆ p_handle

void* comp_data::p_handle

◆ passthrough

bool comp_data::passthrough

Use a passthrough copy function when no up/down mix.

◆ process_enable

bool comp_data::process_enable

set if channel process is enabled

◆ process_sample_rate

uint32_t comp_data::process_sample_rate

◆ reconfigure

bool comp_data::reconfigure

◆ ref_32bits

bool comp_data::ref_32bits

◆ ref_active

bool comp_data::ref_active

◆ ref_format

enum sof_ipc_frame comp_data::ref_format

◆ ref_shift

int comp_data::ref_shift

◆ reference_channel

int comp_data::reference_channel

◆ rtk_agl

void* comp_data::rtk_agl

Processing function.

◆ rtnr_func

rtnr_func comp_data::rtnr_func

◆ sel_func

sel_func comp_data::sel_func

channel selector processing function

◆ sel_ipc4_cfg

struct sof_selector_ipc4_config comp_data::sel_ipc4_cfg

◆ sink_format [1/2]

enum sof_ipc_frame comp_data::sink_format

sink frame format

◆ sink_format [2/2]

enum sof_ipc_frame comp_data::sink_format

sink frame format

◆ sink_period_bytes

uint32_t comp_data::sink_period_bytes

sink number of period bytes

◆ sink_rate

uint32_t comp_data::sink_rate

◆ sink_stream

struct audio_stream_rtnr comp_data::sink_stream

◆ source_channel

int comp_data::source_channel

◆ source_format [1/2]

enum sof_ipc_frame comp_data::source_format

source frame format

◆ source_format [2/2]
