Audio component operations table. More...

#include <src/include/sof/audio/component.h>

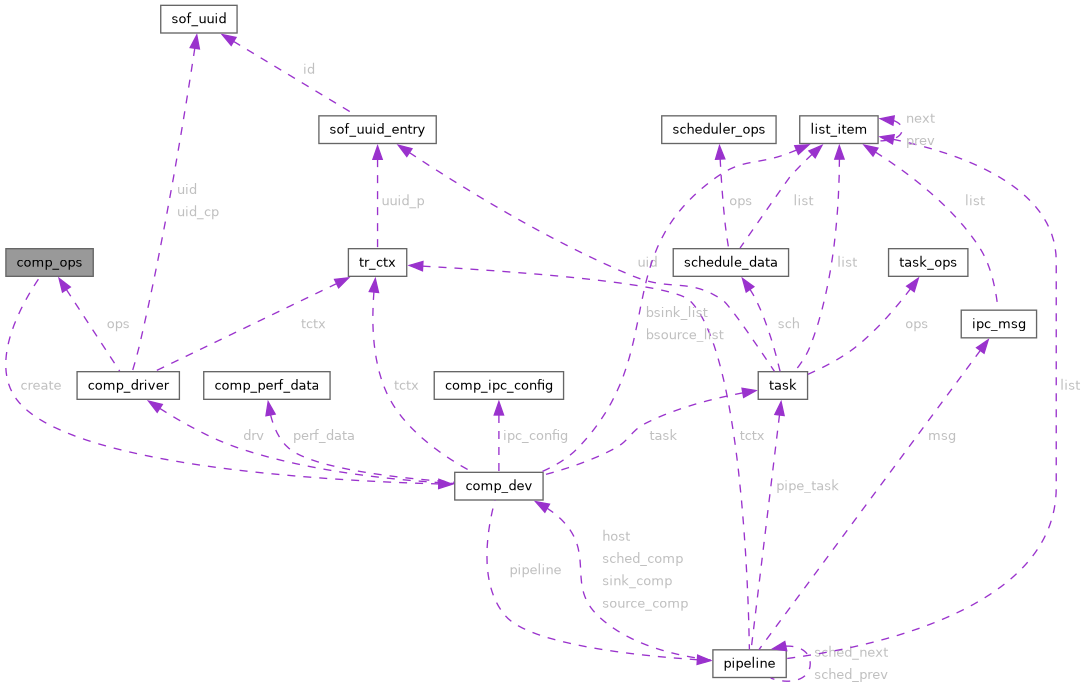

Collaboration diagram for comp_ops:

[legend]

Data Fields
struct comp_dev (	create )(const struct comp_driver drv, const struct comp_ipc_config ipc_config, const void *spec)
	Creates a new component device.

void(*	free )(struct comp_dev *dev)
	Called to delete the specified component device.

int(*	params )(struct comp_dev dev, struct sof_ipc_stream_params params)
	Sets component audio stream parameters.

int(*	dai_get_hw_params )(struct comp_dev dev, struct sof_ipc_stream_params params, int dir)
	Fetches hardware stream parameters.

int(*	dai_config )(struct dai_data dd, struct comp_dev dev, struct ipc_config_dai dai_config, const void dai_spec_config)
	Configures attached DAI.

int(*	cmd )(struct comp_dev dev, int cmd, void data, int max_data_size)
	Used to pass standard and bespoke commands (with optional data).

int(*	trigger )(struct comp_dev *dev, int cmd)
	Trigger, atomic - used to start/stop/pause stream operations.

int(*	prepare )(struct comp_dev *dev)
	Prepares component after params are set.

int(*	reset )(struct comp_dev *dev)
	Resets component.

int(*	copy )(struct comp_dev *dev)
	Copy and process stream data from source to sink buffers.

int(*	position )(struct comp_dev dev, struct sof_ipc_stream_posn posn)
	Retrieves component rendering position.

int(*	get_attribute )(struct comp_dev dev, uint32_t type, void value)
	Gets attribute in component.

int(*	set_attribute )(struct comp_dev dev, uint32_t type, void value)
	Sets attribute in component.

int(*	dai_ts_config )(struct comp_dev *dev)
	Configures timestamping in attached DAI.

int(*	dai_ts_start )(struct comp_dev *dev)
	Starts timestamping.

int(*	dai_ts_stop )(struct comp_dev *dev)
	Stops timestamping.

int(*	dai_ts_get )(struct comp_dev dev, struct timestamp_data tsd)
	Gets timestamp.

int(*	bind )(struct comp_dev dev, const struct bind_info bind_data)
	Bind, atomic - used to notify component of bind event.

int(*	unbind )(struct comp_dev dev, const struct bind_info unbind_data)
	Unbind, atomic - used to notify component of unbind event.

int(*	get_large_config )(struct comp_dev dev, uint32_t param_id, bool first_block, bool last_block, uint32_t data_offset, char *data)
	Gets large config in component.

int(*	set_large_config )(struct comp_dev dev, uint32_t param_id, bool first_block, bool last_block, uint32_t data_offset, const char data)
	Set large config in component.

uint64_t(*	get_total_data_processed )(struct comp_dev *dev, uint32_t stream_no, bool input)
	Returns total data processed in number of bytes.

Detailed Description

Audio component operations table.

All component operations must return 0 for success, negative values for errors and 1 to stop the pipeline walk operation unless specified otherwise in the operation documentation.

Field Documentation

◆ bind

int(* comp_ops::bind) (struct comp_dev *dev, const struct bind_info *bind_data)

Bind, atomic - used to notify component of bind event.

Parameters

[in,out]	dev	Component device.
[in]	bind_data	Bind info.

Returns: 0 on success, negative error code on failure.

◆ cmd

int(* comp_ops::cmd) (struct comp_dev *dev, int cmd, void *data, int max_data_size)

Used to pass standard and bespoke commands (with optional data).

Parameters

[in,out]	dev	Component device.
[in]	cmd	Command.
[in,out]	data	Command data.
[in]	max_data_size	Max size of returned data acceptable by caller for 'get' commands.

Returns: 0 on success, negative error code on failure.

◆ copy

int(* comp_ops::copy) (struct comp_dev *dev)

Copy and process stream data from source to sink buffers.

Parameters

[in,out] dev Component device.

Returns: Number of copied frames, or negative error code on failure.

◆ create

struct comp_dev *(* comp_ops::create) (const struct comp_driver *drv, const struct comp_ipc_config *ipc_config, const void *spec)

Creates a new component device.

Parameters

[in]	drv	Parent component driver.
[in]	ipc_config	Component parameters.
[in]	spec	Pointer to initialization data.

Returns: Pointer to the new component device, or NULL on failure.

◆ dai_config

int(* comp_ops::dai_config) (struct dai_data *dd, struct comp_dev *dev, struct ipc_config_dai *dai_config, const void *dai_spec_config)

Configures attached DAI.

Parameters

[in,out]	dd	DAI data context.
[in,out]	dev	Component device.
[in]	dai_config	DAI configuration.
[in]	dai_spec_config	DAI specific configuration data.

Returns: 0 on success, negative error code on failure.

◆ dai_get_hw_params

int(* comp_ops::dai_get_hw_params) (struct comp_dev *dev, struct sof_ipc_stream_params *params, int dir)

Fetches hardware stream parameters.

Parameters

[in]	dev	Component device.
[out]	params	Receives copy of stream parameters retrieved from DAI HW settings.
[in]	dir	Stream direction (enum sof_ipc_stream_direction).

Returns: 0 on success, negative error code on failure.

◆ dai_ts_config

int(* comp_ops::dai_ts_config) (struct comp_dev *dev)

Configures timestamping in attached DAI.

Parameters

[in,out] dev Component device.

Returns: 0 on success, negative error code on failure.

◆ dai_ts_get

int(* comp_ops::dai_ts_get) (struct comp_dev *dev, struct timestamp_data *tsd)

Gets timestamp.

Parameters

[in]	dev	Component device.
[out]	tsd	Receives timestamp data.

Returns: 0 on success, negative error code on failure.

◆ dai_ts_start

int(* comp_ops::dai_ts_start) (struct comp_dev *dev)

Starts timestamping.

Parameters

[in,out] dev Component device.

Returns: 0 on success, negative error code on failure.

◆ dai_ts_stop

int(* comp_ops::dai_ts_stop) (struct comp_dev *dev)

Stops timestamping.

Parameters

[in,out] dev Component device.

Returns: 0 on success, negative error code on failure.

◆ free

void(* comp_ops::free) (struct comp_dev *dev)

Called to delete the specified component device.

Parameters

[in,out] dev Component device to be deleted.

◆ get_attribute

int(* comp_ops::get_attribute) (struct comp_dev *dev, uint32_t type, void *value)

Gets attribute in component.

Parameters

[in]	dev	Component device.
[in]	type	Attribute type.
[out]	value	Attribute value buffer.

Returns: 0 if succeeded, error code otherwise.

◆ get_large_config

int(* comp_ops::get_large_config) (struct comp_dev *dev, uint32_t param_id, bool first_block, bool last_block, uint32_t *data_offset, char *data)

Gets large config in component.

Parameters

[in,out]	dev	Component device.
[in]	param_id	Parameter ID for each component.
[in]	first_block	First block of large block.
[in]	last_block	Last block of large block.
[in,out]	data_offset	Block offset filled by callee.
[out]	data	Block data buffer.

Returns: 0 if succeeded, error code otherwise.

◆ get_total_data_processed

uint64_t(* comp_ops::get_total_data_processed) (struct comp_dev *dev, uint32_t stream_no, bool input)

Returns total data processed in number of bytes.

Parameters

[in]	dev	Component device.
[in]	stream_no	Index of input/output stream.
[in]	input	Selects between input (true) or output (false) stream direction.

Returns: Total data processed if succeeded, 0 otherwise.

◆ params

int(* comp_ops::params) (struct comp_dev *dev, struct sof_ipc_stream_params *params)

Sets component audio stream parameters.

Parameters

[in,out]	dev	Component device.
[in,out]	params	Audio (PCM) stream parameters to be set.

Returns: 0 on success, negative error code on failure.

◆ position

int(* comp_ops::position) (struct comp_dev *dev, struct sof_ipc_stream_posn *posn)

Retrieves component rendering position.

Parameters

[in]	dev	Component device.
[out]	posn	Receives reported position.

Returns: 0 on success, negative error code on failure.

◆ prepare

int(* comp_ops::prepare) (struct comp_dev *dev)

Prepares component after params are set.

Parameters

[in,out] dev Component device.

Returns: 0 on success, negative error code on failure.

◆ reset

int(* comp_ops::reset) (struct comp_dev *dev)

Resets component.

Parameters

[in,out] dev Component device.

Returns: 0 on success, negative error code on failure.

◆ set_attribute

int(* comp_ops::set_attribute) (struct comp_dev *dev, uint32_t type, void *value)

Sets attribute in component.

Parameters

[in,out]	dev	Component device.
[in]	type	Attribute type.
[in]	value	Attribute value.

Returns: 0 if succeeded, error code otherwise.

◆ set_large_config

int(* comp_ops::set_large_config) (struct comp_dev *dev, uint32_t param_id, bool first_block, bool last_block, uint32_t data_offset, const char *data)

Set large config in component.

Parameters

[in,out]	dev	Component device.
[in]	param_id	Parameter ID for each component.
[in]	first_block	First block of large block.
[in]	last_block	Last block of large block.
[in]	data_offset	Block offset in large block.
[in]	data	Block data payload.

Returns: 0 if succeeded, error code otherwise.

◆ trigger

int(* comp_ops::trigger) (struct comp_dev *dev, int cmd)

Trigger, atomic - used to start/stop/pause stream operations.

Parameters

[in,out]	dev	Component device.
[in]	cmd	Command, one of COMP_TRIGGER_...

Returns: 0 on success, negative error code on failure.

◆ unbind

int(* comp_ops::unbind) (struct comp_dev *dev, const struct bind_info *unbind_data)

Unbind, atomic - used to notify component of unbind event.

Parameters

[in,out]	dev	Component device.
[in]	unbind_data	Unbind info.

Returns: 0 on success, negative error code on failure.

The documentation for this struct was generated from the following file:

src/include/sof/audio/component.h
