sof_ipc_dai_config Struct Reference

#include <dai.h>

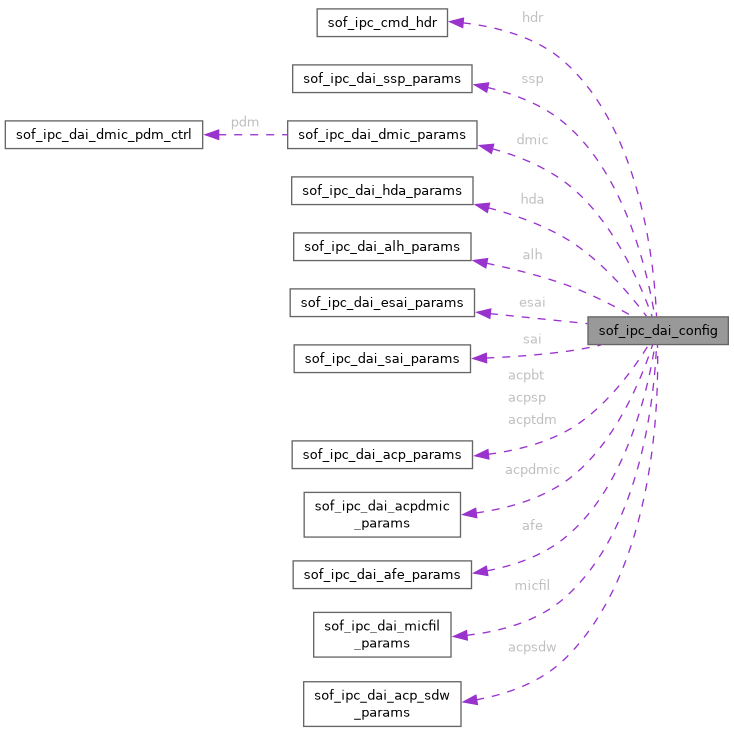

Collaboration diagram for sof_ipc_dai_config:

Data Fields
struct sof_ipc_cmd_hdr	hdr
uint32_t	type
	DAI type - enum sof_ipc_dai_type.
uint32_t	dai_index
	index of this type dai
uint16_t	format
	SOF_DAI_FMT_.
uint8_t	group_id
	group ID, 0 means no group (ABI 3.17)
uint8_t	flags
	SOF_DAI_CONFIG_FLAGS_ (ABI 3.19).
uint32_t	reserved [8]
union {
struct sof_ipc_dai_ssp_params   ssp
struct sof_ipc_dai_dmic_params   dmic
struct sof_ipc_dai_hda_params   hda
struct sof_ipc_dai_alh_params   alh
struct sof_ipc_dai_esai_params   esai
struct sof_ipc_dai_sai_params   sai
struct sof_ipc_dai_acp_params   acpbt
struct sof_ipc_dai_acp_params   acpsp
struct sof_ipc_dai_acpdmic_params   acpdmic
struct sof_ipc_dai_acp_params   acptdm
struct sof_ipc_dai_afe_params   afe
struct sof_ipc_dai_micfil_params   micfil
struct sof_ipc_dai_acp_sdw_params   acpsdw
};

Field Documentation

[union]

union { ... } sof_ipc_dai_config

acpbt

struct sof_ipc_dai_acp_params sof_ipc_dai_config::acpbt

acpdmic

struct sof_ipc_dai_acpdmic_params sof_ipc_dai_config::acpdmic

acpsdw

struct sof_ipc_dai_acp_sdw_params sof_ipc_dai_config::acpsdw

acpsp

struct sof_ipc_dai_acp_params sof_ipc_dai_config::acpsp

acptdm

struct sof_ipc_dai_acp_params sof_ipc_dai_config::acptdm

afe

struct sof_ipc_dai_afe_params sof_ipc_dai_config::afe

alh

struct sof_ipc_dai_alh_params sof_ipc_dai_config::alh

dai_index

uint32_t sof_ipc_dai_config::dai_index

index of this type dai

dmic

struct sof_ipc_dai_dmic_params sof_ipc_dai_config::dmic

esai

struct sof_ipc_dai_esai_params sof_ipc_dai_config::esai

flags

uint8_t sof_ipc_dai_config::flags

SOF_DAI_CONFIG_FLAGS_ (ABI 3.19).

format

uint16_t sof_ipc_dai_config::format

SOF_DAI_FMT_.

group_id

uint8_t sof_ipc_dai_config::group_id

group ID, 0 means no group (ABI 3.17)

hda

struct sof_ipc_dai_hda_params sof_ipc_dai_config::hda

hdr

struct sof_ipc_cmd_hdr sof_ipc_dai_config::hdr

micfil

struct sof_ipc_dai_micfil_params sof_ipc_dai_config::micfil

reserved

uint32_t sof_ipc_dai_config::reserved[8]

sai

struct sof_ipc_dai_sai_params sof_ipc_dai_config::sai

ssp

struct sof_ipc_dai_ssp_params sof_ipc_dai_config::ssp

type

uint32_t sof_ipc_dai_config::type

DAI type - enum sof_ipc_dai_type.

---

The documentation for this struct was generated from the following file:

• /home/lrg/work/sof-dox-work/src/include/ipc/dai.h
