sof_ipc_stream_map Struct Reference

Complete map for each channel of a multichannel stream. More...

#include <channel_map.h>

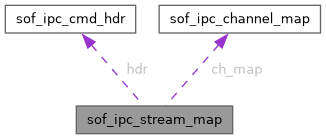

Collaboration diagram for sof_ipc_stream_map:

Data Fields
struct sof_ipc_cmd_hdr	hdr
uint32_t	num_ch_map
uint32_t	reserved [3]
struct sof_ipc_channel_map	ch_map []

Detailed Description

Complete map for each channel of a multichannel stream.

num_ch_map Specifies number of items in the ch_map. More than one transformation per a single channel is allowed (in case multiple external entities are transformed). A channel may be skipped in the transformation list, then it is filled with 0's by the transformation function.

Field Documentation

ch_map

struct sof_ipc_channel_map sof_ipc_stream_map::ch_map[]

hdr

struct sof_ipc_cmd_hdr sof_ipc_stream_map::hdr

num_ch_map

uint32_t sof_ipc_stream_map::num_ch_map

reserved

uint32_t sof_ipc_stream_map::reserved[3]

---

The documentation for this struct was generated from the following file:

• /home/lrg/work/sof-dox-work/src/include/ipc/channel_map.h
