tlv.h File Reference

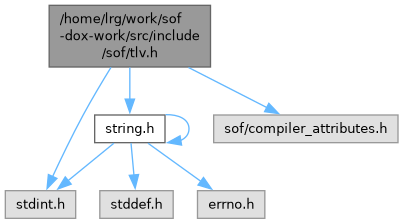

Include dependency graph for tlv.h:

Go to the source code of this file.

Data Structures
struct	sof_tlv
	Type–length–value struct. More...
struct	sof_tl

Functions
struct sof_tlv	__aligned (4)
static struct sof_tlv *	tlv_next (const struct sof_tlv *tlv)
	Allows to step through successive values in a sequence of TLV structures.
static void	tlv_value_uint32_set (struct sof_tlv *tlv, uint32_t type, uint32_t value)
	Fills the TLV Structure (version for 32-bit values).
static void	tlv_value_set (struct sof_tlv *tlv, uint32_t type, uint32_t length, void *value)
	Fills the TLV Structure (general purpose version).
static void	tlv_value_get (const void *data, uint32_t size, uint32_t type, void **value, uint32_t *length)
	Searches a sequence of TLV structures for values of the specified type.
static void *	tlv_value_ptr_get (struct sof_tlv *tlv, uint32_t type)
	Retrieves pointer to the TLV Structure value of the specified type.

Variables
uint32_t	type
uint32_t	length
char	value []
uint32_t	max_length

Function Documentation

__aligned()

struct sof_tlv __aligned

(

4

)

tlv_next()

struct sof_tlv * tlv_next ( const struct sof_tlv * tlv )

inlinestatic

Allows to step through successive values in a sequence of TLV structures.

Parameters

tlv	Pointer to the base TLV.

Returns

struct sof_tlv* Pointer to the next TLV.

tlv_value_get()

void tlv_value_get ( const void * data, uint32_t size, uint32_t type, void ** value, uint32_t * length )

inlinestatic

Searches a sequence of TLV structures for values of the specified type.

Parameters

data	Pointer to the beginning of the TLV sequence.
size	The size of the data block containing the TLV structure sequences.
type	The type of the searched value.
value	A pointer that will point to the found value.
length	The size of the found value.

tlv_value_ptr_get()

void * tlv_value_ptr_get ( struct sof_tlv * tlv, uint32_t type )

inlinestatic

Retrieves pointer to the TLV Structure value of the specified type.

Parameters

tlv	TLV struct pointer.
type	Value type.

Returns

Value pointer

tlv_value_set()

void tlv_value_set ( struct sof_tlv * tlv, uint32_t type, uint32_t length, void * value )

inlinestatic

Fills the TLV Structure (general purpose version).

Parameters

tlv	TLV struct pointer.
type	Value type.
length	Value size.
value	Pointer to the value.

tlv_value_uint32_set()

void tlv_value_uint32_set ( struct sof_tlv * tlv, uint32_t type, uint32_t value )

inlinestatic

Fills the TLV Structure (version for 32-bit values).

Parameters

tlv	TLV struct pointer.
type	Value type.
value	The value.

Variable Documentation

length

uint32_t length

max_length

uint32_t max_length

type

uint32_t type

value

char value[]
