trace-soflogger.h File Reference

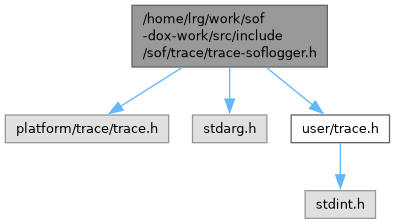

Include dependency graph for trace-soflogger.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	trace_filter

Macros
#define	_DECLARE_LOG_ENTRY(lvl, format, comp_class, n_params)
	The start of this linker output MUST match the 'ldc_entry_header' struct defined in the logger program running in user space.
#define	_TRACE_EVENT_MAX_ARGUMENT_COUNT   4
#define	trace_event_with_ids(class, ctx, id_1, id_2, format, ...)
#define	trace_event_atomic_with_ids(class, ctx, id_1, id_2, format, ...)
#define	trace_warn_with_ids(class, ctx, id_1, id_2, format, ...)
#define	trace_warn_atomic_with_ids(class, ctx, id_1, id_2, format, ...)
#define	_trace_event_with_ids(lvl, class, ctx, id_1, id_2, format, ...)
#define	_trace_event_atomic_with_ids(lvl, class, ctx, id_1, id_2, format, ...)
#define	MTRACE_DUPLICATION_LEVEL   LOG_LEVEL_ERROR
#define	trace_point(x)
#define	BASE_LOG_ASSERT_FAIL_MSG
#define	CT_ASSERT(COND, MESSAGE)
#define	trace_check_size_uint32(a)
#define	STATIC_ASSERT_ARG_SIZE(...)
#define	_log_message(log_func, atomic, lvl, comp_class, ctx, id_1, id_2, format, ...)
	_log_message is where the memory-saving dictionary magic described above happens: the "format" string argument is moved to a special linker section and replaced by a &log_entry pointer to it.
#define	_log_nodict(atomic, n_args, lvl, format, ...)
#define	tracev_event_with_ids(class, ctx, id_1, id_2, format, ...)
#define	tracev_event_atomic_with_ids(class, ctx, id_1, id_2, format, ...)
#define	trace_error_with_ids(...)
#define	trace_error_atomic_with_ids(...)
#define	trace_dev_err(get_ctx_m, get_id_m, get_subid_m, dev, fmt, ...)
	Trace from a device on err level.
#define	trace_dev_warn(get_ctx_m, get_id_m, get_subid_m, dev, fmt, ...)
	Trace from a device on warning level.
#define	trace_dev_info(get_ctx_m, get_id_m, get_subid_m, dev, fmt, ...)
	Trace from a device on info level.
#define	trace_dev_dbg(get_ctx_m, get_id_m, get_subid_m, dev, fmt, ...)
	Trace from a device on dbg level.
#define	tr_err_atomic(ctx, fmt, ...)
#define	tr_warn_atomic(ctx, fmt, ...)
#define	tr_info_atomic(ctx, fmt, ...)
#define	tr_dbg_atomic(ctx, fmt, ...)
#define	tr_err(ctx, fmt, ...)
#define	tr_warn(ctx, fmt, ...)
#define	tr_info(ctx, fmt, ...)
#define	tr_dbg(ctx, fmt, ...)
#define	mtrace_printf(log_level, format_str, ...)
	Direct, low-level access to mbox / shared memory logging when DMA tracing is either not initialized yet or disabled or found broken for any reason.

Typedefs
typedef void(*	log_func_t) (bool send_atomic, const void *log_entry, const struct tr_ctx *ctx, uint32_t lvl, uint32_t id_1, uint32_t id_2, int arg_count, va_list args)

Functions
static struct trace *	trace_get (void)
void	trace_flush_dma_to_mbox (void)
void	trace_on (void)
void	trace_off (void)
void	trace_init (struct sof *sof)
void	trace_log_filtered (bool send_atomic, const void *log_entry, const struct tr_ctx *ctx, uint32_t lvl, uint32_t id_1, uint32_t id_2, int arg_count, va_list args)
void	trace_log_unfiltered (bool send_atomic, const void *log_entry, const struct tr_ctx *ctx, uint32_t lvl, uint32_t id_1, uint32_t id_2, int arg_count, va_list args)
struct sof_ipc_trace_filter_elem *	trace_filter_fill (struct sof_ipc_trace_filter_elem *elem, struct sof_ipc_trace_filter_elem *end, struct trace_filter *filter)
int	trace_filter_update (const struct trace_filter *elem)
void	mtrace_dict_entry (bool atomic_context, uint32_t log_entry_pointer, int n_args,...)
	Appends one SOF dictionary entry and log statement to the ring buffer implementing the 'etrace' in shared memory.
void	mtrace_event (const char *complete_packet, uint32_t length)
	Posts a fully prepared log header + log entry.
void	_log_sofdict (log_func_t sofdict_logf, bool atomic, const void *log_entry, const struct tr_ctx *ctx, const uint32_t lvl, uint32_t id_1, uint32_t id_2, int arg_count,...)

Macro Definition Documentation

_DECLARE_LOG_ENTRY

#define _DECLARE_LOG_ENTRY	(		lvl,
			format,
			comp_class,
			n_params )

Value:

    __section(".static_log." #lvl)              \
    static const struct {                   \
        uint32_t level;                 \
        uint32_t component_class;           \
        uint32_t params_num;                \
        uint32_t line_idx;              \
        uint32_t file_name_len;             \
        uint32_t text_len;              \
        const char file_name[sizeof(RELATIVE_FILE)];    \
        const char text[sizeof(format)];        \
    } log_entry = {                     \
        lvl,                        \
        comp_class,                 \
        n_params,                   \
        __LINE__,                   \
        sizeof(RELATIVE_FILE),              \
        sizeof(format),                 \
        RELATIVE_FILE,                  \
        format                      \
    }

The start of this linker output MUST match the 'ldc_entry_header' struct defined in the logger program running in user space.

_log_message

#define _log_message	(		log_func,
			atomic,
			lvl,
			comp_class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

do {                                            \
    _DECLARE_LOG_ENTRY(lvl, format, comp_class,                 \
               META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__));      \
    STATIC_ASSERT_ARG_SIZE(__VA_ARGS__);                        \
    STATIC_ASSERT(_TRACE_EVENT_MAX_ARGUMENT_COUNT >=                \
            META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__),          \
        BASE_LOG_ASSERT_FAIL_MSG                        \
    );                                      \
    _log_sofdict(log_func, atomic, &log_entry, ctx, lvl, id_1, id_2, \
             META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__), ##__VA_ARGS__); \
    _log_nodict(atomic, META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__), \
            lvl, format, ##__VA_ARGS__);            \
} while (0)

_log_message is where the memory-saving dictionary magic described above happens: the "format" string argument is moved to a special linker section and replaced by a &log_entry pointer to it.

This must be a macro for the source location to be meaningful.

_log_nodict

#define _log_nodict	(		atomic,
			n_args,
			lvl,
			format,
			... )

_trace_event_atomic_with_ids

#define _trace_event_atomic_with_ids	(		lvl,
			class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    _log_message(trace_log_filtered, true, lvl, class, ctx, id_1, id_2, format, ##__VA_ARGS__)

_TRACE_EVENT_MAX_ARGUMENT_COUNT

#define _TRACE_EVENT_MAX_ARGUMENT_COUNT   4

_trace_event_with_ids

#define _trace_event_with_ids	(		lvl,
			class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    _log_message(trace_log_filtered, false, lvl, class, ctx, id_1, id_2, format, ##__VA_ARGS__)

BASE_LOG_ASSERT_FAIL_MSG

#define BASE_LOG_ASSERT_FAIL_MSG

Value:

unsupported_amount_of_params_in_trace_event\
_thrown_from_macro_BASE_LOG_in_trace_h

CT_ASSERT

#define CT_ASSERT	(		COND,
			MESSAGE )

Value:

    ((void)sizeof(char[1 - 2 * !(COND)]))

MTRACE_DUPLICATION_LEVEL

#define MTRACE_DUPLICATION_LEVEL   LOG_LEVEL_ERROR

mtrace_printf

#define mtrace_printf	(		log_level,
			format_str,
			... )

Value:

    do {                                \
        STATIC_ASSERT(META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__)  \
                  <= _TRACE_EVENT_MAX_ARGUMENT_COUNT,   \
                  too_many_mtrace_printf_arguments);    \
        _DECLARE_LOG_ENTRY(log_level, format_str, _TRACE_INV_CLASS, \
                   META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__)); \
        mtrace_dict_entry(true, (uint32_t)&log_entry,           \
                  META_COUNT_VARAGS_BEFORE_COMPILE(__VA_ARGS__), \
                  ##__VA_ARGS__);           \
    } while (0)

Direct, low-level access to mbox / shared memory logging when DMA tracing is either not initialized yet or disabled or found broken for any reason.

To keep it simpler than and with minimal dependencies on the huge number of lines above, this does not check arguments at compile time. There is neither log level filtering, throttling or any other advanced feature.

STATIC_ASSERT_ARG_SIZE

#define STATIC_ASSERT_ARG_SIZE

(

...

)

Value:

    META_MAP(1, trace_check_size_uint32, __VA_ARGS__)

tr_dbg

#define tr_dbg	(		ctx,
			fmt,
			... )

Value:

    tracev_event_with_ids(_TRACE_INV_CLASS, ctx, \
                  _TRACE_INV_ID, _TRACE_INV_ID, fmt, ##__VA_ARGS__)

tr_dbg_atomic

#define tr_dbg_atomic	(		ctx,
			fmt,
			... )

Value:

    tracev_event_atomic_with_ids(_TRACE_INV_CLASS, ctx, \
                     _TRACE_INV_ID, _TRACE_INV_ID, \
                     fmt, ##__VA_ARGS__)

tr_err

#define tr_err	(		ctx,
			fmt,
			... )

Value:

    trace_error_with_ids(_TRACE_INV_CLASS, ctx, \
                 _TRACE_INV_ID, _TRACE_INV_ID, fmt, ##__VA_ARGS__)

tr_err_atomic

#define tr_err_atomic	(		ctx,
			fmt,
			... )

Value:

    trace_error_atomic_with_ids(_TRACE_INV_CLASS, ctx, \
                    _TRACE_INV_ID, _TRACE_INV_ID, \
                    fmt, ##__VA_ARGS__)

tr_info

#define tr_info	(		ctx,
			fmt,
			... )

Value:

    trace_event_with_ids(_TRACE_INV_CLASS, ctx, \
                 _TRACE_INV_ID, _TRACE_INV_ID, fmt, ##__VA_ARGS__)

tr_info_atomic

#define tr_info_atomic	(		ctx,
			fmt,
			... )

Value:

    trace_event_atomic_with_ids(_TRACE_INV_CLASS, ctx, \
                    _TRACE_INV_ID, _TRACE_INV_ID, \
                    fmt, ##__VA_ARGS__)

tr_warn

#define tr_warn	(		ctx,
			fmt,
			... )

Value:

    trace_warn_with_ids(_TRACE_INV_CLASS, ctx, \
                _TRACE_INV_ID, _TRACE_INV_ID, fmt, ##__VA_ARGS__)

tr_warn_atomic

#define tr_warn_atomic	(		ctx,
			fmt,
			... )

Value:

    trace_warn_atomic_with_ids(_TRACE_INV_CLASS, ctx, \
                   _TRACE_INV_ID, _TRACE_INV_ID, \
                   fmt, ##__VA_ARGS__)

trace_check_size_uint32

#define trace_check_size_uint32

(

a

)

Value:

    CT_ASSERT(sizeof(a) <= sizeof(uint32_t), "error: trace argument is bigger than a uint32_t");

trace_dev_dbg

#define trace_dev_dbg	(		get_ctx_m,
			get_id_m,
			get_subid_m,
			dev,
			fmt,
			... )

Value:

    tracev_event_with_ids(_TRACE_INV_CLASS,             \
                  get_ctx_m(dev), get_id_m(dev),        \
                  get_subid_m(dev), fmt, ##__VA_ARGS__)

Trace from a device on dbg level.

trace_dev_err

#define trace_dev_err	(		get_ctx_m,
			get_id_m,
			get_subid_m,
			dev,
			fmt,
			... )

Value:

    trace_error_with_ids(_TRACE_INV_CLASS, get_ctx_m(dev),      \
                 get_id_m(dev), get_subid_m(dev),       \
                 fmt, ##__VA_ARGS__)

Trace from a device on err level.

Parameters

get_ctx_m	Macro that can retrieve trace context from dev
get_id_m	Macro that can retrieve device's id0 from the dev
get_subid_m	Macro that can retrieve device's id1 from the dev
dev	Device
fmt	Format followed by parameters
...	Parameters

trace_dev_info

#define trace_dev_info	(		get_ctx_m,
			get_id_m,
			get_subid_m,
			dev,
			fmt,
			... )

Value:

    trace_event_with_ids(_TRACE_INV_CLASS, get_ctx_m(dev),      \
                 get_id_m(dev), get_subid_m(dev),       \
                 fmt, ##__VA_ARGS__)

Trace from a device on info level.

trace_dev_warn

#define trace_dev_warn	(		get_ctx_m,
			get_id_m,
			get_subid_m,
			dev,
			fmt,
			... )

Value:

    trace_warn_with_ids(_TRACE_INV_CLASS, get_ctx_m(dev),       \
                get_id_m(dev), get_subid_m(dev),        \
                fmt, ##__VA_ARGS__)

Trace from a device on warning level.

trace_error_atomic_with_ids

#define trace_error_atomic_with_ids

(

...

)

Value:

    trace_event_atomic_with_ids(__VA_ARGS__)

trace_error_with_ids

#define trace_error_with_ids

(

...

)

Value:

trace_event_with_ids(__VA_ARGS__)

trace_event_atomic_with_ids

#define trace_event_atomic_with_ids	(		class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    _trace_event_atomic_with_ids(LOG_LEVEL_INFO, class, ctx, id_1, id_2, \
                     format, ##__VA_ARGS__)

trace_event_with_ids

#define trace_event_with_ids	(		class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    _trace_event_with_ids(LOG_LEVEL_INFO, class, ctx, id_1, id_2,   \
                  format, ##__VA_ARGS__)

trace_point

#define trace_point

(

x

)

Value:

platform_trace_point(x)

trace_warn_atomic_with_ids

#define trace_warn_atomic_with_ids	(		class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    _trace_event_atomic_with_ids(LOG_LEVEL_WARNING, class,      \
                     ctx, id_1, id_2,           \
                     format, ##__VA_ARGS__)

trace_warn_with_ids

#define trace_warn_with_ids	(		class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    _trace_event_with_ids(LOG_LEVEL_WARNING, class, ctx, id_1, id_2, \
                  format, ##__VA_ARGS__)

tracev_event_atomic_with_ids

#define tracev_event_atomic_with_ids	(		class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    trace_unused(class, ctx, id_1, id_2, format, ##__VA_ARGS__)

tracev_event_with_ids

#define tracev_event_with_ids	(		class,
			ctx,
			id_1,
			id_2,
			format,
			... )

Value:

    trace_unused(class, ctx, id_1, id_2, format, ##__VA_ARGS__)

Typedef Documentation

log_func_t

typedef void(* log_func_t) (bool send_atomic, const void *log_entry, const struct tr_ctx *ctx, uint32_t lvl, uint32_t id_1, uint32_t id_2, int arg_count, va_list args)

Function Documentation

_log_sofdict()

void _log_sofdict	(	log_func_t	sofdict_logf,
		bool	atomic,
		const void *	log_entry,
		const struct tr_ctx *	ctx,
		const uint32_t	lvl,
		uint32_t	id_1,
		uint32_t	id_2,
		int	arg_count,
			... )

mtrace_dict_entry()

void mtrace_dict_entry	(	bool	atomic_context,
		uint32_t	log_entry_pointer,
		int	n_args,
			... )

Appends one SOF dictionary entry and log statement to the ring buffer implementing the 'etrace' in shared memory.

Parameters

atomic_context	Take the trace->lock if false.
log_entry_pointer	dictionary index produced by the _DECLARE_LOG_ENTRY macro.
n_args	number of va_args

mtrace_event()

void mtrace_event	(	const char *	complete_packet,
		uint32_t	length )

Posts a fully prepared log header + log entry.

trace_filter_fill()

struct sof_ipc_trace_filter_elem * trace_filter_fill	(	struct sof_ipc_trace_filter_elem *	elem,
		struct sof_ipc_trace_filter_elem *	end,
		struct trace_filter *	filter )

trace_filter_update()

int trace_filter_update

(

const struct trace_filter *

elem

)

trace_flush_dma_to_mbox()

void trace_flush_dma_to_mbox

(

void

)

trace_get()

struct trace * trace_get ( void )

inlinestatic

trace_init()

void trace_init

(

struct sof *

sof

)

trace_log_filtered()

void trace_log_filtered	(	bool	send_atomic,
		const void *	log_entry,
		const struct tr_ctx *	ctx,
		uint32_t	lvl,
		uint32_t	id_1,
		uint32_t	id_2,
		int	arg_count,
		va_list	args )

trace_log_unfiltered()

void trace_log_unfiltered	(	bool	send_atomic,
		const void *	log_entry,
		const struct tr_ctx *	ctx,
		uint32_t	lvl,
		uint32_t	id_1,
		uint32_t	id_2,
		int	arg_count,
		va_list	args )

trace_off()

void trace_off

(

void

)

trace_on()

void trace_on

(

void

)
