userspace_helper.h File Reference

Include dependency graph for userspace_helper.h:

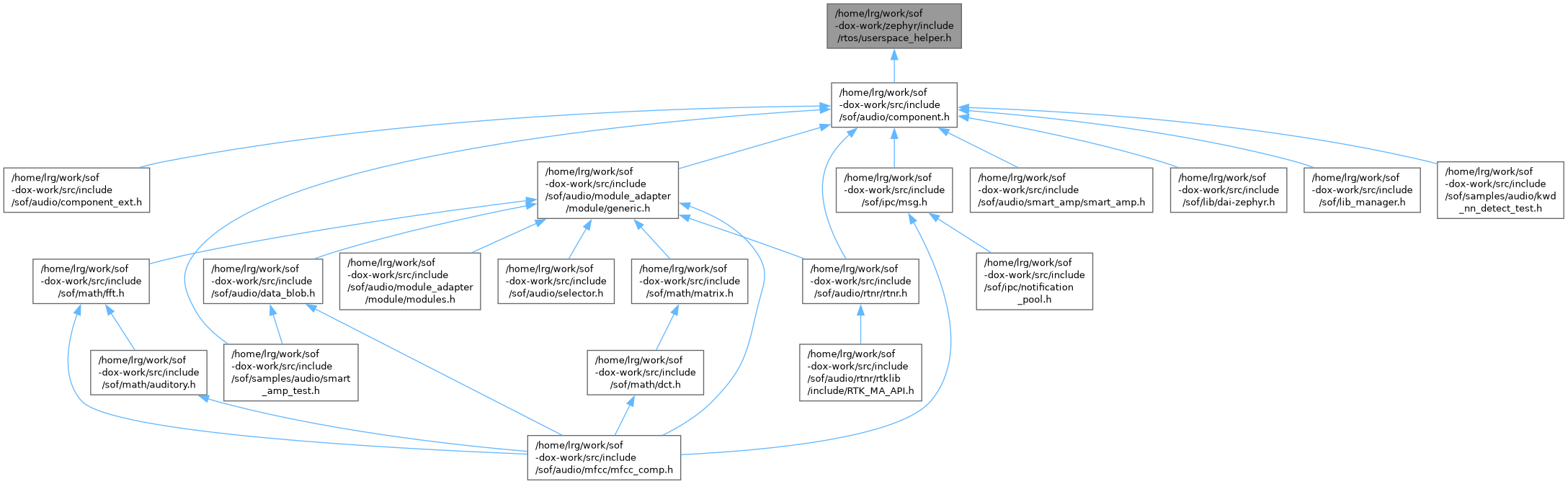

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	APP_TASK_BSS
	Userspace support functions.
#define	APP_TASK_DATA
#define	APP_SYSUSER_BSS
#define	APP_SYSUSER_DATA

Functions
void *	user_stack_allocate (size_t stack_size, uint32_t options)
	Allocates thread stack memory.
int	user_stack_free (void *p_stack)
	Free thread stack memory.
void	module_driver_heap_remove (struct k_heap *mod_drv_heap)
	Free private processing module heap.
static int	user_access_to_mailbox (struct k_mem_domain *domain, k_tid_t thread_id)
static int	user_memory_attach_system_user_partition (struct k_mem_domain *dom)
	Attach SOF system user memory partition to a memory domain.

Macro Definition Documentation

APP_SYSUSER_BSS

#define APP_SYSUSER_BSS

APP_SYSUSER_DATA

#define APP_SYSUSER_DATA

APP_TASK_BSS

#define APP_TASK_BSS

Userspace support functions.

APP_TASK_DATA

#define APP_TASK_DATA

Function Documentation

module_driver_heap_remove()

void module_driver_heap_remove

(

struct k_heap *

mod_drv_heap

)

Free private processing module heap.

Parameters

mod_drv_heap

pointer to the k_heap structure.

Note

Function used only when CONFIG_USERSPACE is set. Frees private module heap.

user_access_to_mailbox()

int user_access_to_mailbox ( struct k_mem_domain * domain, k_tid_t thread_id )

inlinestatic

user_memory_attach_system_user_partition()

int user_memory_attach_system_user_partition ( struct k_mem_domain * dom )

inlinestatic

Attach SOF system user memory partition to a memory domain.

Parameters

dom	- memory domain to attach the sysuser partition to.

Returns

0 for success, error otherwise.

Note

Function used only when CONFIG_USERSPACE is set. The sysuser partition contains shared objects required by user-space modules.

user_stack_allocate()

void * user_stack_allocate	(	size_t	stack_size,
		uint32_t	options )

Allocates thread stack memory.

Parameters

stack_size	Required stack size.
options	Stack configuration options K_USER - when creating user thread 0 - when creating kernel thread

Returns

pointer to the stack or NULL if not created.

When CONFIG_USERSPACE not set function calls rballoc_align(), otherwise it uses k_thread_stack_alloc() routine.

user_stack_free()

int user_stack_free

(

void *

p_stack

)

Free thread stack memory.

Parameters

p_stack

Pointer to the stack.

Returns

0 for success, error otherwise.

Note

When CONFIG_USERSPACE not set function calls rfree(), otherwise it uses k_thread_stack_free() routine.
