uuid.h File Reference

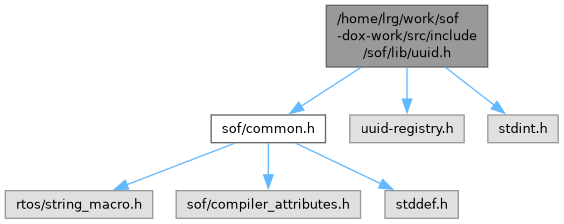

Include dependency graph for uuid.h:

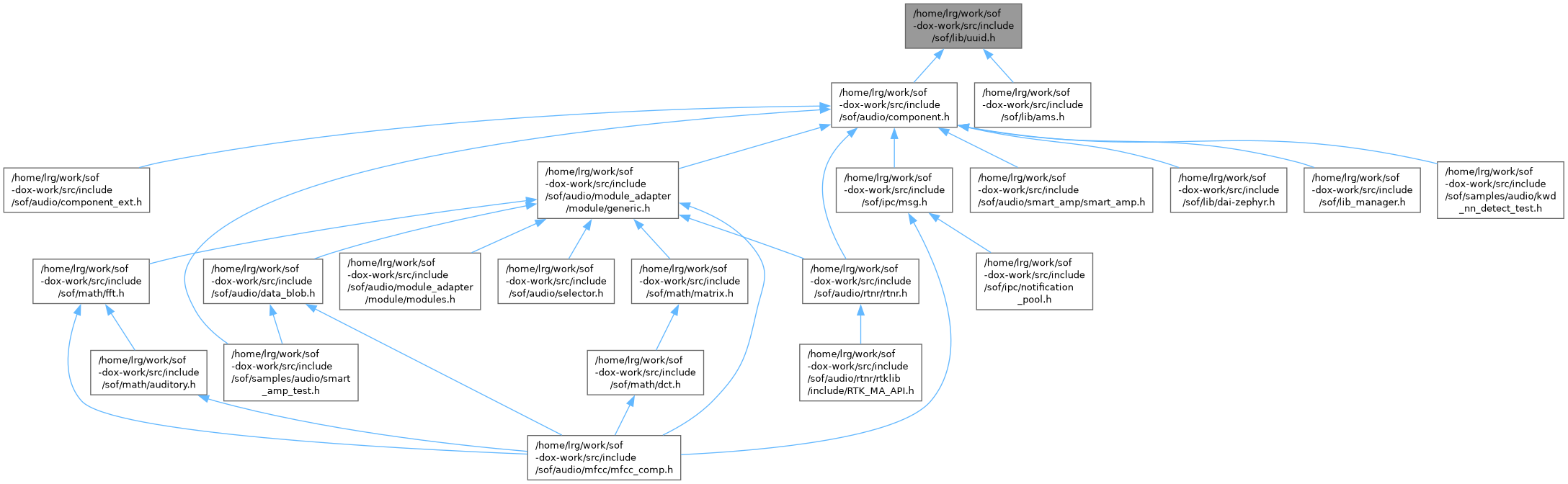

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	sof_uuid
	UUID (Universally Unique IDentifier) structure. More...
struct	sof_uuid_entry
	Connects UUID with component description. More...

Macros
#define	UUID_SIZE   16
	UUID is 16 bytes long.
#define	UUID_NAME_MAX_LEN   32
	UUID name string max length in bytes, including null termination.
#define	_UUID_INIT(va, vb, vc, d0, d1, d2, d3, d4, d5, d6, d7)    { va, vb, vc, { d0, d1, d2, d3, d4, d5, d6, d7 } }
#define	_UUID(uuid_name)   (&_##uuid_name)
#define	_RT_UUID(uuid_name)   (&uuid_name)
#define	_DEF_UUID(entity_name, uuid_name, initializer)
#define	SOF_DEFINE_UUID(entity_name, uuid_name, va, vb, vc, vd0, vd1, vd2, vd3, vd4, vd5, vd6, vd7)
	Declares runtime UUID (aaaaaaaa-bbbb-cccc-d0d1-d2d3d4d5d6d7) and name.
#define	SOF_REG_UUID(name)   _UUIDREG_##name
	Get UUID value sourced from the fixed SOF registry.
#define	SOF_DEFINE_REG_UUID(name)   _DEF_UUID(#name, name##_uuid, SOF_REG_UUID(name))
	Defines UUID sourced from the fixed SOF registry.
#define	SOF_UUID(uuid_name)   _UUID(uuid_name)
	Creates local unique 32-bit representation of UUID structure.
#define	SOF_RT_UUID(uuid_name)   _RT_UUID(uuid_name)
	Dereference unique 32-bit representation of UUID structure in runtime.
