component.h File Reference

Component API definition. More...

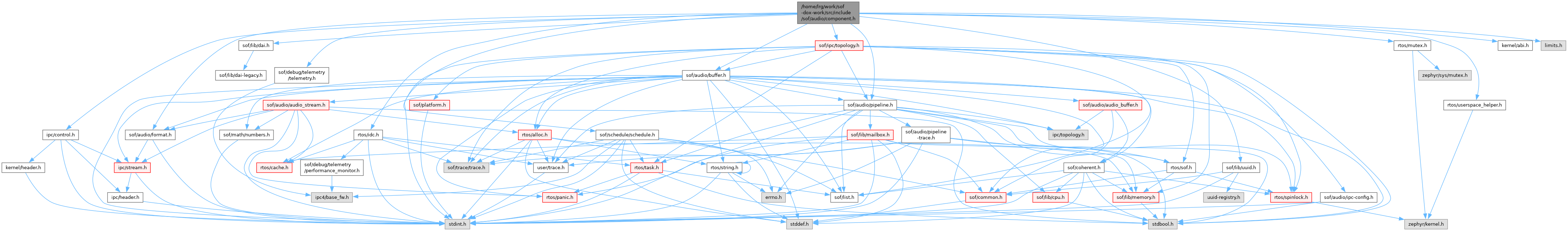

Include dependency graph for component.h:

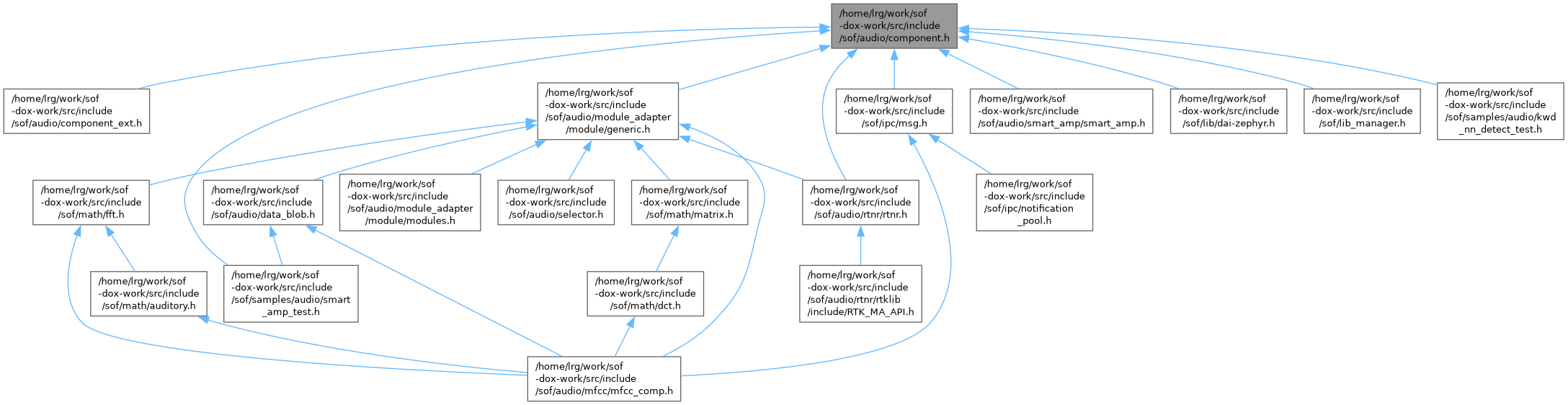

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	bind_info
	Component module binding metadata and endpoint references. More...
struct	comp_ops
	Audio component operations table. More...
struct	comp_driver
	Audio component base driver "class". More...
struct	comp_driver_info
	Holds constant pointer to component driver. More...
struct	comp_ipc_config
	Audio component base configuration from IPC at creation. More...
struct	comp_perf_data
	Component performance measurement tracking data. More...
struct	comp_dev
	Audio component base device "class" used by all other component types. More...
struct	comp_copy_limits
	Struct for use with comp_get_copy_limits() function. More...

Macros
#define	SOF_DRV_UID_NAME(drv)   (drv)->tctx->uuid_p
#define	comp_dev_for_each_producer(_dev, _producer)
	Macro to iterate through component's list of producer buffers.
#define	comp_dev_for_each_producer_safe(_dev, _producer, _next_producer)
	Safe macro to iterate through component's producer buffers allowing buffer deletion.
#define	comp_dev_for_each_consumer(_dev, _consumer)
	Macro to iterate through component's list of consumer buffers.
#define	comp_dev_for_each_consumer_safe(_dev, _consumer, _next_consumer)
	Safe macro to iterate through component's consumer buffers allowing buffer deletion.
#define	comp_set_drvdata(c, data)    (c->priv_data = data)
	Assigns private data to component device.
#define	comp_get_drvdata(c)    (c->priv_data)
	Retrieves driver private data from component device.
#define	DECLARE_MODULE(init)
Audio Component States
#define	COMP_STATE_NOT_EXIST   0
	Component does not exist.
#define	COMP_STATE_INIT   1
	Component being initialised.
#define	COMP_STATE_READY   2
	Component inactive, but ready.
#define	COMP_STATE_SUSPEND   3
	Component suspended.
#define	COMP_STATE_PREPARE   4
	Component prepared.
#define	COMP_STATE_PAUSED   5
	Component paused.
#define	COMP_STATE_ACTIVE   6
	Component active.
#define	COMP_STATE_PRE_ACTIVE   7
	Component after early initialisation.
Standard Component Control Commands
"Value" commands are standard ones, known to the driver while "Data" commands are opaque blobs transferred by the driver. TODO: see also: ref to ipc data structures for commands.
#define	COMP_CMD_SET_VALUE   100
	Set value to component.
#define	COMP_CMD_GET_VALUE   101
	Get value from component.
#define	COMP_CMD_SET_DATA   102
	Set data to component.
#define	COMP_CMD_GET_DATA   103
	Get data from component.
MMAP IPC status
#define	COMP_CMD_IPC_MMAP_RPOS   200
	Host read position.
#define	COMP_CMD_IPC_MMAP_PPOS   201
	DAI presentation position.
#define	COMP_CMD_IPC_MMAP_VOL(chan)   (216 + chan)
	Volume.
Component status
#define	COMP_STATUS_STATE_ALREADY_SET   1
	Comp set state status.
Component attribute types
#define	COMP_ATTR_COPY_TYPE   0
	Comp copy type attribute.
#define	COMP_ATTR_HOST_BUFFER   1
	Comp host buffer attribute.
#define	COMP_ATTR_COPY_DIR   2
	Comp copy direction.
#define	COMP_ATTR_VDMA_INDEX   3
	Comp index of the virtual DMA at the gateway.
#define	COMP_ATTR_BASE_CONFIG   4
	Component base config.
#define	COMP_ATTR_IPC4_CONFIG   5
	Component ipc4 set/get config.
Trace macros
#define	trace_comp_drv_get_id(drv_p)   (-1)
	Retrieves id (-1 = undefined) from the component driver.
#define	trace_comp_drv_get_subid(drv_p)   (-1)
	Retrieves subid (-1 = undefined) from the component driver.
#define	trace_comp_get_id(comp_p)   ((comp_p)->ipc_config.pipeline_id)
	Retrieves id (pipe id) from the component device.
#define	trace_comp_get_subid(comp_p)   ((comp_p)->ipc_config.id)
	Retrieves subid (comp id) from the component device.
#define	trace_comp_drv_get_tr_ctx(drv_p)   ((drv_p)->tctx)
	Retrieves trace context from the component driver.
#define	trace_comp_get_tr_ctx(comp_p)   (&(comp_p)->tctx)
	Retrieves trace context from the component device.
#define	comp_cl_err(drv_p, __e, ...)
	Trace error message from component driver (no comp instance)
#define	comp_cl_warn(drv_p, __e, ...)
	Trace warning message from component driver (no comp instance)
#define	comp_cl_info(drv_p, __e, ...)
	Trace info message from component driver (no comp instance)
#define	comp_cl_dbg(drv_p, __e, ...)
	Trace debug message from component driver (no comp instance)
#define	comp_err(comp_p, __e, ...)
	Trace error message from component device.
#define	comp_warn(comp_p, __e, ...)
	Trace warning message from component device.
#define	comp_info(comp_p, __e, ...)
	Trace info message from component device.
#define	comp_dbg(comp_p, __e, ...)
	Trace debug message from component device.
#define	comp_perf_info(pcd, comp_p)
#define	comp_perf_avg_info(pcd, comp_p)
Component processing domains
#define	COMP_PROCESSING_DOMAIN_LL   0
	Low latency processing domain.
#define	COMP_PROCESSING_DOMAIN_DP   1
	Data processing / worker thread domain.

Enumerations
enum	comp_endpoint_type { COMP_ENDPOINT_HOST , COMP_ENDPOINT_DAI , COMP_ENDPOINT_NODE }
	Type of endpoint this component is connected to in a pipeline. More...
enum	comp_copy_type { COMP_COPY_INVALID = -1 , COMP_COPY_NORMAL = 0 , COMP_COPY_BLOCKING , COMP_COPY_ONE_SHOT }
	Type of next dma copy mode, changed on runtime. More...
enum	bind_type { COMP_BIND_TYPE_SOURCE , COMP_BIND_TYPE_SINK }
	Component module binding endpoint type. More...
Standard Component Stream Commands
TODO: use IPC versions after 1.1 Most component stream commands match one-to-one IPC stream trigger commands. However we add two PRE_ and two POST_ commands to the set. They are issued internally without matching IPC commands. A single START IPC command is translated into a sequence of PRE_START and START component commands, etc. POST_* commands aren't used so far.
enum	{   COMP_TRIGGER_STOP , COMP_TRIGGER_START , COMP_TRIGGER_PAUSE , COMP_TRIGGER_RELEASE ,   COMP_TRIGGER_RESET , COMP_TRIGGER_PREPARE , COMP_TRIGGER_XRUN , COMP_TRIGGER_PRE_START ,   COMP_TRIGGER_PRE_RELEASE , COMP_TRIGGER_POST_STOP , COMP_TRIGGER_POST_PAUSE , COMP_TRIGGER_NO_ACTION }

Functions
static struct comp_buffer *	comp_dev_get_first_data_producer (struct comp_dev *component)
	Get a pointer to the first comp_buffer object providing data to the component.
static struct comp_buffer *	comp_dev_get_next_data_producer (struct comp_dev *component, struct comp_buffer *producer)
	Get a pointer to the next comp_buffer object providing data to the component.
static struct comp_buffer *	comp_dev_get_next_data_producer_safe (struct comp_dev *component, struct comp_buffer *producer)
	Safely get a pointer to the next comp_buffer object providing data to the component.
static struct comp_buffer *	comp_dev_get_first_data_consumer (struct comp_dev *component)
	Get a pointer to the first comp_buffer object receiving data from the component.
static struct comp_buffer *	comp_dev_get_next_data_consumer (struct comp_dev *component, struct comp_buffer *consumer)
	Get a pointer to the next comp_buffer object receiving data from the component.
static struct comp_buffer *	comp_dev_get_next_data_consumer_safe (struct comp_dev *component, struct comp_buffer *consumer)
	Safely get a pointer to the next comp_buffer object receiving data from the component.
static uint32_t	dev_comp_id (const struct comp_dev *dev)
	Retrieves Component ID from device.
static uint32_t	dev_comp_pipe_id (const struct comp_dev *dev)
	Retrieves Component pipeline ID from device.
static enum sof_comp_type	dev_comp_type (const struct comp_dev *dev)
	Retrieves component type from device.
static void	comp_init (const struct comp_driver *drv, struct comp_dev *dev, size_t bytes)
	Initialize common part of a component device.
static struct comp_dev *	comp_alloc (const struct comp_driver *drv, size_t bytes)
	Allocates memory for the component device and initializes common part.
static void	comp_free_device (struct comp_dev *dev)
	Frees memory allocated for component device.
static struct processing_module *	comp_mod (const struct comp_dev *dev)
	Module adapter associated with a component.
void	sys_comp_dai_init (void)
void	sys_comp_host_init (void)
void	sys_comp_kpb_init (void)
void	sys_comp_selector_init (void)
void	sys_comp_module_aria_interface_init (void)
void	sys_comp_module_asrc_interface_init (void)
void	sys_comp_module_copier_interface_init (void)
void	sys_comp_module_crossover_interface_init (void)
void	sys_comp_module_dcblock_interface_init (void)
void	sys_comp_module_demux_interface_init (void)
void	sys_comp_module_dolby_dax_audio_processing_interface_init (void)
void	sys_comp_module_drc_interface_init (void)
void	sys_comp_module_dts_interface_init (void)
void	sys_comp_module_eq_fir_interface_init (void)
void	sys_comp_module_eq_iir_interface_init (void)
void	sys_comp_module_gain_interface_init (void)
void	sys_comp_module_google_rtc_audio_processing_interface_init (void)
void	sys_comp_module_google_ctc_audio_processing_interface_init (void)
void	sys_comp_module_igo_nr_interface_init (void)
void	sys_comp_module_level_multiplier_interface_init (void)
void	sys_comp_module_mfcc_interface_init (void)
void	sys_comp_module_mixer_interface_init (void)
void	sys_comp_module_mixin_interface_init (void)
void	sys_comp_module_mixout_interface_init (void)
void	sys_comp_module_multiband_drc_interface_init (void)
void	sys_comp_module_mux_interface_init (void)
void	sys_comp_module_nxp_eap_interface_init (void)
void	sys_comp_module_phase_vocoder_interface_init (void)
void	sys_comp_module_rtnr_interface_init (void)
void	sys_comp_module_selector_interface_init (void)
void	sys_comp_module_sound_dose_interface_init (void)
void	sys_comp_module_src_interface_init (void)
void	sys_comp_module_src_lite_interface_init (void)
void	sys_comp_module_stft_process_interface_init (void)
void	sys_comp_module_tdfb_interface_init (void)
void	sys_comp_module_tone_interface_init (void)
void	sys_comp_module_template_interface_init (void)
void	sys_comp_module_tester_interface_init (void)
void	sys_comp_module_volume_interface_init (void)
int	comp_set_state (struct comp_dev *dev, int cmd)
	Component state transition handling.
static void	component_set_nearest_period_frames (struct comp_dev *current, uint32_t rate)
	Set component period frames based on sample rate and period.
void	comp_get_copy_limits (struct comp_buffer *source, struct comp_buffer *sink, struct comp_copy_limits *cl)
	Computes source to sink copy operation boundaries including maximum number of frames that can be transferred.
void	comp_get_copy_limits_frame_aligned (const struct comp_buffer *source, const struct comp_buffer *sink, struct comp_copy_limits *cl)
	Computes source to sink copy operation boundaries including maximum number of frames aligned with requirement that can be transferred.
static int	comp_get_state (const struct comp_dev *dev)
	Get component state.
static int	comp_buffer_get_source_state (const struct comp_buffer *buffer)
	Provide state of a component connected to a buffer as a data provider.
static int	comp_buffer_get_sink_state (const struct comp_buffer *buffer)
	Provide state of a component connected to a buffer as a data consumer.
int	comp_verify_params (struct comp_dev *dev, uint32_t flag, struct sof_ipc_stream_params *params)
	Verify and set component audio parameters.
void	comp_update_ibs_obs_cpc (struct comp_dev *dev)
	Update IBS, OBS, CPC, LL chunk size for component.
void	comp_init_performance_data (struct comp_dev *dev)
	Initialize performance data fields if component has assigned slot in measurement window.
bool	comp_update_performance_data (struct comp_dev *dev, uint32_t cycles_used)
	Update performance data entry for component and check for budget violation.
static int	user_get_buffer_memory_region (const struct comp_driver *drv)
	Get memory region flag for component buffer allocations.
Component registration
int	comp_register (struct comp_driver_info *drv)
	Registers the component driver on the list of available components.
void	comp_unregister (struct comp_driver_info *drv)
	Unregisters the component driver from the list of available components.
int	comp_set_adapter_ops (const struct comp_driver *drv, const struct module_interface *ops)
	Set adapter ops for a dynamically created driver.
const struct comp_driver *	comp_driver_find (const struct sof_uuid *uuid, uint32_t type)
	Look up a registered SOF component driver by UUID or driver type.
XRUN handling.
static void	comp_underrun (struct comp_dev *dev, struct comp_buffer *source, uint32_t copy_bytes)
	Called by the component device when underrun is detected.
static void	comp_overrun (struct comp_dev *dev, struct comp_buffer *sink, uint32_t copy_bytes)
	Called by component device when overrun is detected.

Detailed Description

Component API definition.

Author

Liam Girdwood liam..nosp@m.r.gi.nosp@m.rdwoo.nosp@m.d@li.nosp@m.nux.i.nosp@m.ntel.nosp@m..com

Keyon Jie yang..nosp@m.jie@.nosp@m.linux.nosp@m..int.nosp@m.el.co.nosp@m.m
