dai-intel.h File Reference

IPC definitions. More...

Include dependency graph for dai-intel.h:

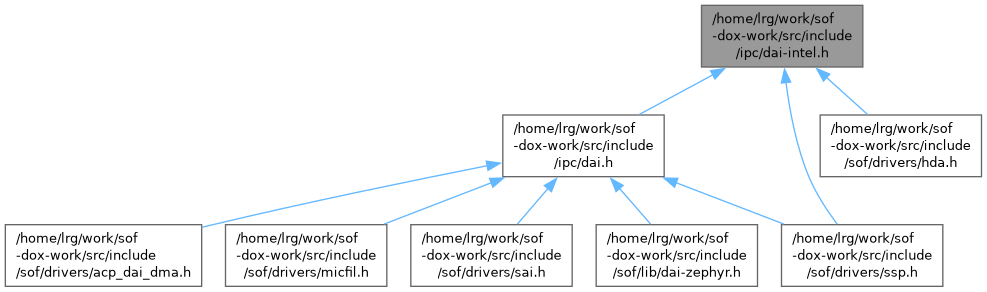

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	sof_ipc_dai_ssp_params
struct	sof_ipc_dai_hda_params
struct	sof_ipc_dai_alh_params
struct	sof_ipc_dai_dmic_pdm_ctrl
struct	sof_ipc_dai_dmic_params

Macros
#define	SOF_DAI_INTEL_SSP_QUIRK_TINTE   (1 << 0)
#define	SOF_DAI_INTEL_SSP_QUIRK_PINTE   (1 << 1)
#define	SOF_DAI_INTEL_SSP_QUIRK_SMTATF   (1 << 2)
#define	SOF_DAI_INTEL_SSP_QUIRK_MMRATF   (1 << 3)
#define	SOF_DAI_INTEL_SSP_QUIRK_PSPSTWFDFD   (1 << 4)
#define	SOF_DAI_INTEL_SSP_QUIRK_PSPSRWFDFD   (1 << 5)
#define	SOF_DAI_INTEL_SSP_QUIRK_LBM   (1 << 6)
#define	SOF_DAI_INTEL_SSP_FRAME_PULSE_WIDTH_MAX   38
#define	SOF_DAI_INTEL_SSP_SLOT_PADDING_MAX   31
#define	SOF_DAI_INTEL_SSP_MCLK_0_DISABLE   BIT(0)
#define	SOF_DAI_INTEL_SSP_MCLK_1_DISABLE   BIT(1)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_KA   BIT(2)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_KA   BIT(3)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_FS_KA   BIT(4)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_IDLE_HIGH   BIT(5)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_ES   BIT(6)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_ES   BIT(7)
#define	SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_AON   BIT(8)
#define	SOF_DAI_INTEL_DMIC_NUM_CTRL   4

Detailed Description

IPC definitions.

Author

Liam Girdwood liam..nosp@m.r.gi.nosp@m.rdwoo.nosp@m.d@li.nosp@m.nux.i.nosp@m.ntel.nosp@m..com

Keyon Jie yang..nosp@m.jie@.nosp@m.linux.nosp@m..int.nosp@m.el.co.nosp@m.m

Macro Definition Documentation

SOF_DAI_INTEL_DMIC_NUM_CTRL

#define SOF_DAI_INTEL_DMIC_NUM_CTRL   4

SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_ES

#define SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_ES   BIT(7)

SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_IDLE_HIGH

#define SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_IDLE_HIGH   BIT(5)

SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_KA

#define SOF_DAI_INTEL_SSP_CLKCTRL_BCLK_KA   BIT(3)

SOF_DAI_INTEL_SSP_CLKCTRL_FS_KA

#define SOF_DAI_INTEL_SSP_CLKCTRL_FS_KA   BIT(4)

SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_AON

#define SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_AON   BIT(8)

SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_ES

#define SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_ES   BIT(6)

SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_KA

#define SOF_DAI_INTEL_SSP_CLKCTRL_MCLK_KA   BIT(2)

SOF_DAI_INTEL_SSP_FRAME_PULSE_WIDTH_MAX

#define SOF_DAI_INTEL_SSP_FRAME_PULSE_WIDTH_MAX   38

SOF_DAI_INTEL_SSP_MCLK_0_DISABLE

#define SOF_DAI_INTEL_SSP_MCLK_0_DISABLE   BIT(0)

SOF_DAI_INTEL_SSP_MCLK_1_DISABLE

#define SOF_DAI_INTEL_SSP_MCLK_1_DISABLE   BIT(1)

SOF_DAI_INTEL_SSP_QUIRK_LBM

#define SOF_DAI_INTEL_SSP_QUIRK_LBM   (1 << 6)

SOF_DAI_INTEL_SSP_QUIRK_MMRATF

#define SOF_DAI_INTEL_SSP_QUIRK_MMRATF   (1 << 3)

SOF_DAI_INTEL_SSP_QUIRK_PINTE

#define SOF_DAI_INTEL_SSP_QUIRK_PINTE   (1 << 1)

SOF_DAI_INTEL_SSP_QUIRK_PSPSRWFDFD

#define SOF_DAI_INTEL_SSP_QUIRK_PSPSRWFDFD   (1 << 5)

SOF_DAI_INTEL_SSP_QUIRK_PSPSTWFDFD

#define SOF_DAI_INTEL_SSP_QUIRK_PSPSTWFDFD   (1 << 4)

SOF_DAI_INTEL_SSP_QUIRK_SMTATF

#define SOF_DAI_INTEL_SSP_QUIRK_SMTATF   (1 << 2)

SOF_DAI_INTEL_SSP_QUIRK_TINTE

#define SOF_DAI_INTEL_SSP_QUIRK_TINTE   (1 << 0)

SOF_DAI_INTEL_SSP_SLOT_PADDING_MAX

#define SOF_DAI_INTEL_SSP_SLOT_PADDING_MAX   31
