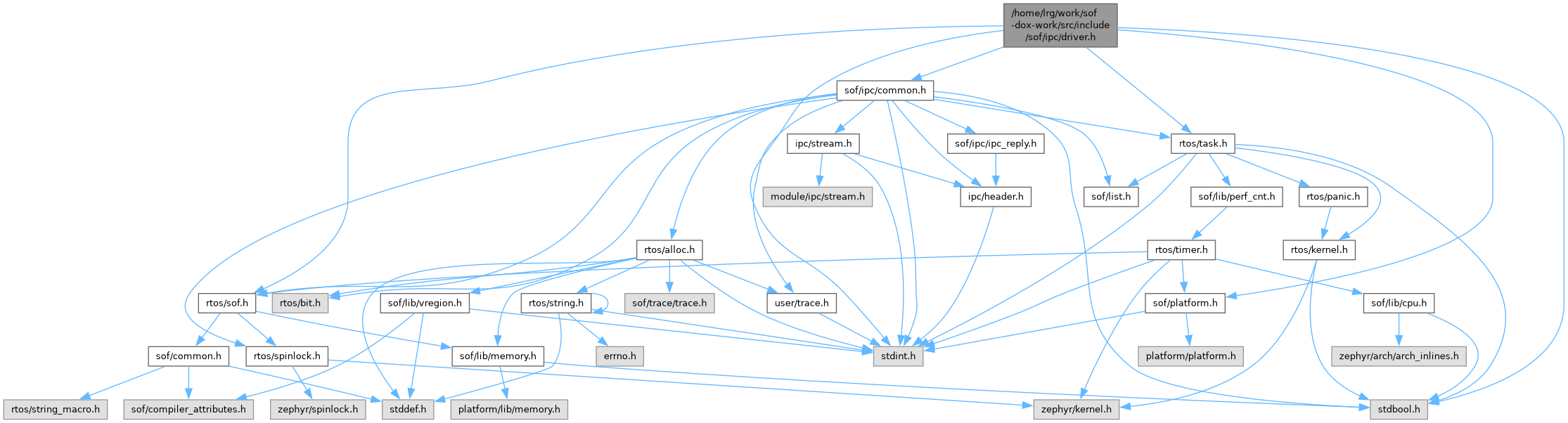

Go to the source code of this file.
Functions | |
| int | platform_ipc_init (struct ipc *ipc) |
| Provides platform specific IPC initialization. | |
| enum task_state | ipc_platform_do_cmd (struct ipc *ipc) |
| Perform IPC command from host. | |
| void | ipc_platform_complete_cmd (struct ipc *ipc) |
| Tell host we have completed the last IPC command. | |
| int | ipc_platform_send_msg (const struct ipc_msg *msg) |
| Send IPC message to host. | |
| void | ipc_platform_send_msg_direct (const struct ipc_msg *msg) |
| Send IPC message to host direct without inserting in msg_list. | |
| struct ipc_data_host_buffer * | ipc_platform_get_host_buffer (struct ipc *ipc) |
| Retrieves the ipc_data_host_buffer allocated by the platform ipc. | |
| int | ipc_platform_compact_read_msg (struct ipc_cmd_hdr *hdr, int words) |
| Read a compact IPC message from hardware. | |
| int | ipc_platform_compact_write_msg (struct ipc_cmd_hdr *hdr, int words) |
| Write a compact IPC message to hardware. | |
| int | ipc_platform_poll_init (void) |
| Initialise IPC hardware for polling mode. | |
| void | ipc_platform_poll_set_cmd_done (void) |
| Tell host DSP has completed command. | |
| int | ipc_platform_poll_is_cmd_pending (void) |
| Check whether there is a new IPC command from host. | |
| int | ipc_platform_poll_is_host_ready (void) |
| Check whether host is ready for new IPC from DSP. | |
| int | ipc_platform_poll_tx_host_msg (struct ipc_msg *msg) |
| Transmit new message to host. | |
| void | ipc_platform_wait_ack (struct ipc *ipc) |
| wait for host acknowledgment to an IPC message | |
Function Documentation
◆ ipc_platform_compact_read_msg()
| int ipc_platform_compact_read_msg | ( | struct ipc_cmd_hdr * | hdr, |
| int | words ) |
Read a compact IPC message from hardware.
- Parameters
-
[in] hdr IPC header data [in] words Number of words to read in header.
- Returns
- Number of word written.
◆ ipc_platform_compact_write_msg()
| int ipc_platform_compact_write_msg | ( | struct ipc_cmd_hdr * | hdr, |
| int | words ) |
Write a compact IPC message to hardware.
- Parameters
-
[in] hdr Compact message header data. [in] words Number of words to be written from header.
- Returns
- Number of word written.
◆ ipc_platform_complete_cmd()
| void ipc_platform_complete_cmd | ( | struct ipc * | ipc | ) |
Tell host we have completed the last IPC command.
◆ ipc_platform_do_cmd()
| enum task_state ipc_platform_do_cmd | ( | struct ipc * | ipc | ) |
Perform IPC command from host.
- Returns
- The task state of the IPC command work.
◆ ipc_platform_get_host_buffer()
| struct ipc_data_host_buffer * ipc_platform_get_host_buffer | ( | struct ipc * | ipc | ) |
Retrieves the ipc_data_host_buffer allocated by the platform ipc.
- Returns
- Pointer to the data.
This function must be implemented by platforms which use ipc...page_descriptors() while processing host page tables.
◆ ipc_platform_poll_init()
| int ipc_platform_poll_init | ( | void | ) |
Initialise IPC hardware for polling mode.
- Returns
- 0 if successful error code otherwise.
◆ ipc_platform_poll_is_cmd_pending()
| int ipc_platform_poll_is_cmd_pending | ( | void | ) |
Check whether there is a new IPC command from host.
- Returns
- 1 if new command is pending from host.
◆ ipc_platform_poll_is_host_ready()
| int ipc_platform_poll_is_host_ready | ( | void | ) |
Check whether host is ready for new IPC from DSP.
- Returns
- 1 if host is ready for a new command from DSP.
◆ ipc_platform_poll_set_cmd_done()
| void ipc_platform_poll_set_cmd_done | ( | void | ) |
Tell host DSP has completed command.
◆ ipc_platform_poll_tx_host_msg()
| int ipc_platform_poll_tx_host_msg | ( | struct ipc_msg * | msg | ) |
Transmit new message to host.
- Returns
- 0 if successful error code otherwise.
◆ ipc_platform_send_msg()
| int ipc_platform_send_msg | ( | const struct ipc_msg * | msg | ) |
Send IPC message to host.
- Parameters
-
msg The IPC message to send to host.
- Returns
- 0 on success.
◆ ipc_platform_send_msg_direct()
| void ipc_platform_send_msg_direct | ( | const struct ipc_msg * | msg | ) |
Send IPC message to host direct without inserting in msg_list.
- Parameters
-
msg The IPC message to send to host.
◆ ipc_platform_wait_ack()
| void ipc_platform_wait_ack | ( | struct ipc * | ipc | ) |
wait for host acknowledgment to an IPC message
◆ platform_ipc_init()
| int platform_ipc_init | ( | struct ipc * | ipc | ) |
Provides platform specific IPC initialization.
- Parameters
-
ipc Global IPC context
- Returns
- 0 if succeeded, error code otherwise.
This function must be implemented by the platform. It is called from the main IPC code, at the end of ipc_init().
If the platform requires any private data to be associated with the IPC context, it may allocate it here and attach to the global context using ipc_set_drvdata(). Other platform specific IPC functions, like ipc_platform_do_cmd(), may obtain it later from the context using ipc_get_drvdata().
