common.h File Reference

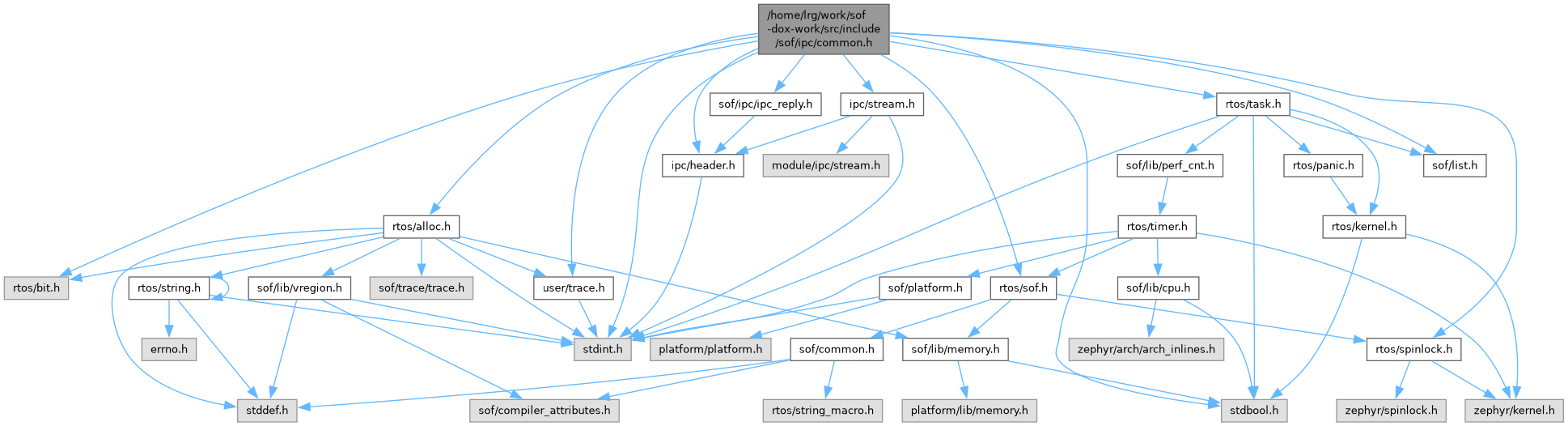

Include dependency graph for common.h:

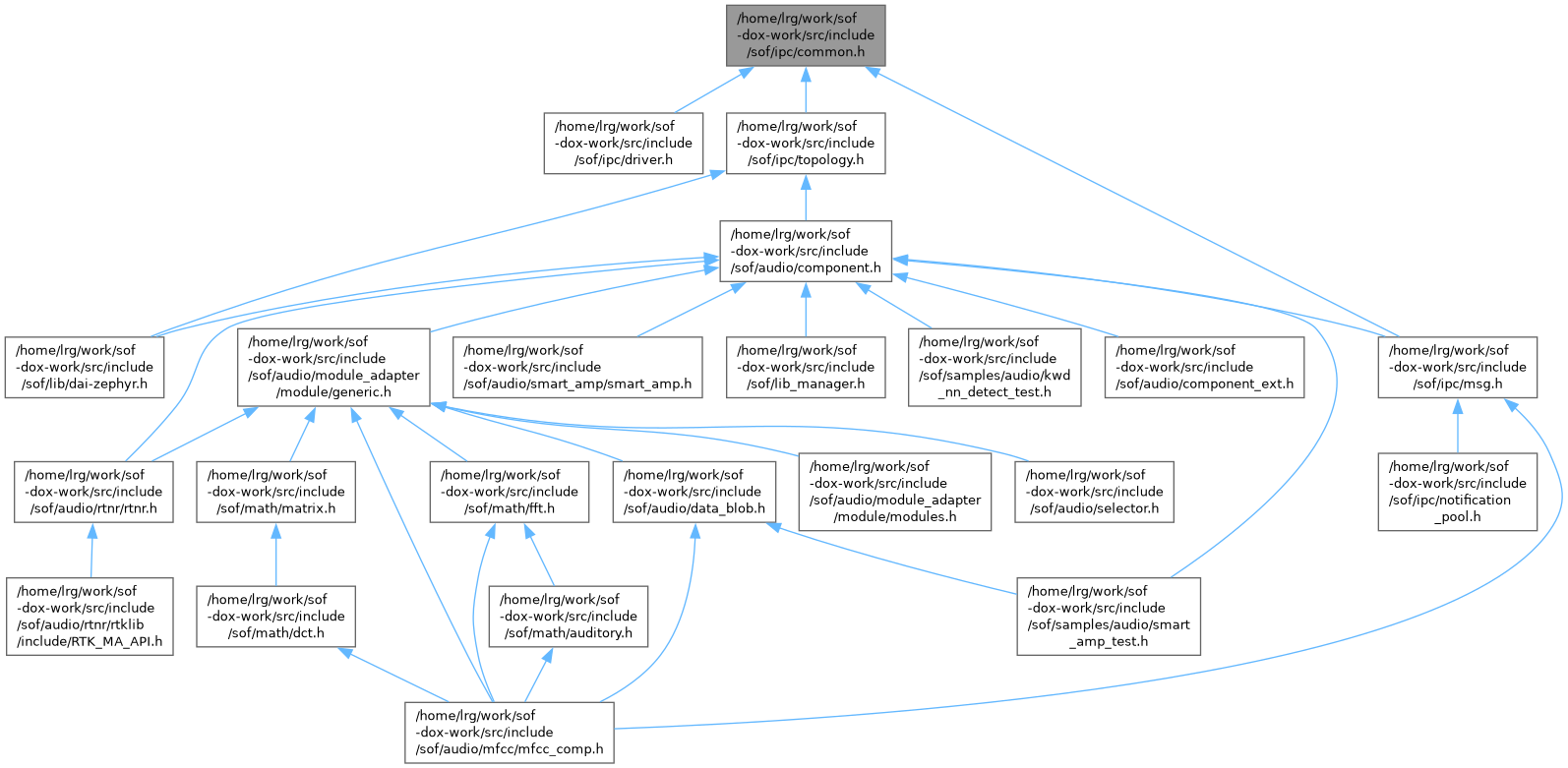

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ipc_user
struct	ipc
struct	ipc_data_host_buffer
	Data provided by the platform which use ipc...page_descriptors(). More...

Macros
#define	IPC_IS_SIZE_INVALID(object)    ((object).hdr.size != sizeof(object))
#define	IPC_TAIL_IS_SIZE_INVALID(object)    ((object).comp.hdr.size + (object).comp.ext_data_length < sizeof(object))
#define	IPC_SIZE_ERROR_TRACE(ctx, object)
#define	ipc_get_ppl_src_comp(ipc, ppl_id)    ipc_get_ppl_comp(ipc, ppl_id, PPL_DIR_UPSTREAM)
#define	ipc_get_ppl_sink_comp(ipc, ppl_id)    ipc_get_ppl_comp(ipc, ppl_id, PPL_DIR_DOWNSTREAM)
#define	IPC_TASK_INLINE   BIT(0)
#define	IPC_TASK_IN_THREAD   BIT(1)
#define	IPC_TASK_SECONDARY_CORE   BIT(2)
#define	IPC_TASK_POWERDOWN   BIT(3)
#define	IPC_DSP_CORE_COUNT   1
#define	ipc_set_drvdata(ipc, data)    ((ipc)->private = data)
#define	ipc_get_drvdata(ipc)    ((ipc)->private)

Functions
static struct ipc *	ipc_get (void)
	Get the IPC global context.
int	ipc_init (struct sof *sof)
	Initialise global IPC context.
void	ipc_free (struct ipc *ipc)
	Free global IPC context.
int	ipc_process_host_buffer (struct ipc *ipc, struct sof_ipc_host_buffer *ring, uint32_t direction, struct dma_sg_elem_array *elem_array, uint32_t *ring_size)
	Processes page tables for the host buffer.
int	ipc_dma_trace_send_position (void)
	Send DMA trace host buffer position to host.
void	ipc_send_buffer_status_notify (void)
	send a IPC buffer status notify message
int	ipc_dai_data_config (struct dai_data *dd, struct comp_dev *dev)
	Configure DAI.
int	ipc4_user_process_module_message (struct ipc4_message_request *ipc4, struct ipc_msg *reply)
	Processes IPC4 userspace module message.
int	ipc4_user_process_glb_message (struct ipc4_message_request *ipc4, struct ipc_msg *reply)
	Processes IPC4 userspace global message.
void	ipc_compound_msg_done (uint32_t msg_id, int error)
	Complete the IPC compound message.
void	ipc_boot_complete_msg (struct ipc_cmd_hdr *header, uint32_t data)
	create a IPC boot complete message.
void	ipc_send_panic_notification (void)
	Send a IPC notification that FW has hit a DSP notification.
struct ipc_cmd_hdr *	ipc_compact_read_msg (void)
	Read a compact IPC message or return NULL for normal message.
int	ipc_compact_write_msg (struct ipc_cmd_hdr *hdr)
	Write a compact IPC message.
struct ipc_cmd_hdr *	ipc_prepare_to_send (const struct ipc_msg *msg)
	Prepare an IPC message for sending.
struct ipc_cmd_hdr *	mailbox_validate (void)
	Validate mailbox contents for valid IPC header.
void	ipc_cmd (struct ipc_cmd_hdr *_hdr)
	Generic IPC command handler.
int	ipc_process_on_core (uint32_t core, bool blocking)
	IPC message to be processed on other core.
void	ipc_complete_cmd (struct ipc *ipc)
	Call platform-specific IPC completion function.
struct k_thread *	ipc_thread_user (unsigned int core)
	get pointer to the userspace IPC thread for core

Variables
struct tr_ctx	ipc_tr
struct task_ops	ipc_task_ops
bool	ipc_enter_gdb

Macro Definition Documentation

IPC_DSP_CORE_COUNT

#define IPC_DSP_CORE_COUNT   1

ipc_get_drvdata

#define ipc_get_drvdata

(

ipc

)

((ipc)->private)

ipc_get_ppl_sink_comp

#define ipc_get_ppl_sink_comp	(		ipc,
			ppl_id
	)		ipc_get_ppl_comp(ipc, ppl_id, PPL_DIR_DOWNSTREAM)

ipc_get_ppl_src_comp

#define ipc_get_ppl_src_comp	(		ipc,
			ppl_id
	)		ipc_get_ppl_comp(ipc, ppl_id, PPL_DIR_UPSTREAM)

IPC_IS_SIZE_INVALID

#define IPC_IS_SIZE_INVALID

(

object

)

((object).hdr.size != sizeof(object))

ipc_set_drvdata

#define ipc_set_drvdata	(		ipc,
			data
	)		((ipc)->private = data)

IPC_SIZE_ERROR_TRACE

#define IPC_SIZE_ERROR_TRACE	(		ctx,
			object
	)

Value:

    tr_err(ctx, "ipc: size %d expected %zu",    \
           (object).hdr.size, sizeof(object))

IPC_TAIL_IS_SIZE_INVALID

#define IPC_TAIL_IS_SIZE_INVALID

(

object

)

((object).comp.hdr.size + (object).comp.ext_data_length < sizeof(object))

IPC_TASK_IN_THREAD

#define IPC_TASK_IN_THREAD   BIT(1)

IPC_TASK_INLINE

#define IPC_TASK_INLINE   BIT(0)

IPC_TASK_POWERDOWN

#define IPC_TASK_POWERDOWN   BIT(3)

IPC_TASK_SECONDARY_CORE

#define IPC_TASK_SECONDARY_CORE   BIT(2)

Function Documentation

ipc4_user_process_glb_message()

int ipc4_user_process_glb_message	(	struct ipc4_message_request *	ipc4,
		struct ipc_msg *	reply
	)

Processes IPC4 userspace global message.

Parameters

[in]	ipc4	IPC4 message request.
[in]	reply	IPC message reply structure.

Returns

IPC4_SUCCESS on success, error code otherwise.

ipc4_user_process_module_message()

int ipc4_user_process_module_message	(	struct ipc4_message_request *	ipc4,
		struct ipc_msg *	reply
	)

Processes IPC4 userspace module message.

Parameters

[in]	ipc4	IPC4 message request.
[in]	reply	IPC message reply structure.

Returns

IPC4_SUCCESS on success, error code otherwise.

ipc_boot_complete_msg()

void ipc_boot_complete_msg	(	struct ipc_cmd_hdr *	header,
		uint32_t	data
	)

create a IPC boot complete message.

Parameters

[in]	header	header.
[in]	data	data.

ipc_cmd()

void ipc_cmd

(

struct ipc_cmd_hdr *

_hdr

)

Generic IPC command handler.

Expects that IPC command (the header plus any optional payload) is deserialized from the IPC HW by the platform specific method.

Parameters

_hdr	Points to the IPC command header.

ipc_compact_read_msg()

struct ipc_cmd_hdr * ipc_compact_read_msg

(

void

)

Read a compact IPC message or return NULL for normal message.

Returns

Pointer to the compact message data.

ipc_compact_write_msg()

int ipc_compact_write_msg

(

struct ipc_cmd_hdr *

hdr

)

Write a compact IPC message.

Parameters

[in]

hdr

Compact message header data.

Returns

Number of words written.

ipc_complete_cmd()

void ipc_complete_cmd

(

struct ipc *

ipc

)

Call platform-specific IPC completion function.

ipc_compound_msg_done()

void ipc_compound_msg_done	(	uint32_t	msg_id,
		int	error
	)

Complete the IPC compound message.

Parameters

[in]	msg_id	IPC message ID.
[in]	error	Error code of the IPC command.

ipc_dai_data_config()

int ipc_dai_data_config	(	struct dai_data *	dd,
		struct comp_dev *	dev
	)

Configure DAI.

Returns

0 on success.

ipc_dma_trace_send_position()

int ipc_dma_trace_send_position

(

void

)

Send DMA trace host buffer position to host.

Returns

0 on success.

ipc_free()

void ipc_free

(

struct ipc *

ipc

)

Free global IPC context.

Parameters

[in]

ipc

Global IPC context.

ipc_get()

static struct ipc * ipc_get ( void  )

inlinestatic

Get the IPC global context.

Returns

The global IPC context.

ipc_init()

int ipc_init

(

struct sof *

sof

)

Initialise global IPC context.

Parameters

[in,out]

sof

Global SOF context.

Returns

0 on success.

ipc_prepare_to_send()

struct ipc_cmd_hdr * ipc_prepare_to_send

(

const struct ipc_msg *

msg

)

Prepare an IPC message for sending.

Parameters

[in]

msg

The ipc msg.

Returns

pointer to raw header or NULL.

ipc_process_host_buffer()

int ipc_process_host_buffer	(	struct ipc *	ipc,
		struct sof_ipc_host_buffer *	ring,
		uint32_t	direction,
		struct dma_sg_elem_array *	elem_array,
		uint32_t *	ring_size
	)

Processes page tables for the host buffer.

Parameters

[in]	ipc	Ipc
[in]	ring	Ring description sent via Ipc
[in]	direction	Direction (playback/capture)
[out]	elem_array	Array of SG elements
[out]	ring_size	Size of the ring

Returns

Status, 0 if successful, error code otherwise.

ipc_process_on_core()

int ipc_process_on_core	(	uint32_t	core,
		bool	blocking
	)

IPC message to be processed on other core.

Parameters

[in]	core	Core id for IPC to be processed on.
[in]	blocking	Process in blocking mode: wait for completion.

Returns

1 if successful (reply sent by other core), error code otherwise.

ipc_send_buffer_status_notify()

void ipc_send_buffer_status_notify

(

void

)

send a IPC buffer status notify message

ipc_send_panic_notification()

void ipc_send_panic_notification

(

void

)

Send a IPC notification that FW has hit a DSP notification.

ipc_thread_user()

struct k_thread * ipc_thread_user

(

unsigned int

core

)

get pointer to the userspace IPC thread for core

mailbox_validate()

struct ipc_cmd_hdr * mailbox_validate

(

void

)

Validate mailbox contents for valid IPC header.

Returns

pointer to header if valid or NULL.

Variable Documentation

ipc_enter_gdb

bool ipc_enter_gdb

extern

ipc_task_ops

struct task_ops ipc_task_ops

extern

ipc_tr

struct tr_ctx ipc_tr

extern
