#include <src/include/sof/ipc/common.h>

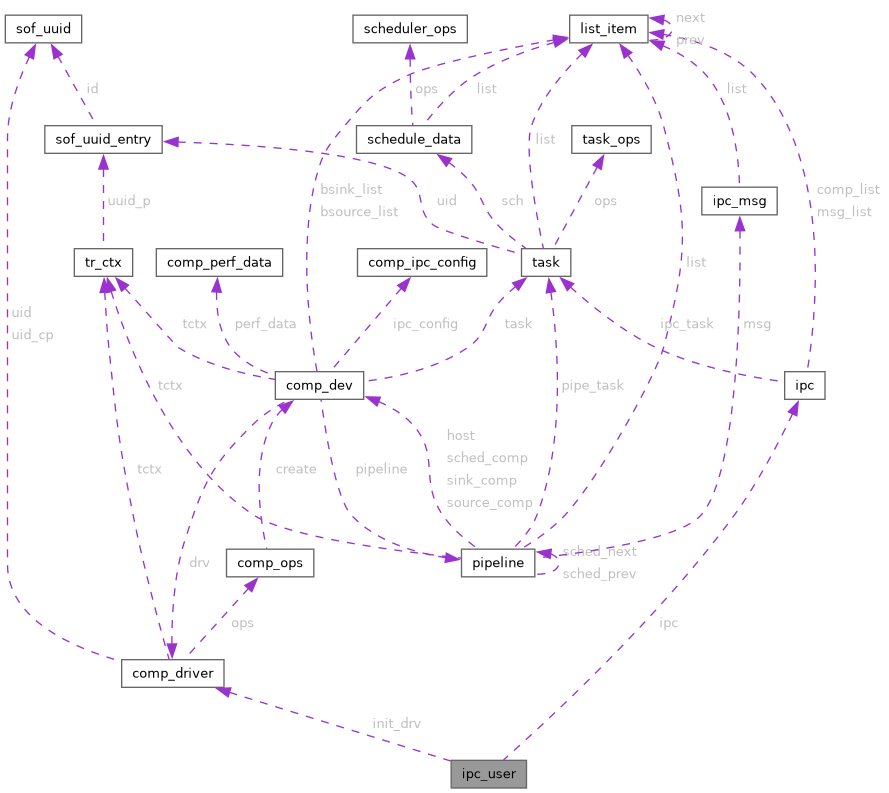

Collaboration diagram for ipc_user:

[legend]

Data Fields
struct k_thread *	thread [IPC_DSP_CORE_COUNT]

struct k_sem *	sem

struct k_event *	event [IPC_DSP_CORE_COUNT]

uint32_t	ipc_msg_pri
	Copy of IPC4 message primary word forwarded to user thread.

uint32_t	ipc_msg_ext
	Copy of IPC4 message extension word forwarded to user thread.

int	result
	Result code from user thread processing.

uint32_t	reply_ext
	Reply extension word from user thread (e.g.

uint32_t	reply_tx_size
	Reply TX data size from user thread (e.g.

void *	reply_tx_data
	Reply TX data pointer from user thread (e.g.

struct ipc *	ipc

struct k_thread *	audio_thread [IPC_DSP_CORE_COUNT]

const struct comp_driver *	init_drv
	Original kernel driver pointer for restoring dev->drv after create.

bool	init_needed [IPC_DSP_CORE_COUNT]

uint8_t	init_drv_data [160]
	User-accessible copy of comp_driver + tr_ctx for create().

Field Documentation

◆ audio_thread

struct k_thread* ipc_user::audio_thread[IPC_DSP_CORE_COUNT]

◆ event

struct k_event* ipc_user::event[IPC_DSP_CORE_COUNT]

◆ init_drv

const struct comp_driver* ipc_user::init_drv

Original kernel driver pointer for restoring dev->drv after create.

◆ init_drv_data

uint8_t ipc_user::init_drv_data[160]

User-accessible copy of comp_driver + tr_ctx for create().

The comp_driver and tr_ctx structs reside in kernel memory (.rodata/.data) which is not user-readable. The kernel handler copies them here before forwarding to the user thread. Size verified by BUILD_ASSERT in handler-user.c.

◆ init_needed

bool ipc_user::init_needed[IPC_DSP_CORE_COUNT]

◆ ipc

struct ipc* ipc_user::ipc

◆ ipc_msg_ext

uint32_t ipc_user::ipc_msg_ext

Copy of IPC4 message extension word forwarded to user thread.

◆ ipc_msg_pri

uint32_t ipc_user::ipc_msg_pri

Copy of IPC4 message primary word forwarded to user thread.

◆ reply_ext

uint32_t ipc_user::reply_ext

Reply extension word from user thread (e.g.

CONFIG_GET result)

◆ reply_tx_data

void* ipc_user::reply_tx_data

Reply TX data pointer from user thread (e.g.

LARGE_CONFIG_GET result)

◆ reply_tx_size

uint32_t ipc_user::reply_tx_size

Reply TX data size from user thread (e.g.

LARGE_CONFIG_GET result)

◆ result

int ipc_user::result

Result code from user thread processing.

◆ sem

struct k_sem* ipc_user::sem

◆ thread

struct k_thread* ipc_user::thread[IPC_DSP_CORE_COUNT]

The documentation for this struct was generated from the following file:

src/include/sof/ipc/common.h
