Include dependency graph for topology.h:

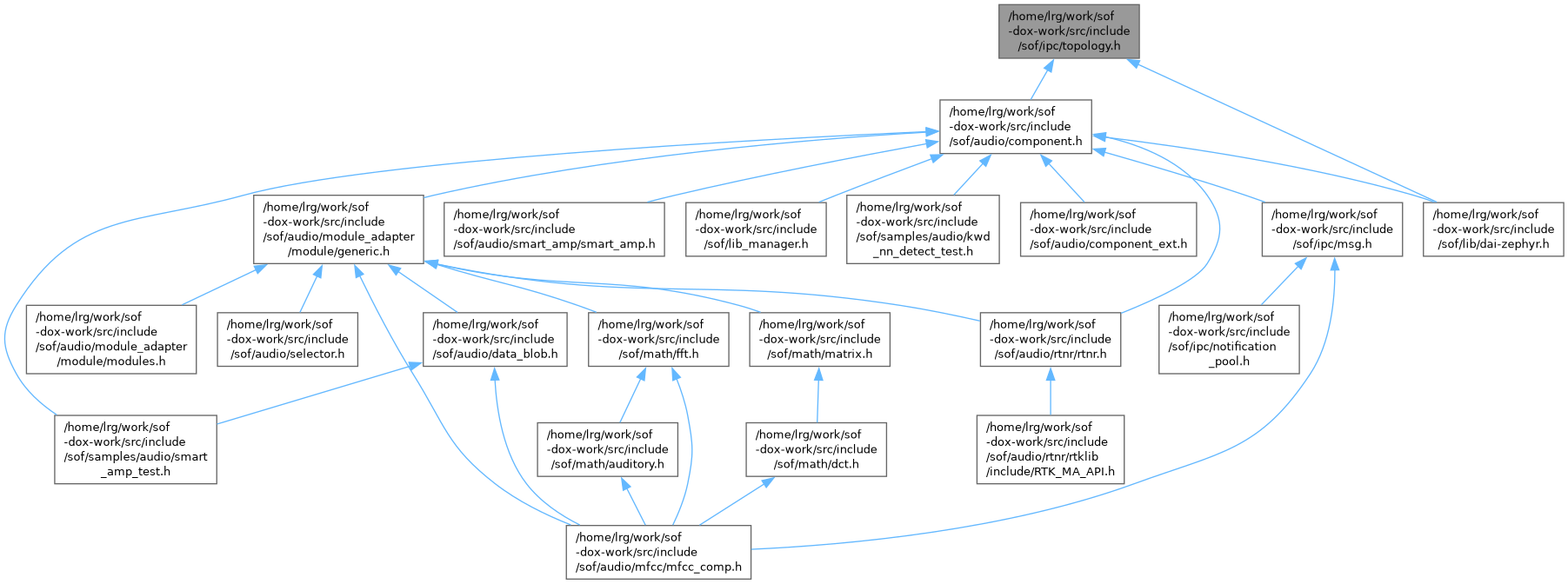

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ipc_comp_dev

Macros
#define	ipc_to_pipe_new(x)
#define	ipc_to_pipe_connect(x)
#define	ipc_to_comp_new(x)
#define	COMP_TYPE_ANY 0
#define	COMP_TYPE_COMPONENT 1
#define	COMP_TYPE_BUFFER 2
#define	COMP_TYPE_PIPELINE 3
#define	IPC_COMP_ALL 0
#define	IPC_COMP_IGNORE_REMOTE 1
#define	ipc_get_comp_by_id(ipc, comp_id)
#define	ipc_get_pipeline_by_id(ipc, ppln_id)
#define	ipc_get_buffer_by_id(ipc, buf_id)

Typedefs
typedef uint32_t	ipc_pipe_new
typedef uint32_t	ipc_pipe_comp_connect
typedef uint32_t	ipc_comp

Functions
int	ipc_comp_new (struct ipc ipc, ipc_comp new)
	Create a new IPC component.
int	ipc_comp_free (struct ipc *ipc, uint32_t comp_id)
	Free an IPC component.
int	ipc_buffer_new (struct ipc ipc, const struct sof_ipc_buffer buffer)
	Create a new IPC buffer.
int	ipc_buffer_free (struct ipc *ipc, uint32_t buffer_id)
	Free an IPC buffer.
int	ipc_pipeline_new (struct ipc ipc, ipc_pipe_new pipeline)
	Create a new IPC pipeline.
int	ipc_pipeline_free (struct ipc *ipc, uint32_t comp_id)
	Free an IPC pipeline.
int	ipc_pipeline_complete (struct ipc *ipc, uint32_t comp_id)
	Complete an IPC pipeline.
int	ipc_comp_connect (struct ipc ipc, ipc_pipe_comp_connect connect)
	Connect components together on a pipeline.
int	ipc_comp_disconnect (struct ipc ipc, ipc_pipe_comp_connect connect)
	Disconnect components in a pipeline.
struct ipc_comp_dev *	ipc_get_comp_dev (struct ipc *ipc, uint16_t type, uint32_t id)
	Get component device from component type and ID.
struct ipc_comp_dev *	ipc_get_comp_by_ppl_id (struct ipc *ipc, uint16_t type, uint32_t ppl_id, uint32_t ignore_remote)
	Get component device from pipeline ID and type.
struct ipc_comp_dev *	ipc_get_ppl_comp (struct ipc *ipc, uint32_t pipeline_id, int dir)
	Get buffer device from pipeline ID.
int32_t	ipc_comp_pipe_id (const struct ipc_comp_dev *icd)
	Get pipeline ID from component.
int	ipc_comp_dai_config (struct ipc ipc, struct ipc_config_dai common_config, void *spec_config)
	Configure all DAI components attached to DAI.
int	comp_verify_params (struct comp_dev dev, uint32_t flag, struct sof_ipc_stream_params params)
int	comp_buffer_connect (struct comp_dev comp, uint32_t comp_core, struct comp_buffer buffer, uint32_t dir)
	connect component and buffer

Macro Definition Documentation

◆ COMP_TYPE_ANY

#define COMP_TYPE_ANY 0

◆ COMP_TYPE_BUFFER

#define COMP_TYPE_BUFFER 2

◆ COMP_TYPE_COMPONENT

#define COMP_TYPE_COMPONENT 1

◆ COMP_TYPE_PIPELINE

#define COMP_TYPE_PIPELINE 3

◆ IPC_COMP_ALL

#define IPC_COMP_ALL 0

◆ IPC_COMP_IGNORE_REMOTE

#define IPC_COMP_IGNORE_REMOTE 1

◆ ipc_get_buffer_by_id

#define ipc_get_buffer_by_id	(		ipc,
			buf_id )

Value:

ipc_get_comp_dev(ipc, COMP_TYPE_BUFFER, buf_id)

COMP_TYPE_BUFFER

#define COMP_TYPE_BUFFER

Definition topology.h:86

ipc_get_comp_dev

struct ipc_comp_dev * ipc_get_comp_dev(struct ipc *ipc, uint16_t type, uint32_t id)

Get component device from component type and ID.

ipc

Definition common.h:90

◆ ipc_get_comp_by_id

#define ipc_get_comp_by_id	(		ipc,
			comp_id )

Value:

ipc_get_comp_dev(ipc, COMP_TYPE_COMPONENT, comp_id)

COMP_TYPE_COMPONENT

#define COMP_TYPE_COMPONENT

Definition topology.h:85

◆ ipc_get_pipeline_by_id

#define ipc_get_pipeline_by_id	(		ipc,
			ppln_id )

Value:

ipc_get_comp_dev(ipc, COMP_TYPE_PIPELINE, ppln_id)

COMP_TYPE_PIPELINE

#define COMP_TYPE_PIPELINE

Definition topology.h:87

◆ ipc_to_comp_new

#define ipc_to_comp_new ( x )

Value:

((ipc_comp *)x)

ipc_comp

uint32_t ipc_comp

Definition topology.h:30

◆ ipc_to_pipe_connect

#define ipc_to_pipe_connect ( x )

Value:

((ipc_pipe_comp_connect *)x)

ipc_pipe_comp_connect

uint32_t ipc_pipe_comp_connect

Definition topology.h:29

◆ ipc_to_pipe_new

#define ipc_to_pipe_new ( x )

Value:

((ipc_pipe_new *)x)

ipc_pipe_new

uint32_t ipc_pipe_new

Definition topology.h:28

Typedef Documentation

◆ ipc_comp

typedef uint32_t ipc_comp

◆ ipc_pipe_comp_connect

typedef uint32_t ipc_pipe_comp_connect

◆ ipc_pipe_new

typedef uint32_t ipc_pipe_new

Function Documentation

◆ comp_buffer_connect()

int comp_buffer_connect	(	struct comp_dev *	comp,
		uint32_t	comp_core,
		struct comp_buffer *	buffer,
		uint32_t	dir )

connect component and buffer

Parameters

comp	Component dev
comp_core	comp core id
buffer	Component buffer
dir	connection direction

Returns: connection status

◆ comp_verify_params()

int comp_verify_params	(	struct comp_dev *	dev,
		uint32_t	flag,
		struct sof_ipc_stream_params *	params )

◆ ipc_buffer_free()

int ipc_buffer_free	(	struct ipc *	ipc,
		uint32_t	buffer_id )

Free an IPC buffer.

Parameters

ipc	The global IPC context.
buffer_id	buffer ID to free.

Returns: 0 on success or negative error.

◆ ipc_buffer_new()

int ipc_buffer_new	(	struct ipc *	ipc,
		const struct sof_ipc_buffer *	buffer )

Create a new IPC buffer.

Parameters

ipc	The global IPC context.
buffer	New IPC buffer descriptor.

Returns: 0 on success or negative error.

◆ ipc_comp_connect()

int ipc_comp_connect	(	struct ipc *	ipc,
		ipc_pipe_comp_connect *	connect )

Connect components together on a pipeline.

Parameters

ipc	The global IPC context.
connect	Components to connect together.

Returns: 0 on success or negative error.

◆ ipc_comp_dai_config()

int ipc_comp_dai_config	(	struct ipc *	ipc,
		struct ipc_config_dai *	common_config,
		void *	spec_config )

Configure all DAI components attached to DAI.

Parameters

ipc	Global IPC context.
common_config	Common DAI configuration.
spec_config	Specific DAI configuration.

Returns: 0 on success or negative error.

◆ ipc_comp_disconnect()

int ipc_comp_disconnect	(	struct ipc *	ipc,
		ipc_pipe_comp_connect *	connect )

Disconnect components in a pipeline.

Parameters

ipc	The global IPC context.
connect	Components.

Returns: 0 on success or negative error.

◆ ipc_comp_free()

int ipc_comp_free	(	struct ipc *	ipc,
		uint32_t	comp_id )

Free an IPC component.

Parameters

ipc	The global IPC context.
comp_id	Component ID to free.

Returns: 0 on success or negative error.

◆ ipc_comp_new()

int ipc_comp_new	(	struct ipc *	ipc,
		ipc_comp *	new )

Create a new IPC component.

Parameters

ipc	The global IPC context.
new	New IPC component descriptor.

Returns: 0 on success or negative error.

◆ ipc_comp_pipe_id()

int32_t ipc_comp_pipe_id ( const struct ipc_comp_dev * icd )

Get pipeline ID from component.

Parameters

icd	The component device.

Returns: Pipeline ID or negative error.

◆ ipc_get_comp_by_ppl_id()

struct ipc_comp_dev * ipc_get_comp_by_ppl_id	(	struct ipc *	ipc,
		uint16_t	type,
		uint32_t	ppl_id,
		uint32_t	ignore_remote )

Get component device from pipeline ID and type.

Parameters

ipc	The global IPC context.
type	The component type.
ppl_id	The pipeline ID.
ignore_remote	Omit component from different core if set to IPC_COMP_IGNORE_REMOTE

Returns: component device or NULL.

◆ ipc_get_comp_dev()

struct ipc_comp_dev * ipc_get_comp_dev	(	struct ipc *	ipc,
		uint16_t	type,
		uint32_t	id )

Get component device from component type and ID.

Parameters

ipc	The global IPC context.
type	The component type
id	The component ID.

Returns: Component device or NULL.

◆ ipc_get_ppl_comp()

struct ipc_comp_dev * ipc_get_ppl_comp	(	struct ipc *	ipc,
		uint32_t	pipeline_id,
		int	dir )

Get buffer device from pipeline ID.

Parameters

ipc	The global IPC context.
pipeline_id	The pipeline ID.
dir	Pipeline stream direction.

Returns: Pipeline device or NULL.

◆ ipc_pipeline_complete()

int ipc_pipeline_complete	(	struct ipc *	ipc,
		uint32_t	comp_id )

Complete an IPC pipeline.

Parameters

ipc	The global IPC context.
comp_id	Pipeline ID to complete.

Returns: 0 on success or negative error.

◆ ipc_pipeline_free()

int ipc_pipeline_free	(	struct ipc *	ipc,
		uint32_t	comp_id )

Free an IPC pipeline.

Parameters

ipc	The global IPC context.
comp_id	Pipeline ID to free.

Returns: 0 on success or negative error.

◆ ipc_pipeline_new()

int ipc_pipeline_new	(	struct ipc *	ipc,
		ipc_pipe_new *	pipeline )

Create a new IPC pipeline.

Parameters

ipc	The global IPC context.
pipeline	New IPC pipeline descriptor.

Returns: 0 on success or negative error.
